Part Number # GMA-200-R
SKU # 2302092
Image Disclaimers Message
Brand: Bussmann
GMA-200-R

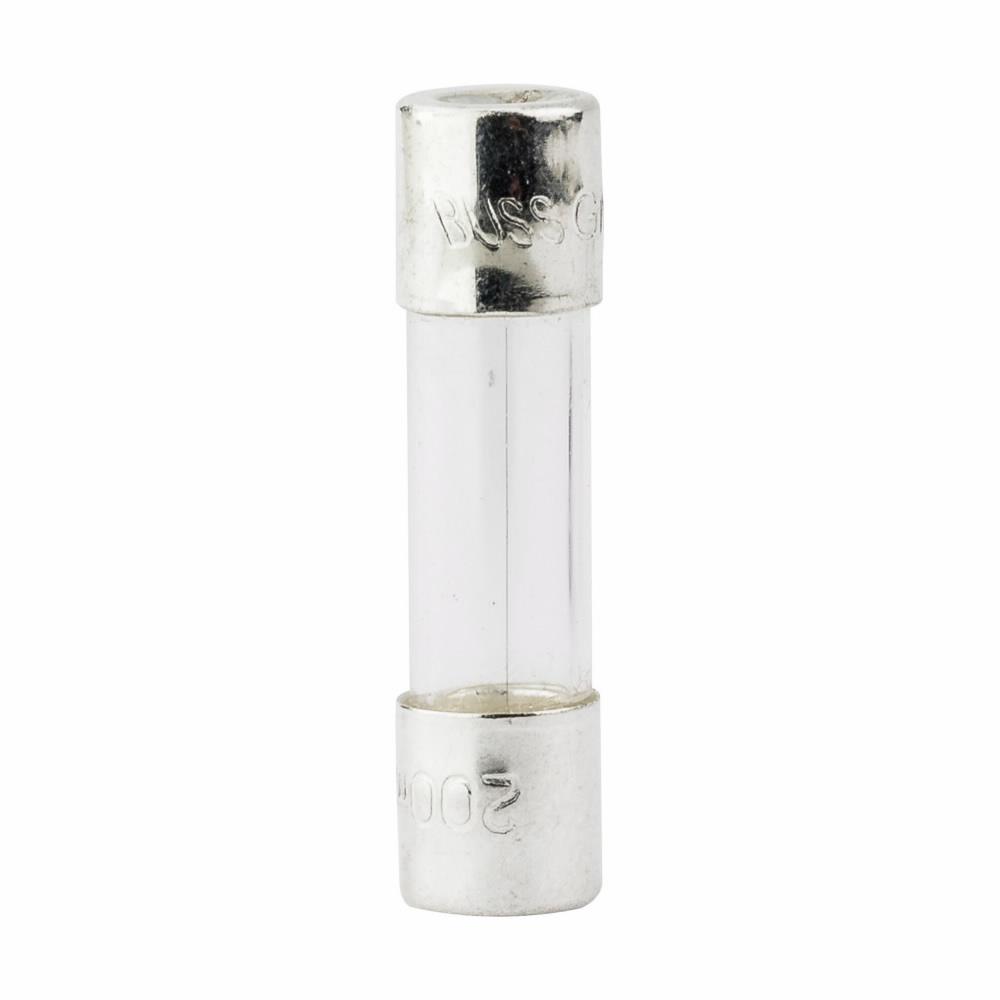

Bussmann GMA-200-R Fast Acting Fuse
Part Number # GMA-200-R
SKU # 2302092
$10.86 / 5Each
Typical price:$22.10 / Each
Bussmann GMA-200-R Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | GMA-200-R |
| SKU #: | 2302092 |
| Amperage Rating: | 200, 200 mA |
| Body Type: | Cylindrical |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 35 A, 10 kA |
| Rejection/Non-Rejection: | Non-Rejection |
| Response Time: | 60 min, 2 min |
| Series: | GMA |
| Terminal Type: | Ferrule |
| Type: | Low Breaking Small Dimension |
| Country of origin: | CN |
| Material: | Glass |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121607 |
| UPC: | 00051712647908 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$10.86 / 5Each
Typical price:$22.10 / Each
Quantity:
- Bussmann Fast Acting Fuse, Low Breaking Small Dimension, Series: GMA, Non-Indicating, Non-Rejection, 200 mA, 250 V AC, 35 A, 10 kA Interrupt, 60 min, 2 min Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Glass, 5.2 mm Dia x 20 mm L Body
GMA-200-R Application
Electronic CircuitsGMA-200-R Item Features
- Fast acting for maximum component protection
- 35 A at 250 VAC, 10 kA at 125 VAC interrupt rating
- 60 min maximum at 135%, 2 min maximum at 200% response time
- https://www.youtube.com/watch?v=YMvqUyoETXk
GMA-200-R Standards
RoHS Compliant|UL Listed|UL 248-14, Guide JDYX|UL File No. E19180|CSA Certified|CSA Class 1422-01,File 53787|PSE ApprovalSKU #2302092Part Number #GMA-200-RUNSPSC39121607UPC00051712647908
