Part Number # GMA-500-R
SKU # 2273868
GMA-500-R

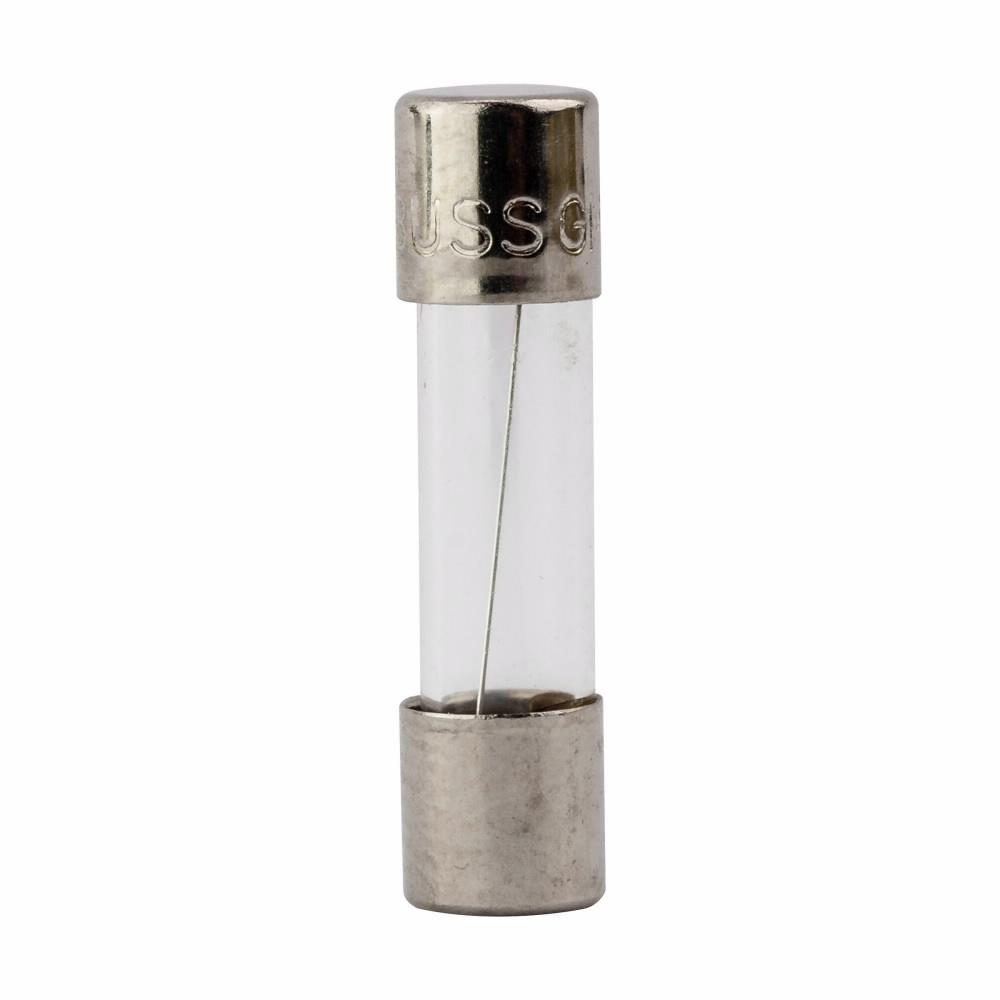

Bussmann GMA-500-R Fast Acting Fuse
Part Number # GMA-500-R
SKU # 2273868
Bussmann GMA-500-R Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | GMA-500-R |
| SKU #: | 2273868 |
| UNSPSC: | 39121607 |
| UPC: | 00051712647991 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann GMA-500-R Fast Acting Fuse
Brand: Bussmann
Part Number: GMA-500-R
Bussmann Fast Acting Fuse, Low Breaking Small Dimension, Series: GMA, Non-Indicating, Non-Rejection, 500 mA, 250 VAC, 35 A, 10 kA Interrupt, 60 min, 2 min Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Glass, 5 mm Dia x 20 mm L Body
Additional Description: BUSS-GMA-500-R GMA 500mA BUSS FUSE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: 500MA 250V 5mm x 20mm RoHS Compliant Glass, Fast Acting Fuse
GMA-500-R Application
Electronic CircuitsGMA-500-R Item Features
- Fast acting for maximum component protection
- 35 A at 250 VAC, 10 kA at 125 VAC interrupt rating
- 60 min maximum at 135%, 2 min maximum at 200% response time
- https://www.youtube.com/watch?v=YMvqUyoETXk
GMA-500-R Standards
RoHS Compliant|UL Listed|UL 248-14, Guide JDYX|UL File No. E19180|CSA Certified|CSA Class 1422-01, File 53787|PSE ApprovalSKU #2273868Part Number #GMA-500-RUNSPSC39121607UPC00051712647991
Image provided may only be a representation of final product and may include optional equipment
