Part Number # GMD-4-R
SKU # 2226322
Image Disclaimers Message
Brand: Bussmann
GMD-4-R

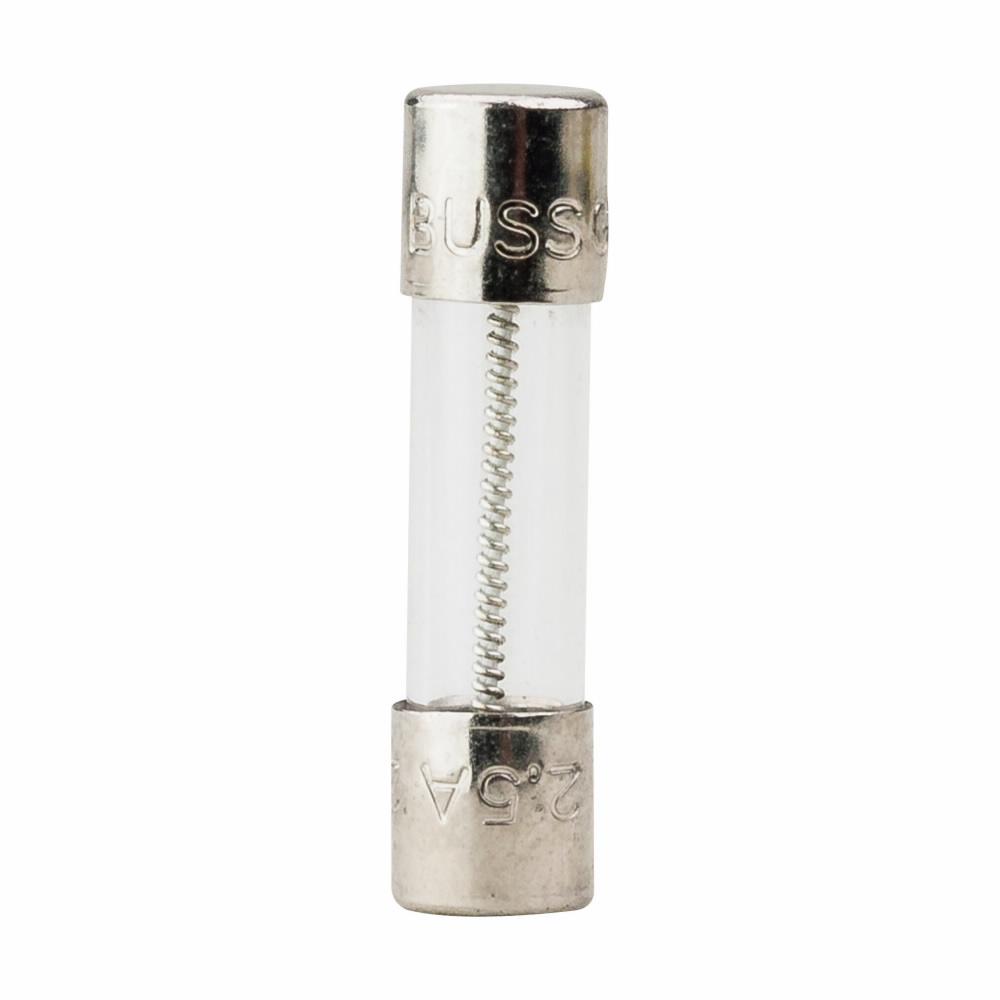

Bussmann GMD-4-R Time Delay Fuse
Part Number # GMD-4-R
SKU # 2226322
$17.71 / 5Each
Typical price:$26.05 / Each
Bussmann GMD-4-R Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | GMD-4-R |
| SKU #: | 2226322 |
| Amperage Rating: | 4, 4 A |
| Body Type: | Cylindrical |
| Frequency Rating: | 50, 50 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200 A/10 kA |
| Rejection/Non-Rejection: | Non-Rejection |
| Response Time: | 60 min, 2 min, 5 s |
| Series: | GMD |
| Terminal Type: | Ferrule |
| Type: | Low Breaking Small Dimension |
| Country of origin: | CN |
| Material: | Glass |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121607 |
| UPC: | 00051712657938 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$17.71 / 5Each
Typical price:$26.05 / Each
Quantity:
- Bussmann Time Delay Fuse, Low Breaking Small Dimension, Series: GMD, Non-Indicating, Non-Rejection, 4 A, 250 V AC, 200 A/10 kA Interrupt, 50 Hz Frequency, 60 min, 2 min, 5 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Glass, 5.2 mm Dia x 20 mm L Body
GMD-4-R Application
Electronic Circuit ApplicationsGMD-4-R Item Features
- Time delay compatibility for inductive circuits
- 200 A at 250 VAC, 10 kA at 125 VAC interrupt rating
- 60 min maximum at 135%, 2 min minimum at 200%, 5 sec maximum at 200% response time
- https://www.youtube.com/watch?v=YMvqUyoETXk
GMD-4-R Standards
RoHS Compliant|CSA Certified|CSA Class 1422-01 File No. 53787, 0-4A, PSE/JET File No. 1641-31003-1001|UL Recognized|UL 248-14, Guide JDYX2|UL File No. E19180|CE CertifiedSKU #2226322Part Number #GMD-4-RUNSPSC39121607UPC00051712657938
