HM25030-2SR

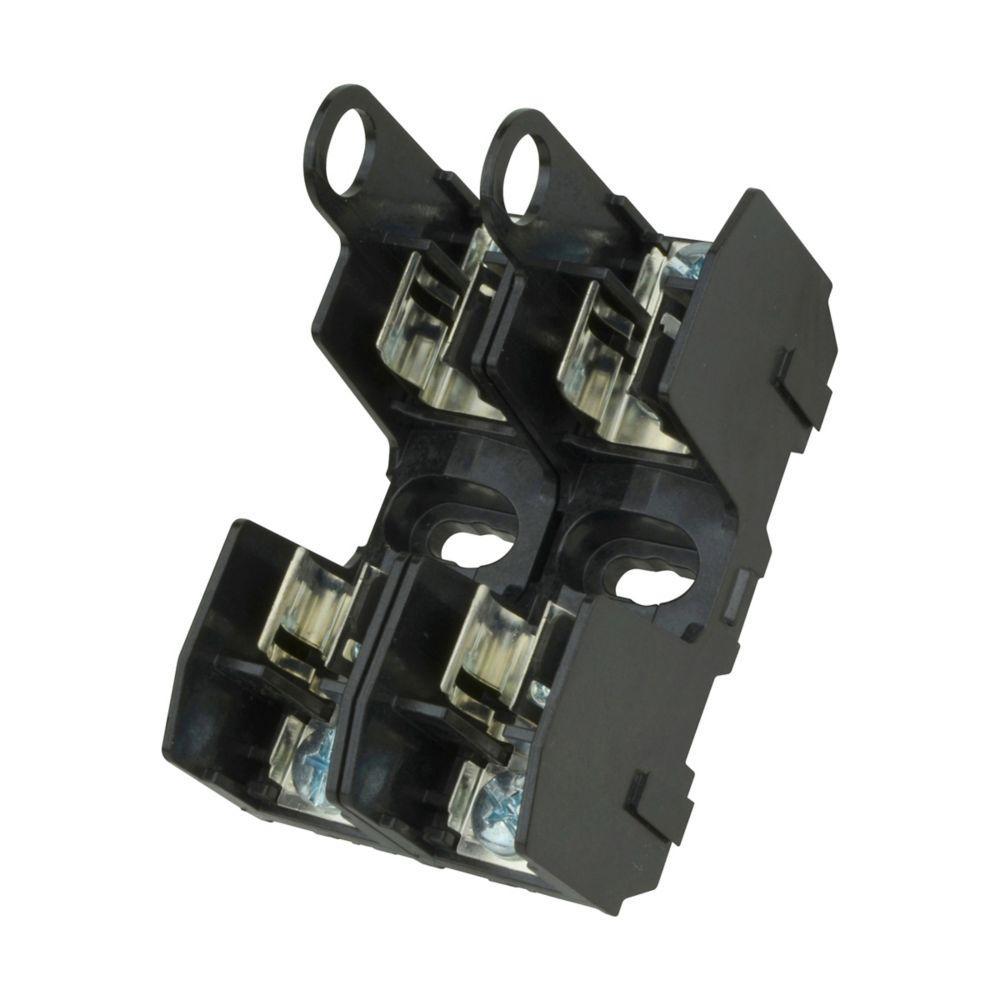

Bussmann HM25030-2SR Fuse Block
Part Number # HM25030-2SR
SKU # 2376659
$243.84 / 6Each
Typical price:$495.90 / Each
Bussmann HM25030-2SR Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | HM25030-2SR |
| SKU #: | 2376659 |
| Amperage Rating: | 0 to 30 A |
| Class: | H/K |
| Dimensions: | 3.2 in L x 2 in W x 1.4 in H |
| Fuse Diameter: | 0.56 in |
| Fuse Length: | 2 in |
| Number of Poles: | 2 |
| Series: | HM Series |
| Suitable For Use With: | NON Series Fuse |
| Temperature Rating (Degrees F): | -40 to 120 deg C |
| Type: | Modular |
| Wire Size: | 18 to 10 AWG |
| Connection type: | Phillips Slot Screw, Phillips® Slot Screw |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Mounting type: | DIN Rail/Panel |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712512725 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$243.84 / 6Each
Typical price:$495.90 / Each
Quantity:
- Bussmann Fuse Block, Modular, Series: HM Series, 250 V, 0 to 30 A, 2 Pole, Class: H/K, Fuse Holder Code: H, Phillips Slot Screw, 18 to 10 AWG Wire, DIN Rail/Panel Mount, 2 in Fuse Length, 0.56 in Fuse Dia, -40 to 120 deg C, For Use With: NON Series Fuse, Thermoplastic, 3.2 in L x 2 in W x 1.4 in H
HM25030-2SR Application
Electrical Assemblies, Panels and EOEMs ApplicationsHM25030-2SR Item Features
- To reduce inventory, assembly time and labor, modular 1-pole blocks snap together for toolless assembly of multiple poles at point of use
- DIN rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost
- Save panel space with the smallest width dimension on the market
- Easy circuit identification with available universal marker labels for blocks and covers
- 18 to 10 AWG copper wire
- https://www.youtube.com/watch?v=YMvqUyoETXk
HM25030-2SR Standards
CE Certified|CSA File No.47235-6225-01|RoHS Compliant|UL File No.E1485 Guide IZLTSKU #2376659Part Number #HM25030-2SRUNSPSC39121629UPC00051712512725
