Brand: Bussmann

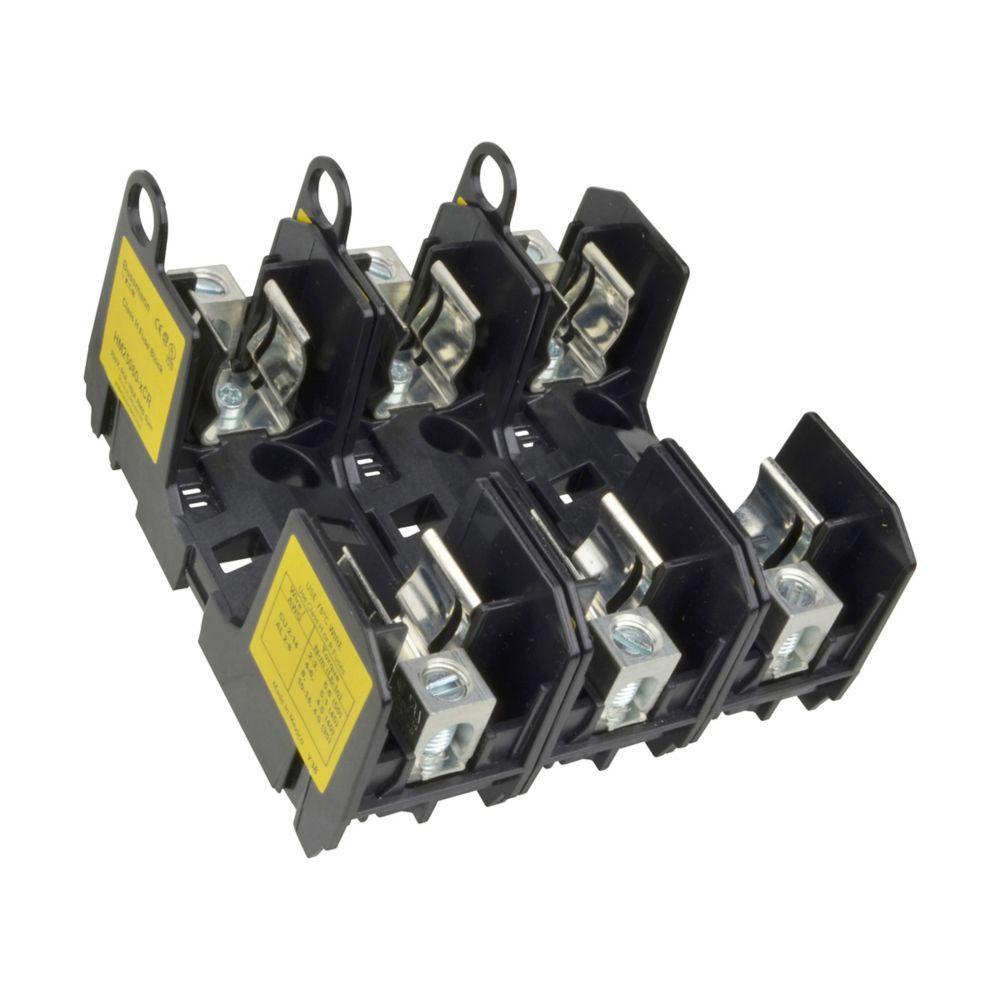

Bussmann HM25060-3CR Fuse Block
Image Disclaimers Message
Brand: Bussmann
Bussmann HM25060-3CR Fuse Block
Brand: Bussmann
Bussmann HM25060-3CR Fuse Block
Part #:HM25060-3CR
SKU #: 2358747
$512.24/4EA
Key Features
Part #:HM25060-3CR
SKU #: 2358747
Brand: Bussmann
Amperage Rating: 31 to 60, 35 to 60 A
Class: H, H/K
Dimensions: 4.2 in L x 4 in H
Number of Poles: 3
Series: HM Series
$512.24/4EA
- To reduce inventory, assembly time and labor, modular 1-pole blocks snap together for toolless assembly of multiple poles at point of use
- DIN rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost
- Save panel space with the smallest width dimension on the market
- Easy circuit identification with available universal marker labels for blocks and covers
- https://www.youtube.com/watch?v=YMvqUyoETXk
Specifications
Brand: Bussmann
Amperage Rating: 31 to 60, 35 to 60 A
Class: H, H/K
Dimensions: 4.2 in L x 4 in H
Number of Poles: 3
Series: HM Series
Suitable For Use With: Midget Fuse, NON and NOS Fuse, NON, NOS Series Fuse
Temperature Rating (Degrees F): -40 to 120, -40 to 120 deg C
Type: Ferrule Modular, Modular
Voltage Rating: 250, 250 V
Connection type: Box Lug
Country of origin: MX
Material: Thermoplastic
Mounting type: DIN Rail
Manufacturer Name: Eaton
UNSPSC: 39121629
UPC: 00051712511353
Bussmann HM25060-3CR Fuse Block
Bussmann Fuse Block, Modular, Series: HM Series, 250 V, 35 to 60 A, 3 Pole, Class: H/K, Box Lug, DIN Rail Mount, -40 to 120 deg C, For Use With: NON, NOS Series Fuse, Thermoplastic, 4.2 in L x 4 in H
Additional Description: BUSS-HM25060-3CR Fuse Block, Class H, 250V 60A, 3 Pole
Catalog Description: Eaton Bussmann series HM modular fuse block, CR, 35-60 A, Three-pole, Class H, Class K, 10 kAIC, 250 V
Item FeaturesElectrical Assemblies, Panels and EOEMs Applications
Item Features
Item FeaturesCE Certified|CSA File No.47235/622501|RoHS Compliant|UL File No.E14853 Guide IZLT
