HM25100-1CR

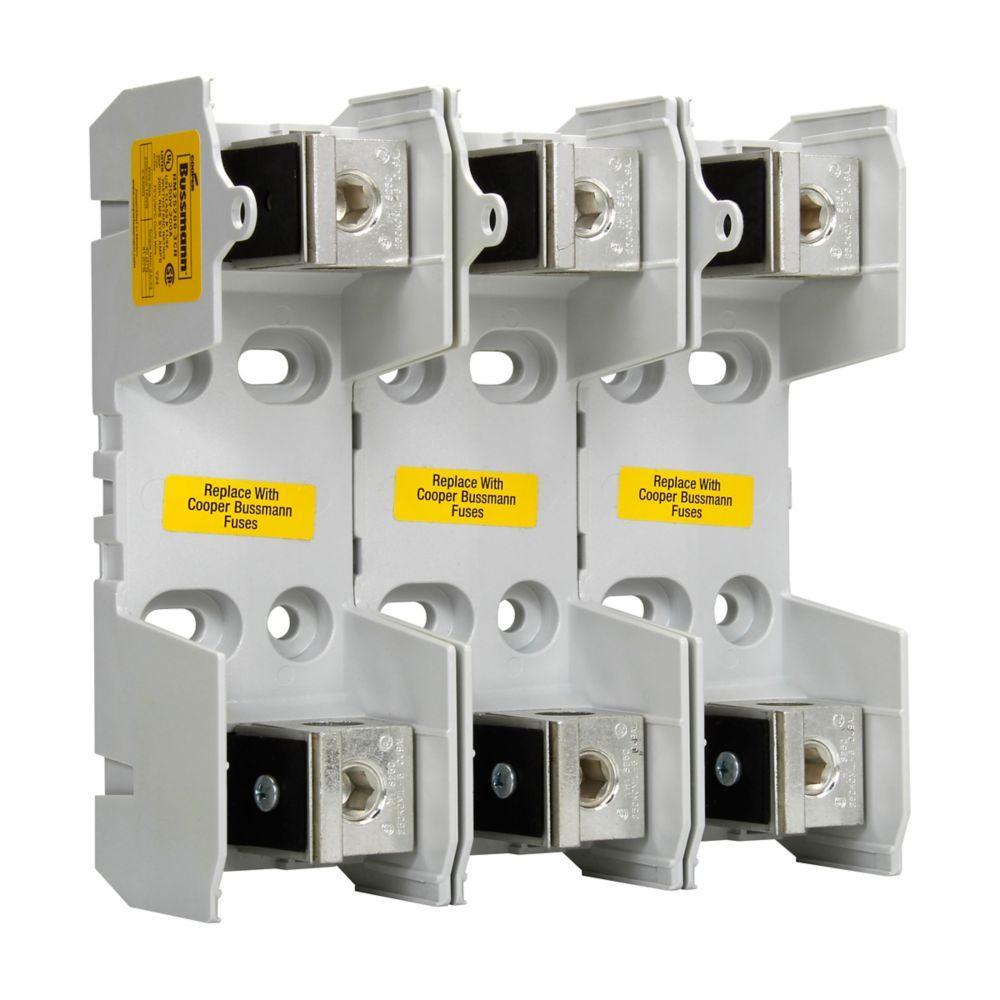

Bussmann HM25100-1CR Fuse Block
Part Number # HM25100-1CR
SKU # 2339387
$585.24 / 6Each
Typical price:$1190.10 / Each
Bussmann HM25100-1CR Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | HM25100-1CR |
| SKU #: | 2339387 |
| Amperage Rating: | 100, 70 to 100 A |
| Class: | H, H/K |
| Dimensions: | 6 in L x 2 in W x 2.8 in H, 7.2 in L x 2 in W x 2.8 in H |
| Fuse Diameter: | 1.06/1.16 |
| Fuse Length: | 5.88 |
| Number of Poles: | 1 |
| Series: | HM Series, HM250 |
| Suitable For Use With: | Knife Blade Cartridge Fuse, NON Series Knife Blade Fuse |
| Temperature Rating (Degrees F): | -40 to 120, -40 to 120 deg C |
| Type: | Modular |
| Wire Size: | 1/0 to 3 AWG, (2) 4 to 6 AWG copper, 4 to 6 AWG, (2) 8 AWG Cu, 8 AWG, (2) 10 to 14 AWG Cu, 10 to 14 AWG Cu, 10 to 12 AWG Al Solid/Stranded, 14 to 1/0 |
| Connection type: | Box Lug |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Mounting type: | Hole, Panel |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712391122 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$585.24 / 6Each
Typical price:$1190.10 / Each
Quantity:
- Bussmann Fuse Holder, Modular, Series: HM Series, 250 V, 70 to 100 A, 1 Pole, Class: H/K, 1/0 to 3 AWG, (2) 4 to 6 AWG copper, 4 to 6 AWG, (2) 8 AWG Cu, 8 AWG, (2) 10 to 14 AWG Cu, 10 to 14 AWG Cu, 10 to 12 AWG Al Solid/Stranded Wire, Hole Mount, -40 to 120 deg C, For Use With: Knife Blade Cartridge Fuse, Thermoplastic, 6 in L x 2 in W x 2.8 in H
HM25100-1CR Application
Electrical Assemblies, Panels and EOEMs ApplicationsHM25100-1CR Item Features
- Integral dovetails allow assembly of multiple poles at point-of-use for greater application flexibility
- Up to four mounting holes per pole increase installation flexibility
- Standard phase barriers between poles for additional safety
- Design meets UL creep and clearance requirements for industrial power circuits
- 200 to 600 A blocks meet the higher UL creep and clearance requirements for power distribution standards
- Standard fuse clip reinforcing springs enhance electrical contact
- https://www.youtube.com/watch?v=YMvqUyoETXk
HM25100-1CR Standards
CSA Certified|cULus File No.E14853|RoHS Compliant|UL 94-V-0 Flammability RatingSKU #2339387Part Number #HM25100-1CRUNSPSC39121629UPC00051712391122
