Part Number # HM25400-3CR
SKU # 2251329
Image Disclaimers Message
HM25400-3CR

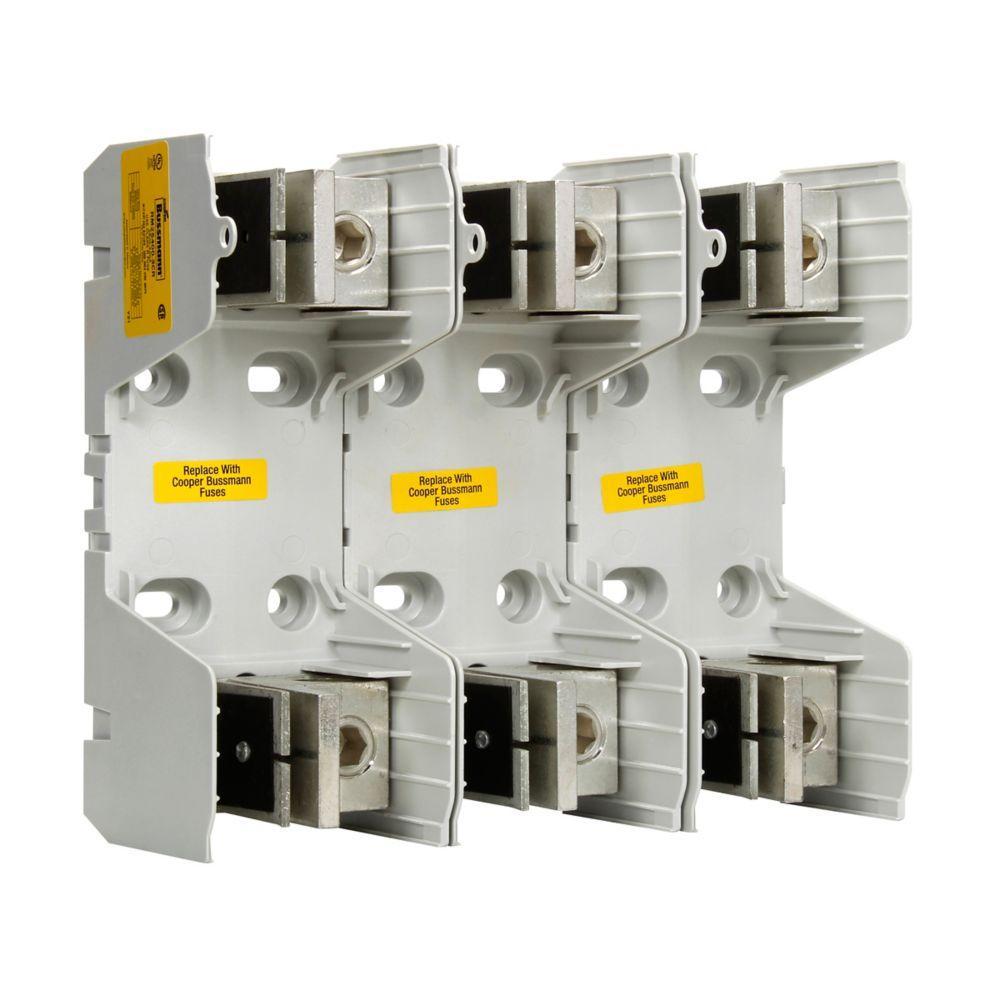

Bussmann HM25400-3CR Modular Fuse Block
Part Number # HM25400-3CR
SKU # 2251329
$1789.87 / Each
Typical price:$3639.70 / Each
Bussmann HM25400-3CR Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | HM25400-3CR |
| SKU #: | 2251329 |
| Amperage Rating: | 225 to 400, 225 to 400 A, 400 |
| Class: | H, H/K |
| Dimensions: | 10.1 in L x 10.9 in W x 4.8 in H, 10.9 in L x 9.5 in W x 4.8 in H |
| Fuse Diameter: | 2.06/2.38, 2.06/2.38 in |
| Fuse Length: | 8.63, 8.63 in |
| Number of Poles: | 3 |
| Series: | HM Series, HM250 |
| Suitable For Use With: | NON Series Fuse, NON Series Knife Blade Fuse |
| Temperature Rating (Degrees F): | -40 to 120, -40 to 120 deg C |
| Type: | Knife-Blade, Modular |
| Wire Size: | 4 AWG to 600 kcmil, 600 kcmil, 4 AWG to 500 kcmil, (2) 4 to 3/0 Cu AWG, (2) 4 to 3/0 AWG Al Solid |
| Connection type: | Box Lug |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Mounting type: | Panel |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712386937 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1789.87 / Each
Typical price:$3639.70 / Each
Quantity:
- Bussmann Fuse Block, Modular, Series: HM Series, 250 V, 225 to 400 A, 3 Pole, Class: H/K, Fuse Holder Code: N, Box Lug, 4 AWG to 600 kcmil Wire, Panel Mount, 8.63 in Fuse Length, 2.06/2.38 in Fuse Dia, -40 to 120 deg C, For Use With: NON Series Fuse, Thermoplastic, 10.1 in L x 10.9 in W x 4.8 in H
HM25400-3CR Application
Electrical Assemblies, Panels and EOEMs ApplicationsHM25400-3CR Item Features
- Integral dovetails allow snapping together multiple poles at point-of-use for greater application flexibility
- Up to four mounting holes per pole increase installation flexibility
- Standard phase barriers between poles for additional safety
- Design meets UL creep and clearance requirements for industrial control circuits
- 200 to 600 A blocks meet the higher UL creep and clearance requirements for industrial power distribution standards
- Standard fuse clip reinforcing springs enhance electrical contact
- Blocks dovetail together to assemble required number of poles
- 2.06 in Dia for Fusetron and Limitron, 2.38 in Dia for Low-Peak fuses
- https://www.youtube.com/watch?v=YMvqUyoETXk
HM25400-3CR Standards
CSA File No.47235|cULus Listed|RoHS Compliant|UL File No.E14853 Guide IZLT/IZLT7SKU #2251329Part Number #HM25400-3CRUNSPSC39121629UPC00051712386937
