Part Number # HM60060-3CR
SKU # 2319643
Image Disclaimers Message
Brand: Bussmann
HM60060-3CR

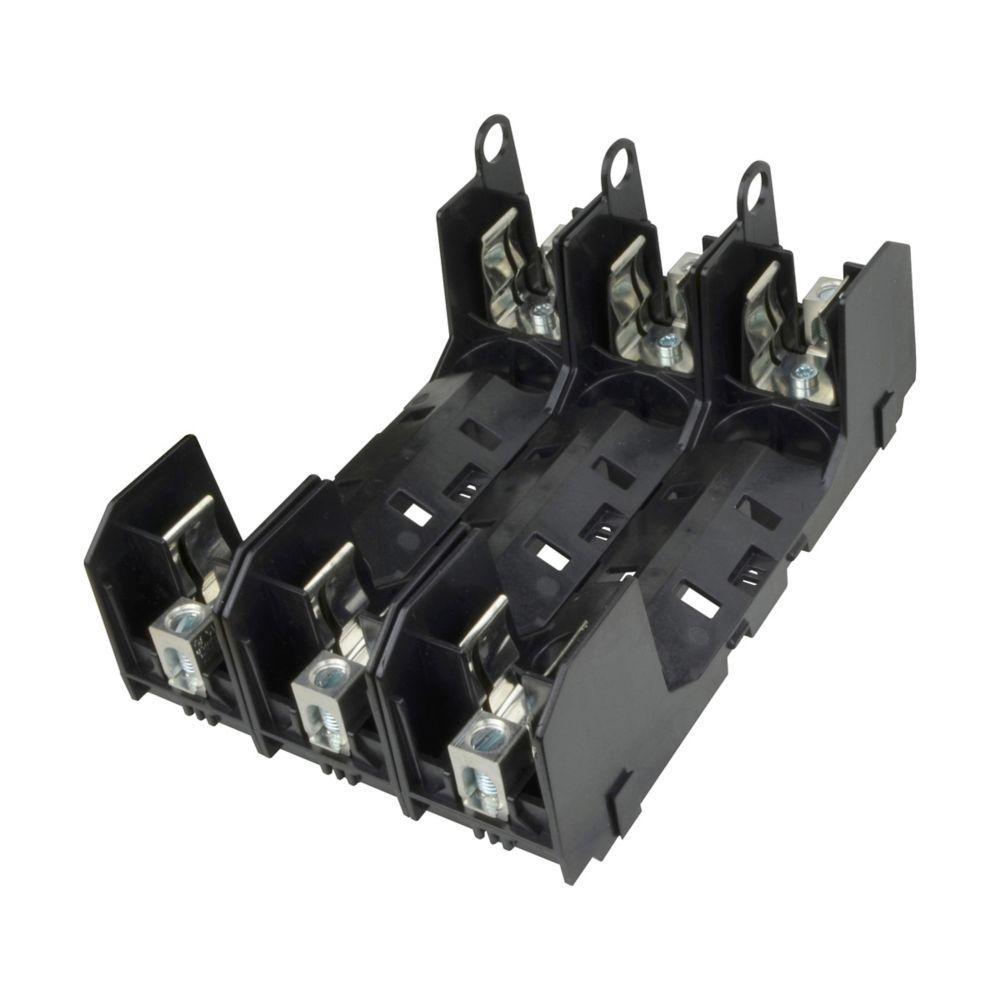

Bussmann HM60060-3CR Fuse Block
Part Number # HM60060-3CR
SKU # 2319643
$726.64 / 4Each
Typical price:$1477.60 / Each
Bussmann HM60060-3CR Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | HM60060-3CR |
| SKU #: | 2319643 |
| Amperage Rating: | 35 to 60 A |
| Class: | H, H/K |
| Dimensions: | 6.8 in L x 4.5 in W x 2.6 in H |
| Fuse Diameter: | 1.06, 1.06 in |
| Fuse Length: | 5-1/2, 5-1/2 in |
| Number of Poles: | 3 |
| Series: | HM Series, HM600 |
| Suitable For Use With: | NOS Series Ferrule Fuse, NOS Series Fuse |
| Temperature Rating (Degrees F): | -40 to 120, -40 to 120 deg C |
| Type: | Modular |
| Wire Size: | 14 to 2 AWG Cu, 8 to 2 AWG Al, 14 to 2 AWG, 8 to 2 AWG |
| Connection type: | Box Lug |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Mounting type: | DIN Rail/Panel |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712511599 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$726.64 / 4Each
Typical price:$1477.60 / Each
Quantity:
- Bussmann Fuse Block, Modular, Series: HM Series, 600 V, 35 to 60 A, 3 Pole, Class: H/K, Fuse Holder Code: Q, Box Lug, 14 to 2 AWG Cu, 8 to 2 AWG Al Wire, DIN Rail/Panel Mount, 5-1/2 in Fuse Length, 1.06 in Fuse Dia, -40 to 120 deg C, For Use With: NOS Series Fuse, Thermoplastic, 6.8 in L x 4.5 in W x 2.6 in H
HM60060-3CR Application
Electrical Assemblies, Panels and EOEMs ApplicationsHM60060-3CR Item Features
- To reduce inventory, assembly time and labor, modular 1-pole blocks snap together for toolless assembly of multiple poles at point of use
- DIN rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost
- Save panel space with the smallest width dimension on the market
- Easy circuit identification with available universal marker labels for blocks and covers
- https://www.youtube.com/watch?v=YMvqUyoETXk
HM60060-3CR Standards
UL Listed ,Contact Manufacturer ,CSA Certified,RoHS CompliantSKU #2319643Part Number #HM60060-3CRUNSPSC39121629UPC00051712511599
