HM60200-1CR

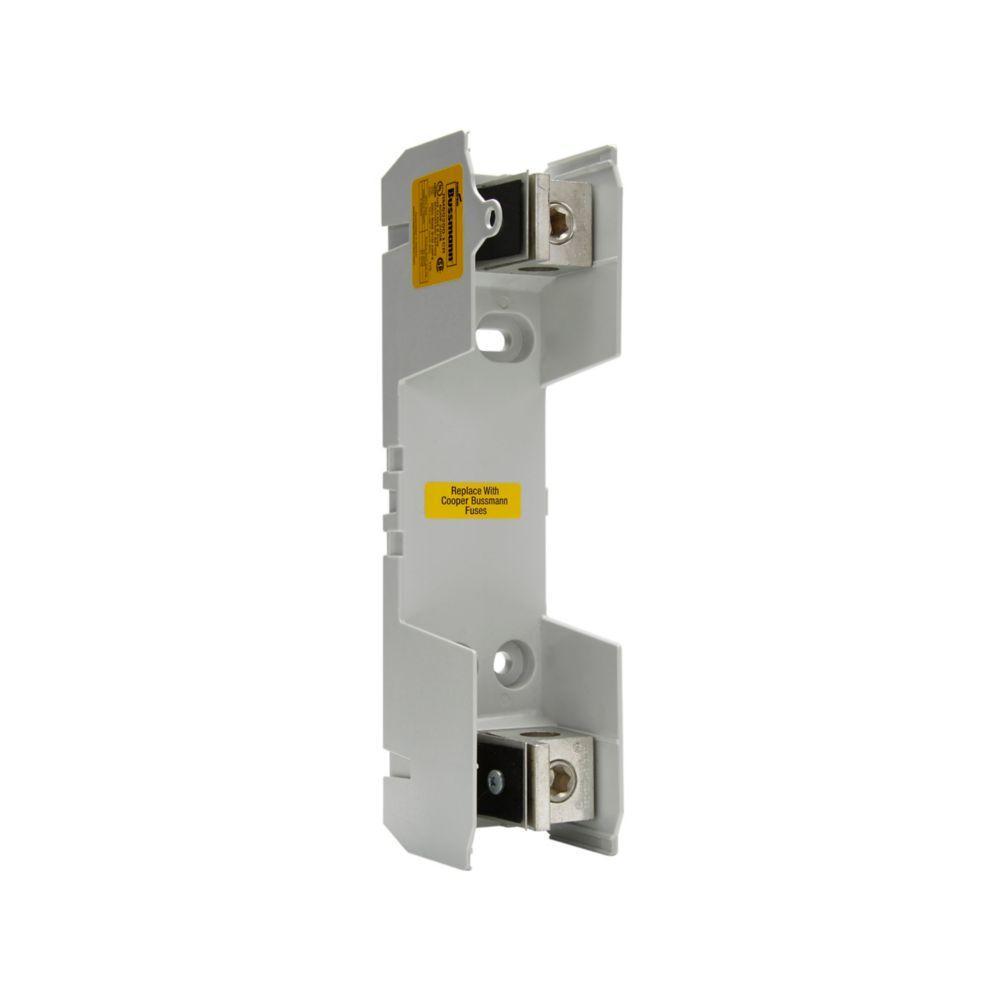

Bussmann HM60200-1CR Fuse Block
Part Number # HM60200-1CR
SKU # 2335745
$251.69 / Each
Typical price:$511.80 / Each
Bussmann HM60200-1CR Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | HM60200-1CR |
| SKU #: | 2335745 |
| Amperage Rating: | 110 to 200, 110 to 200 A, 200 |
| Class: | H, H/K |
| Dimensions: | 11.2 in L x 2.6 in W x 3.8 in H, 7.3 in L x 2.6 in W x 3.8 in H |
| Fuse Diameter: | 1.84/1.66 |
| Fuse Length: | 9.63 |
| Number of Poles: | 1 |
| Series: | HM Series, HM600 |
| Suitable For Use With: | Knife Blade Cartridge Fuse, NOS Series Knife Blade Fuse |
| Temperature Rating (Degrees F): | -40 to 120, -40 to 120 deg C |
| Type: | Modular |
| Wire Size: | 1 AWG to 250 kcmil, 2 to 6 AWG, (2) 2 to 6 AWG Cu Solid/Stranded, 1 to 3/0 AWG, 6 to 2 AWG Cu Fine Stranded, 1 to 3/0 AWG, 6 to 2 AWG, 1 AWG to 200 kcmil, 6 AWG to 250 kcmil |
| Connection type: | Box Lug |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Mounting type: | Hole, Panel |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712387293 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$251.69 / Each
Typical price:$511.80 / Each
Quantity:
- Bussmann Fuse Block, Modular, Series: HM Series, 600 V, 110 to 200 A, 1 Pole, Class: H/K, 1 AWG to 250 kcmil, 2 to 6 AWG, (2) 2 to 6 AWG Cu Solid/Stranded, 1 to 3/0 AWG, 6 to 2 AWG Cu Fine Stranded Wire, Hole Mount, -40 to 120 deg C, For Use With: Knife Blade Cartridge Fuse, Thermoplastic, 7.3 in L x 2.6 in W x 3.8 in H
HM60200-1CR Application
Electrical Assemblies, Panels and EOEMs ApplicationsHM60200-1CR Item Features
- Integral dovetails allow assembly of multiple poles at point-of-use for greater application flexibility
- Up to four mounting holes per pole increase installation flexibility
- Standard phase barriers between poles for additional safety
- Design meets UL creep and clearance requirements for industrial power circuits
- 200 to 600 A blocks meet the higher UL creep and clearance requirements for power distribution standards
- Standard fuse clip reinforcing springs enhance electrical contact
- https://www.youtube.com/watch?v=YMvqUyoETXk
HM60200-1CR Standards
CSA Certified|cULus File No.E14853|RoHS Compliant|UL 94-V-0 Flammability RatingSKU #2335745Part Number #HM60200-1CRUNSPSC39121629UPC00051712387293
