Brand: Bussmann

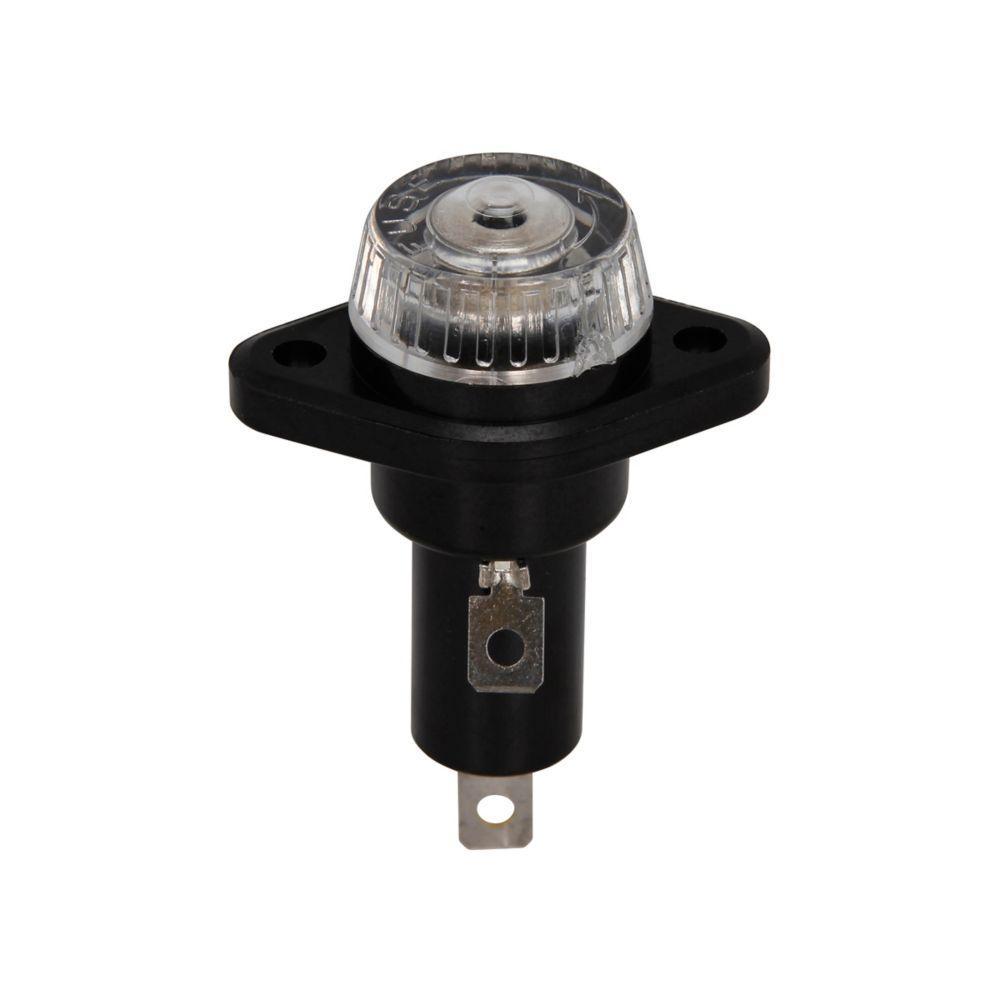

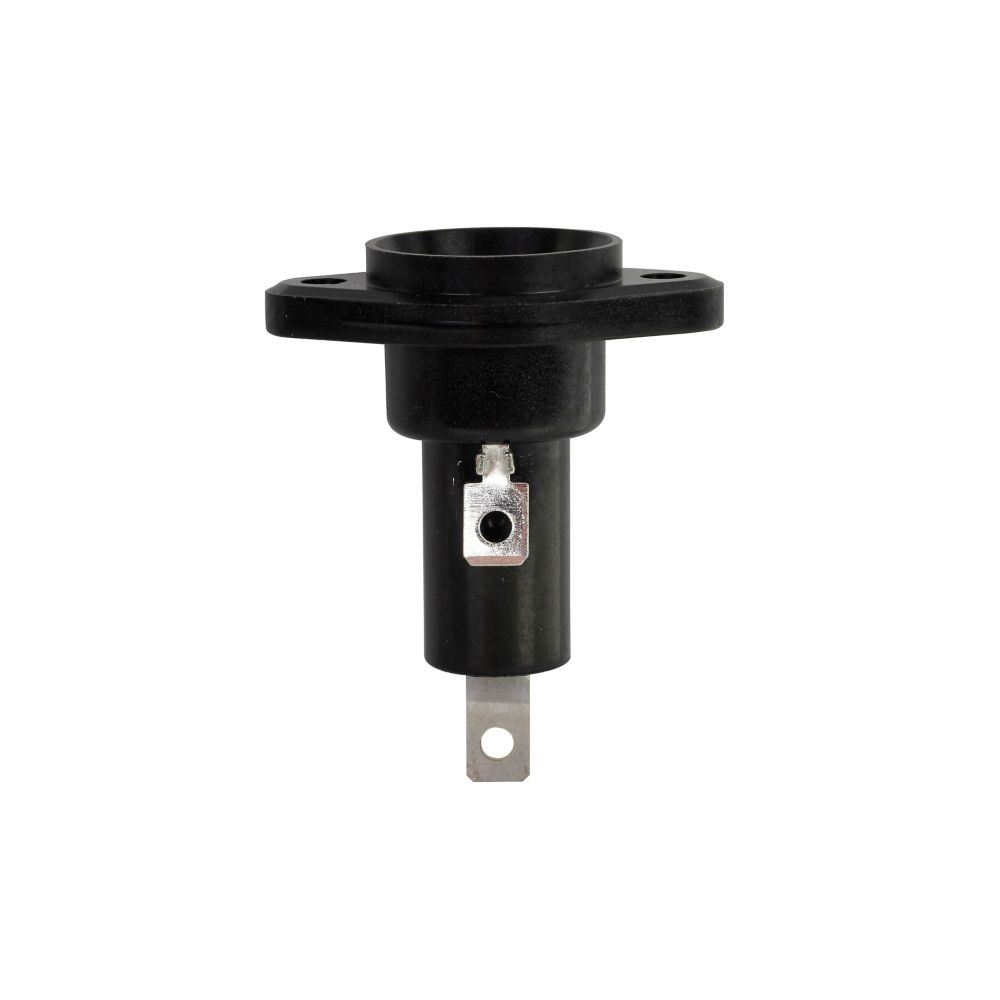

Bussmann HPF-EE Fuse Holder

Image Disclaimers Message
Brand: Bussmann
Bussmann HPF-EE Fuse Holder
Brand: Bussmann
Bussmann HPF-EE Fuse Holder
Part #:HPF-EE
SKU #: 7947
$389.10/10EA
Key Features
Part #:HPF-EE
SKU #: 7947
Brand: Bussmann
Amperage Rating: 15, 15 A
Dimensions: 1.78 in Dia x 2.69 in L
Fuse Diameter: 13/32, 13/32 in
Fuse Length: 1-5/16, 1-5/16 in
Series: HPF
$389.10/10EA
- 1-piece side terminal and threaded insert eliminates 2-piece solder fabrication
- Combination 1/2 in quick connect/solder terminals for versatility
- The HPF series functionally replaces the Bussman HPC series
- Do not put tension on line (rear) terminal of fuse holder
- Clear screw type knob
- https://www.youtube.com/watch?v=YMvqUyoETXk
Specifications
Brand: Bussmann
Amperage Rating: 15, 15 A
Dimensions: 1.78 in Dia x 2.69 in L
Fuse Diameter: 13/32, 13/32 in
Fuse Length: 1-5/16, 1-5/16 in
Series: HPF
Suitable For Use With: 13/32 x 1-1/2 in A Fuse, SC Series 0 to 15 A Fuse, SC Series Fuse
Type: Standard
Voltage Rating: 600, 600 V
Color: Black
Connection type: 1/2 in Quick Connect Terminal, Quick-Connect
Country of origin: MX
Mounting type: Panel
Manufacturer Name: Eaton
UNSPSC: 39121624
UPC: 00051712740470
Bussmann HPF-EE Fuse Holder
Bussmann Fuse Holder, Standard, Series: HPF, 600 V, 15 A, 1/2 in Quick Connect Terminal, Panel Mount, 1-5/16 in Fuse Length, 13/32 in Fuse Dia, For Use With: 13/32 x 1-1/2 in A Fuse, SC Series 0 to 15 A Fuse, Black, 1.78 in Dia x 2.69 in L
Additional Description: BUSS-HPF-EE BUSS FUSEHOLDER
Catalog Description: Eaton Bussmann series HPF panel mount fuse holder, Branch circuit protection, 15 A, 1/2 inches quick connect terminal, Panel, 600 V
Item FeaturesBranch Circuit Protection, Electrical Assemblies, Panels and EOEMs Applications
Item Features
Item FeaturesCE Certified|CSA File No.47235|RoHS Compliant|UL File No.E14853 Guide IZLT2|UL 94HB Flammability Rating
