JJN-100

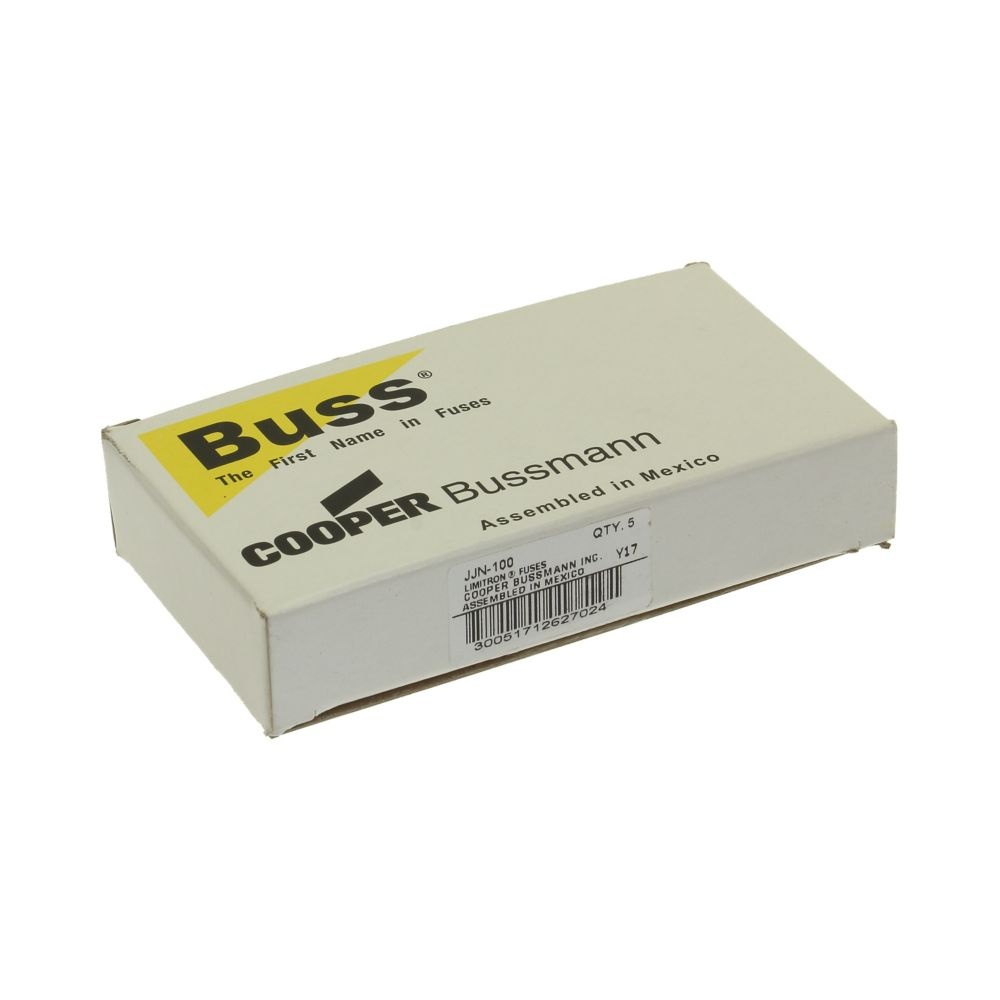

Bussmann JJN-100 T-Fast Acting Fuse
Part Number # JJN-100
SKU # 2329526
$342.80 / 5Each
Typical price:$635.40 / Each
Bussmann JJN-100 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | JJN-100 |
| SKU #: | 2329526 |
| Amperage Rating: | 100, 100 A |
| Body Type: | Cartridge |
| Class: | T |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200/20, 200/20 kA |
| Rejection/Non-Rejection: | Non-Rejection |
| Series: | JJN |
| Terminal Type: | Blade |
| Type: | Current Limiting |
| Country of origin: | MX |
| Material: | Melamine |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121626 |
| UPC: | 00051712627023 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$342.80 / 5Each
Typical price:$635.40 / Each
Quantity:
- Bussmann T-Tron Limitron Fast Acting Fuse, Current Limiting, Series: JJN, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 100 A, 300 V AC/160 V DC, 200/20 kA Interrupt, Class: T, Blade Terminal, Holder Mount, Cartridge Body, Single Element, Melamine, 0.75 in Dia x 2.16 in L Body Size
JJN-100 Application
Large Apartment Complexes, Multi-Family Meter Stacks, VFD Line Protection, Industrial and Commercial ApplicationsJJN-100 Item Features
- Small footprint allows more efficient use of available space
- Series combination ratings with branch circuit breakers allows broad range of coverage, independent of breaker manufacturer
- Current limitation for non-inductive circuits provides class T current limiting response to maximum ground fault and short circuit conditions
- 200 kA interrupt rating complies with NEC section 110.9 for todays large capacity systems
- Provides 10X better current limitation to help prevent equipment damage caused by short circuit events
- Fast acting fuse helps prevent equipment damage caused by short circuit events
- Small, space saving fuses provide a high deg of current limitation on short circuits for excellent component protection
- https://www.youtube.com/watch?v=YMvqUyoETXk
JJN-100 Standards
CSA Certified ,UL Listed,CE Marked,RoHS CompliantSKU #2329526Part Number #JJN-100UNSPSC39121626UPC00051712627023
