Bussmann JJN-110
Part Number # JJN-110
SKU # 2453626
JJN-110
Bussmann JJN-110
Part Number # JJN-110
SKU # 2453626
Bussmann JJN-110 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | JJN-110 |
| SKU #: | 2453626 |
| Body Type: | Cartridge |
| Class: | T |
| Interrupt Rating: | 200/20 kAIC |
| Rejection/Non-Rejection: | Non-Rejection |
| Series: | JJN |
| Terminal Type: | Bolted Blade End |
| Type: | Current Limiting Very Fast Acting |
| Mounting type: | Holder |
| UNSPSC: | 39121626 |
| UPC: | 00051712627115 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann JJN-110
Brand: Bussmann
Part Number: JJN-110
Bussmann Limitron T-Tron Fuse, Current Limiting Very Fast Acting, Series: JJN, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 110 A, 300 V AC/160 V DC, 200/20 kAIC Interrupt, Class: T, Bolted Blade End Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine, 0.88 in Dia x 2.44 in L Body Size
Additional Description: BUSS-JJN-110 TRON FAST ACTING FUSE CLASS T
Catalog Description: Eaton Bussmann series JJN fuse, Current-limiting, VFD line protection, 110 A, Class T, Non-indicating, Bolted blade end x bolted blade end, 20 kAIC at 160 Vdc, 200 kAIC at 300 V, Standard, 1, 300 V, 160 Vdc
JJN-110 Application
Industrial Facilities and Factories, Safety and Security Systems, Large Apartment Complexes, Multi-Family Meter Stacks, VFD Line Protection and Commercial ApplicationsJJN-110 Item Features
- Small footprint allows more efficient use of available space
- Series combination ratings with branch circuit breakers allows broad range of coverage, independent of breaker manufacturer
- Current limitation for non-inductive circuits provides class T current limiting response to maximum ground fault and short circuit conditions
- 200 kA interrupt rating complies with NEC section 110.9 for todays large capacity systems
- Provides 10X better current limitation to help prevent equipment damage caused by short circuit events
- Fast acting fuse helps prevent equipment damage caused by short circuit events
- Small, space saving fuses provide a high degree of current limitation on short circuits for excellent component protection
- https://www.youtube.com/watch?v=YMvqUyoETXk
JJN-110 Standards
CE Certified|CSA C22.2 File No.53787|RoHS Compliant|UL 248-15 File No.E4273SKU #2453626Part Number #JJN-110UNSPSC39121626UPC00051712627115

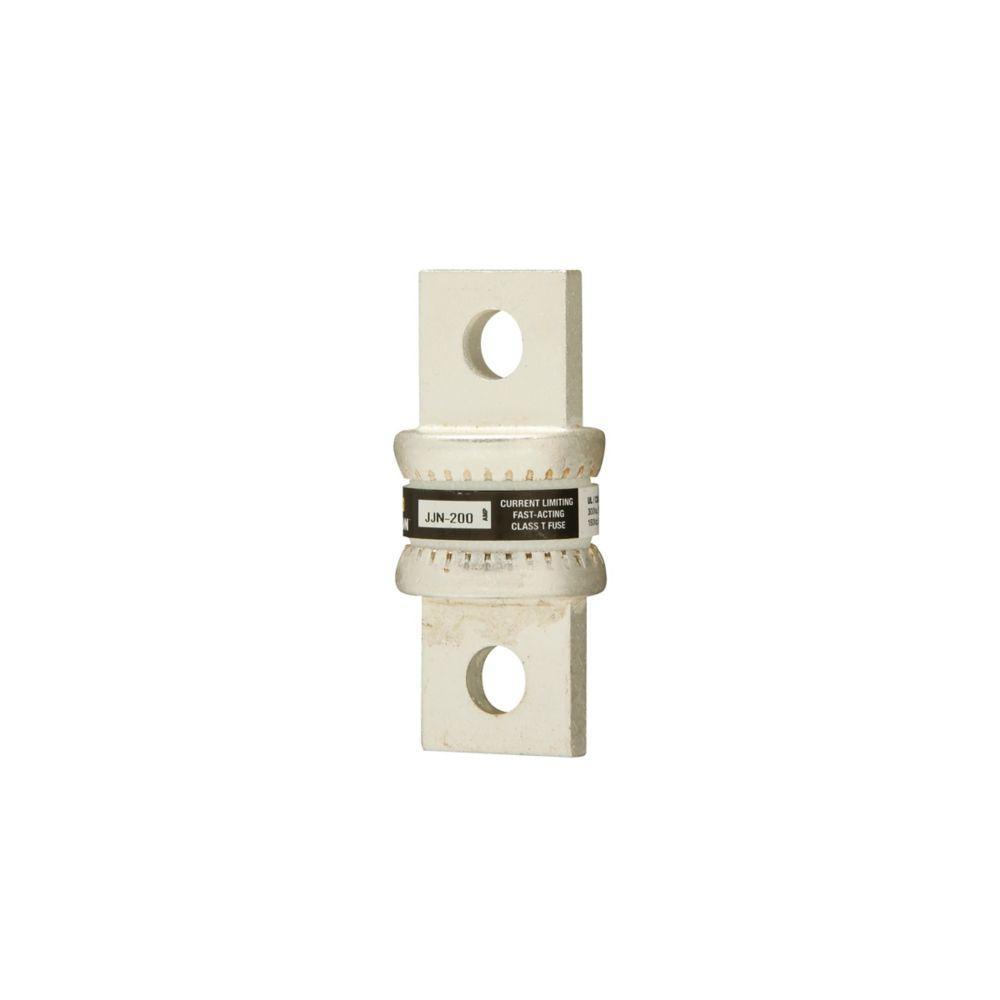

Image provided may only be a representation of final product and may include optional equipment
