Brand: Bussmann
JJN-400

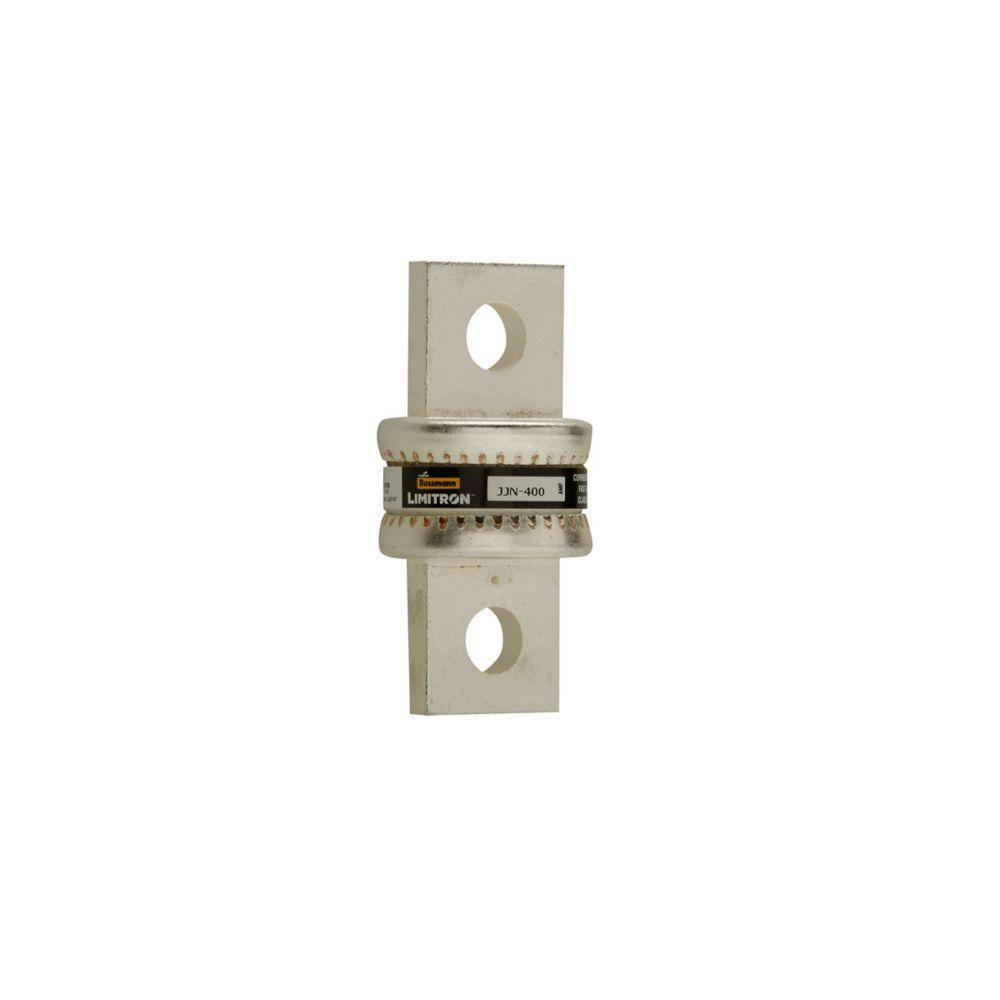

Bussmann JJN-400 T-Fast Acting Fuse
Part Number # JJN-400
SKU # 2263242
$202.09 / Each
Typical price:$297.07 / Each
Bussmann JJN-400 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | JJN-400 |
| SKU #: | 2263242 |
| Amperage Rating: | 400, 400 A |
| Body Type: | Cartridge |
| Class: | T |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200/20, 200/20 kAIC |
| Rejection/Non-Rejection: | Non-Rejection |
| Series: | JJN |
| Terminal Type: | Blade, Bolted Blade End |
| Type: | Current Limiting, Current Limiting Very Fast Acting |
| Material: | Melamine |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121626 |
| UPC: | 00051712627047 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$202.09 / Each
Typical price:$297.07 / Each
Quantity:
- Bussmann Limitron T-Tron Fuse, Current Limiting Very Fast Acting, Series: JJN, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 400 A, 300 V AC/160 V DC, 200/20 kAIC Interrupt, Class: T, Bolted Blade End Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine, 1 in Dia x 2-3/4 in L Body Size
JJN-400 Application
Industrial Facilities and Factories, Safety and Security Systems, Large Apartment Complexes, Multi-Family Meter Stacks, VFD Line Protection and Commercial ApplicationsJJN-400 Item Features
- Small footprint allows more efficient use of available space
- Series combination ratings with branch circuit breakers allows broad range of coverage, independent of breaker manufacturer
- Current limitation for non-inductive circuits provides class T current limiting response to maximum ground fault and short circuit conditions
- 200 kA interrupt rating complies with NEC section 110.9 for todays large capacity systems
- Provides 10X better current limitation to help prevent equipment damage caused by short circuit events
- Fast acting fuse helps prevent equipment damage caused by short circuit events
- Small, space saving fuses provide a high degree of current limitation on short circuits for excellent component protection
- https://www.youtube.com/watch?v=YMvqUyoETXk
JJN-400 Standards
CE Certified|CSA C22.2 File No.53787|RoHS Compliant|UL 248-15 File No.E4273SKU #2263242Part Number #JJN-400UNSPSC39121626UPC00051712627047
