JJN-70

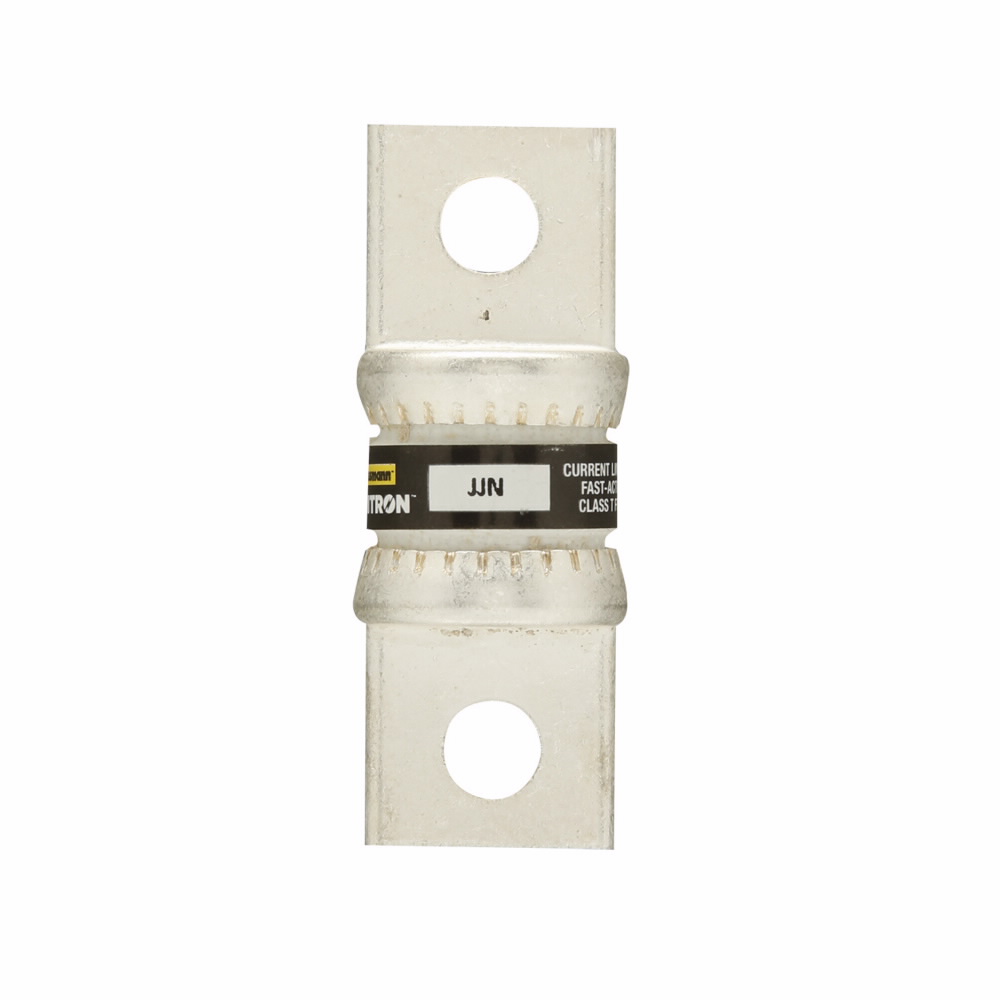

Bussmann JJN-70 T-Tron Fuse
Part Number # JJN-70
SKU # 2415678
$368.00 / 5Each
Typical price:$682.10 / Each
Bussmann JJN-70 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | JJN-70 |
| SKU #: | 2415678 |
| Amperage Rating: | 70 A |
| Body Type: | Cartridge |
| Class: | T |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 20/200 kA |
| Rejection/Non-Rejection: | Non-Rejection |
| Series: | JJN |
| Terminal Type: | Bolted Blade |
| Type: | Fast Acting Current Limiting |
| Material: | Melamine |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121626 |
| UPC: | 00051712627702 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$368.00 / 5Each
Typical price:$682.10 / Each
Quantity:
- Bussmann T-Tron Fuse, Fast Acting Current Limiting, Series: JJN, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 70 A, 300 V AC/160 V DC, 20/200 kA Interrupt, Class: T, Bolted Blade Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine, 0.75 in Dia x 2.16 in L Body Size
JJN-70 Application
Large Apartment Complexes, Multi-Family Meter Stacks, VFD Line Protection, Safety and Security Systems, Industrial and Commercial Applications,JJN-70 Item Features
- Small footprint allows more efficient use of available space
- Series combination ratings with branch circuit breakers allows broad range of coverage, independent of breaker manufacturer
- Current limitation for non-inductive circuits provides class T current limiting response to maximum ground fault and short circuit conditions
- 200 kA interrupt rating complies with NEC Section 110.9 for todays large capacity systems
- Provides 10X better current limitation to help prevent equipment damage caused by short circuit events
- Fast acting fuse helps prevent equipment damage caused by short circuit events
- Small, space saving fuses provide a high deg of current limitation on short circuits for excellent component protection
- https://www.youtube.com/watch?v=YMvqUyoETXk
JJN-70 Standards
CE Marked,RoHS CompliantSKU #2415678Part Number #JJN-70UNSPSC39121626UPC00051712627702
