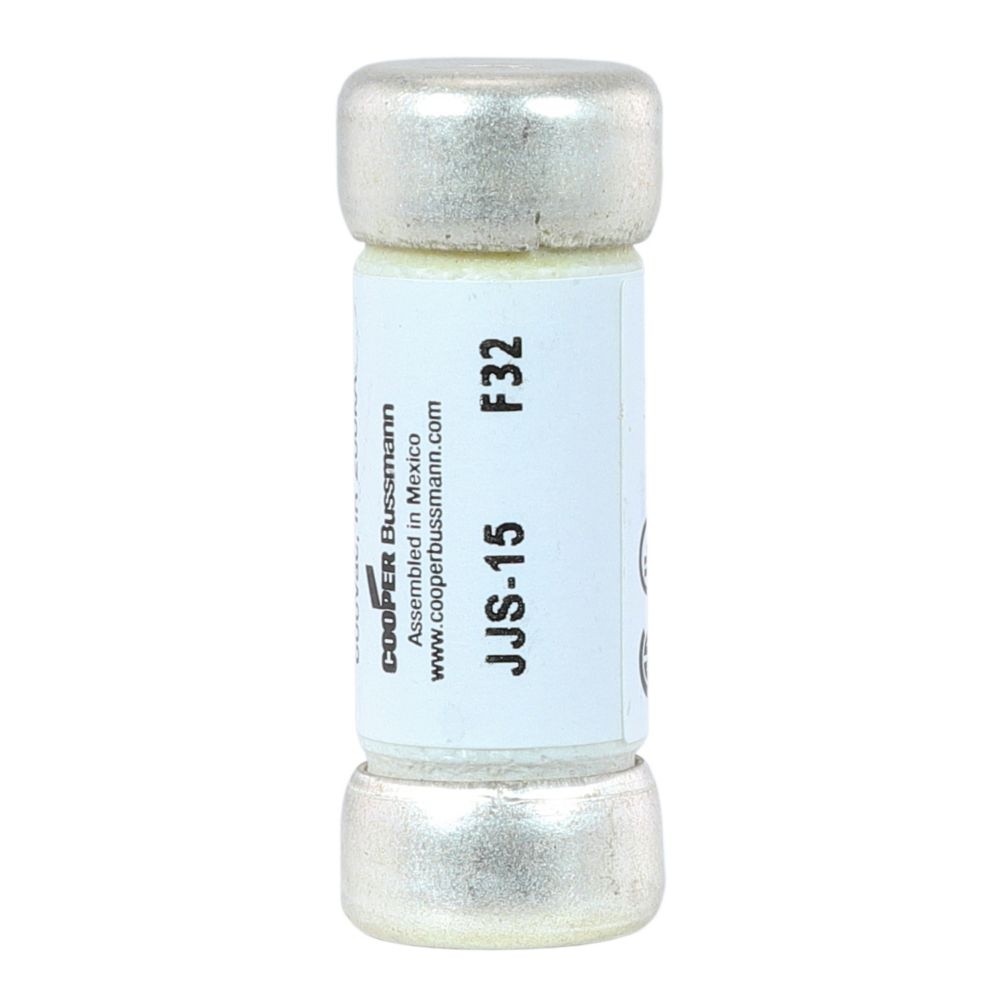

Bussmann JJS-15 Fast Acting Fuse
Part Number # JJS-15
SKU # 7984
JJS-15
Bussmann JJS-15 Fast Acting Fuse
Part Number # JJS-15
SKU # 7984
Bussmann JJS-15 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | JJS-15 |
| SKU #: | 7984 |
| Body Type: | Cylindrical |
| Class: | T |
| Interrupt Rating: | 200 kAIC |
| Rejection/Non-Rejection: | Non-Rejection |
| Series: | JJS |
| Terminal Type: | Ferrule End |
| Type: | Current Limiting Very Fast Acting |
| Mounting type: | Holder |
| UNSPSC: | 39121626 |
| UPC: | 00051712628150 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann JJS-15 Fast Acting Fuse
Brand: Bussmann
Part Number: JJS-15
Bussmann Limitron Tron Fuse, Current Limiting Very Fast Acting, Series: JJS, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 15 A, 600 V, 200 kAIC Interrupt, Class: T, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Single Element, Melamine, 0.56 in Dia x 1.5 in L Body Size
Additional Description: BUSS-JJS-15 TRON FAST ACTING FUSE CLASS T
Catalog Description: Eaton Bussmann series JJS fuse, Current-limiting, Small footprint, VFD line protection, 15 A, Class T, Non-indicating, Ferrule end x ferrule end, 200 kAIC at 600 V, Standard, 10, 600 V
JJS-15 Application
Industrial Facilities and Factories, Safety and Security Systems, Large Apartment Complexes, Multi-Family Meter Stacks and VFD Line Protection ApplicationsJJS-15 Item Features
- Small footprint allows more efficient use of available space
- Series combination ratings with branch circuit breakers allows broad range of coverage, independent of breaker manufacturer
- Current limitation for non-inductive circuits provides class T current limiting response to maximum ground fault and short circuit conditions
- 200 kA interrupt rating complies with NEC section 110.9 for todays large capacity systems
- Provides 10X better current limitation to help prevent equipment damage caused by short circuit events
- Fast acting fuse helps prevent equipment damage caused by short circuit events
- Small, space saving fuses provide a high degree of current limitation on short circuits for excellent component protection
- https://www.youtube.com/watch?v=YMvqUyoETXk
JJS-15 Standards
CE Certified|CSA C22.2 File No.53787|RoHS Compliant|UL 248-15 File No.E4273SKU #7984Part Number #JJS-15UNSPSC39121626UPC00051712628150
Image provided may only be a representation of final product and may include optional equipment
