JJS-20

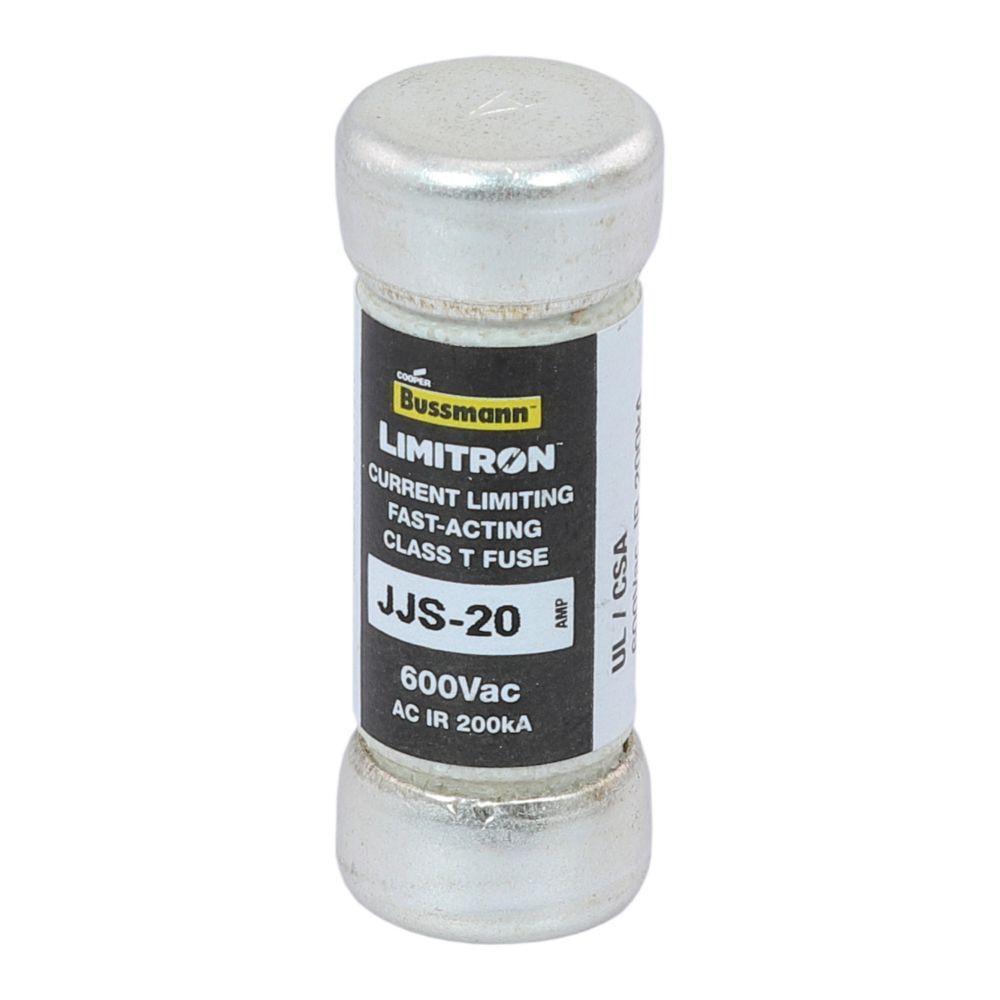

Bussmann JJS-20 Fast Acting Fuse
Part Number # JJS-20
SKU # 7985
$546.60 / 10Each
Typical price:$1013.10 / Each
Bussmann JJS-20 Key Features
Brand: Bussmann
Part Number # JJS-20
SKU #7985
Amperage Rating: 20, 20 A
Body Type: Cylindrical
Class: T
Indicating/Non-Indicating: Non-Indicating
Interrupt Rating: 200, 200 kAIC
Rejection/Non-Rejection: Non-Rejection
Series: JJS
Terminal Type: Ferrule, Ferrule End
Type: Current Limiting, Current Limiting Very Fast Acting
Voltage Rating: 600, 600 V
Material: Melamine
Mounting type: Holder
Manufacturer Name: Eaton
UNSPSC: 39121626
UPC: 00051712628204
$546.60 / 10Each
Typical price:$1013.10 / Each
SKU # 7985
Part Number # JJS-20
Bussmann JJS-20 Fast Acting Fuse
Brand: Bussmann
Part Number: JJS-20
Bussmann Limitron Tron Fuse, Current Limiting Very Fast Acting, Series: JJS, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 20 A, 600 V, 200 kAIC Interrupt, Class: T, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Single Element, Melamine, 0.56 in Dia x 1.5 in L Body Size
Additional Description: BUSS-JJS-20 TRON FAST ACTING FUSE CLASS T
Catalog Description: Eaton Bussmann series JJS fuse, Current-limiting, Small footprint, VFD line protection, 20 A, Class T, Non-indicating, Ferrule end x ferrule end, 200 kAIC at 600 V, Standard, 10, 600 V
JJS-20 Application
Industrial Facilities and Factories, Safety and Security Systems, Large Apartment Complexes, Multi-Family Meter Stacks and VFD Line Protection ApplicationsJJS-20 Item Features
- Small footprint allows more efficient use of available space
- Series combination ratings with branch circuit breakers allows broad range of coverage, independent of breaker manufacturer
- Current limitation for non-inductive circuits provides class T current limiting response to maximum ground fault and short circuit conditions
- 200 kA interrupt rating complies with NEC section 110.9 for todays large capacity systems
- Provides 10X better current limitation to help prevent equipment damage caused by short circuit events
- Fast acting fuse helps prevent equipment damage caused by short circuit events
- Small, space saving fuses provide a high degree of current limitation on short circuits for excellent component protection
- https://www.youtube.com/watch?v=YMvqUyoETXk
JJS-20 Standards
CE Certified|CSA C22.2 File No.53787|RoHS Compliant|UL 248-15 File No.E4273SKU #7985Part Number #JJS-20UNSPSC39121626UPC00051712628204
