Part Number # JJS-800
SKU # 2258138
Image provided may only be a representation of
final product and may include optional equipment
JJS-800

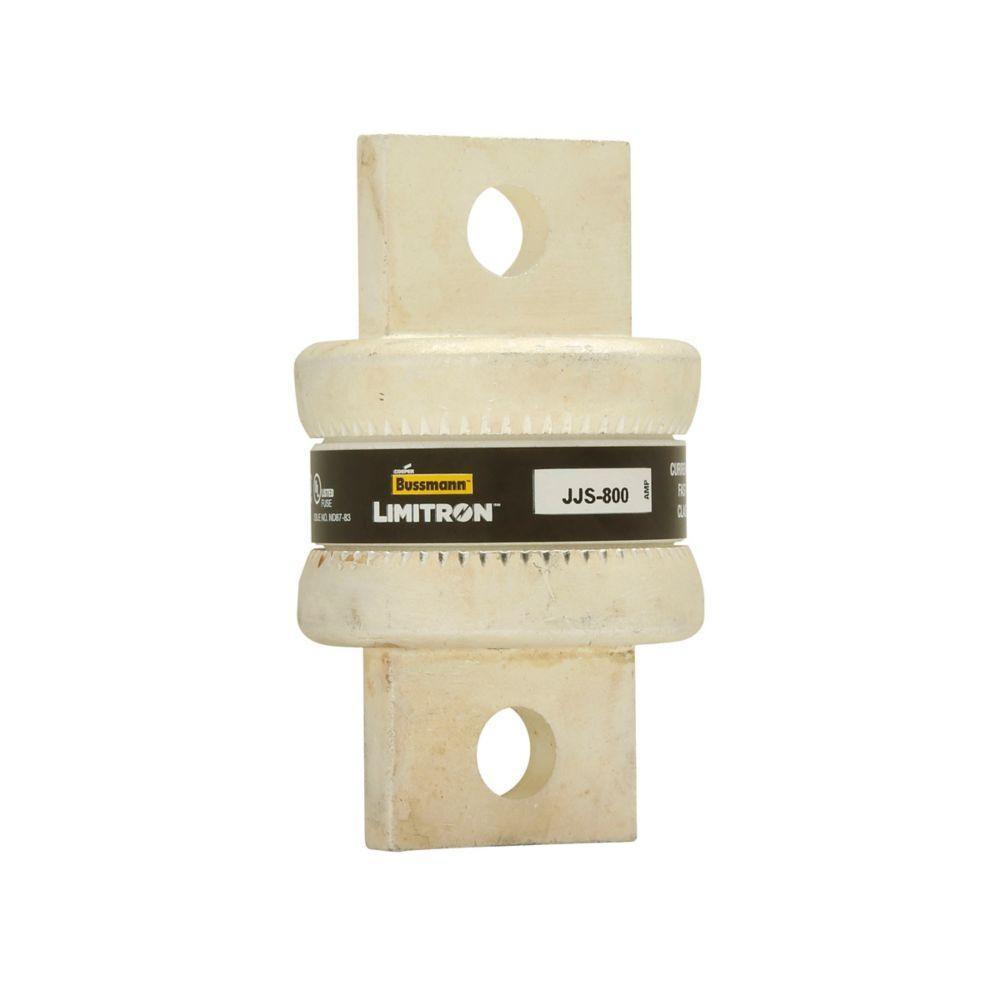

Bussmann JJS-800 Fast Acting Fuse
Part Number # JJS-800
SKU # 2258138
Bussmann JJS-800 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | JJS-800 |
| SKU #: | 2258138 |
| Amperage Rating: | 800, 800 A |
| Body Type: | Cartridge |
| Class: | T |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200, 200 kAIC |
| Rejection/Non-Rejection: | Non-Rejection |
| Series: | JJS |
| Terminal Type: | Blade, Bolted Blade End |
| Type: | Current Limiting, Current Limiting Very Fast Acting |
| Country of origin: | MX |
| Material: | Melamine |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121626 |
| UPC: | 00051712628181 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann JJS-800 Fast Acting Fuse
Brand: Bussmann
Part Number: JJS-800
Bussmann Limitron Tron Fuse, Current Limiting Very Fast Acting, Series: JJS, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 800 A, 600 V, 200 kAIC Interrupt, Class: T, Bolted Blade End Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine, 1.75 in Dia x 4.33 in L Body Size
Additional Description: BUSS-JJS-800 TRON FAST ACTING FUSE
Catalog Description: Eaton Bussmann series JJS fuse, Current-limiting, Small footprint, VFD line protection, 800 A, Class T, Non-indicating, Bolted blade end x bolted blade end, 200 kAIC at 600 V, Standard, 1, 600 V
JJS-800 Application
Industrial Facilities and Factories, Safety and Security Systems, Large Apartment Complexes, Multi-Family Meter Stacks and VFD Line Protection ApplicationsJJS-800 Item Features
- Small footprint allows more efficient use of available space
- Series combination ratings with branch circuit breakers allows broad range of coverage, independent of breaker manufacturer
- Current limitation for non-inductive circuits provides class T current limiting response to maximum ground fault and short circuit conditions
- 200 kA interrupt rating complies with NEC section 110.9 for todays large capacity systems
- Provides 10X better current limitation to help prevent equipment damage caused by short circuit events
- Fast acting fuse helps prevent equipment damage caused by short circuit events
- Small, space saving fuses provide a high degree of current limitation on short circuits for excellent component protection
- https://www.youtube.com/watch?v=YMvqUyoETXk
JJS-800 Standards
CE Certified|CSA C22.2 File No.53787|RoHS Compliant|UL 248-15 File No.E4273SKU #2258138Part Number #JJS-800UNSPSC39121626UPC00051712628181
