Part Number # JKS-10
SKU # 2301164
Image Disclaimers Message
Brand: Bussmann
JKS-10

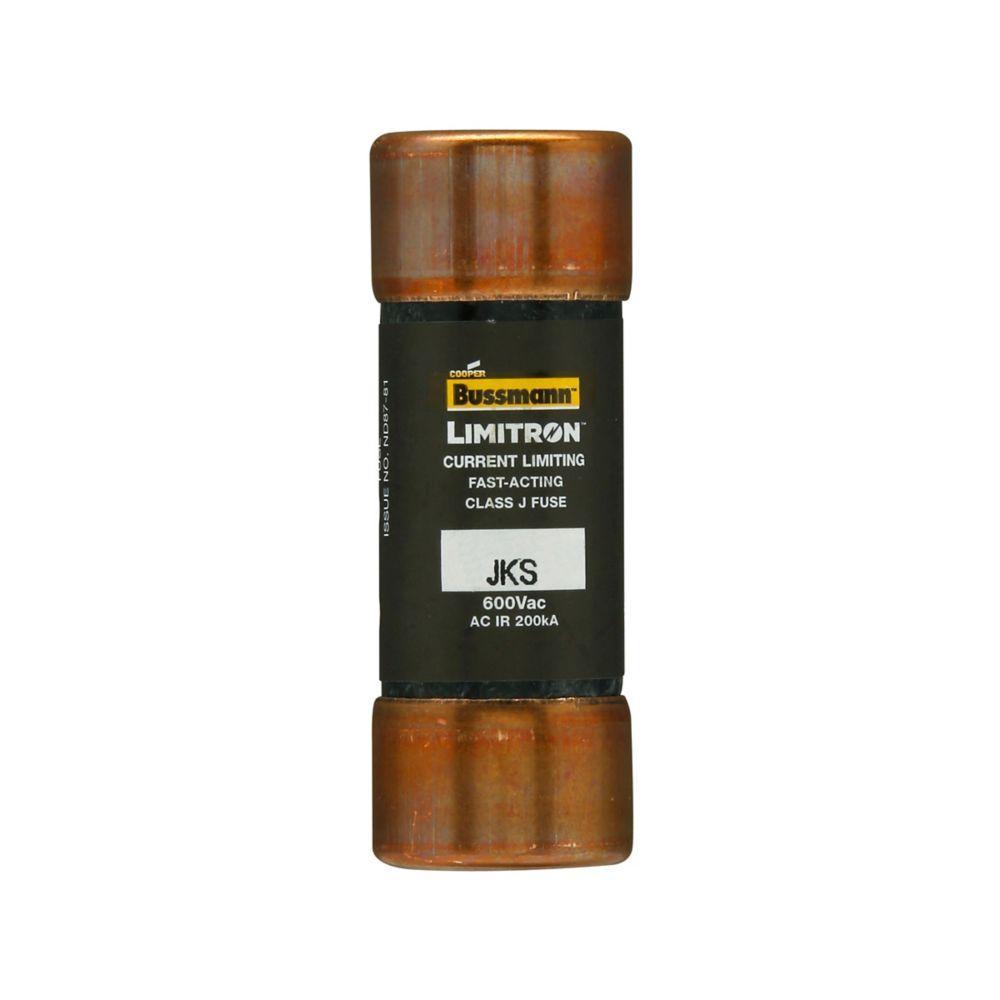

Bussmann JKS-10 Fast Acting Fuse
Part Number # JKS-10
SKU # 2301164
$88.48 / Each
Typical price:$174.48 / Each
Bussmann JKS-10 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | JKS-10 |
| SKU #: | 2301164 |
| Amperage Rating: | 10, 10 A |
| Body Type: | Cylindrical |
| Class: | J |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200, 200 kA |
| Rejection/Non-Rejection: | Non-Rejection |
| Series: | JKS |
| Terminal Type: | Ferrule |
| Type: | Current Limiting, Fast Acting Current Limiting |
| Country of origin: | MX |
| Material: | Melamine |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121626 |
| UPC: | 00051712630108 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$88.48 / Each
Typical price:$174.48 / Each
Quantity:
- Bussmann Limitron Fuse, Fast Acting Current Limiting, Series: JKS, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 10 A, 600 V AC, 200 kA Interrupt, Class: J, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Single Element, Melamine, 0.81 in Dia x 2.25 in L Body Size
JKS-10 Application
Power Panelboards and Machinery Disconnect Applications, Safety and Security SystemsJKS-10 Item Features
- Provides component short circuit protection in compliance with NEC 110-10, where protection devices shall clear a fault without extensive damage to the circuit components
- High interrupt rating helps meet the requirements of future system expansion and the increases in available utility short circuit current
- Fuses can be selectively co-ordinated with ease
- Current limitation for non-inductive circuits provides class J current limiting response to maximum ground fault and short circuit conditions
- Economical solutions for high fault circuits
- Advanced protection
- 200 kA interrupt rating provides high ratings for control circuit locations
- Protects low interrupting capacity circuit breakers, limits the short circuit current to meet the interrupting capacity requirements of existing equipment
- Well suited for lighting and heating circuits and other non-inductive loads
- https://www.youtube.com/watch?v=YMvqUyoETXk
JKS-10 Standards
CE Certified|CSA C22.2/1422-02|CSA File No. 53787|RoHS Compliant|UL 248-8|UL File No. E4273|UL Guide JDDZSKU #2301164Part Number #JKS-10UNSPSC39121626UPC00051712630108
