JKS-20

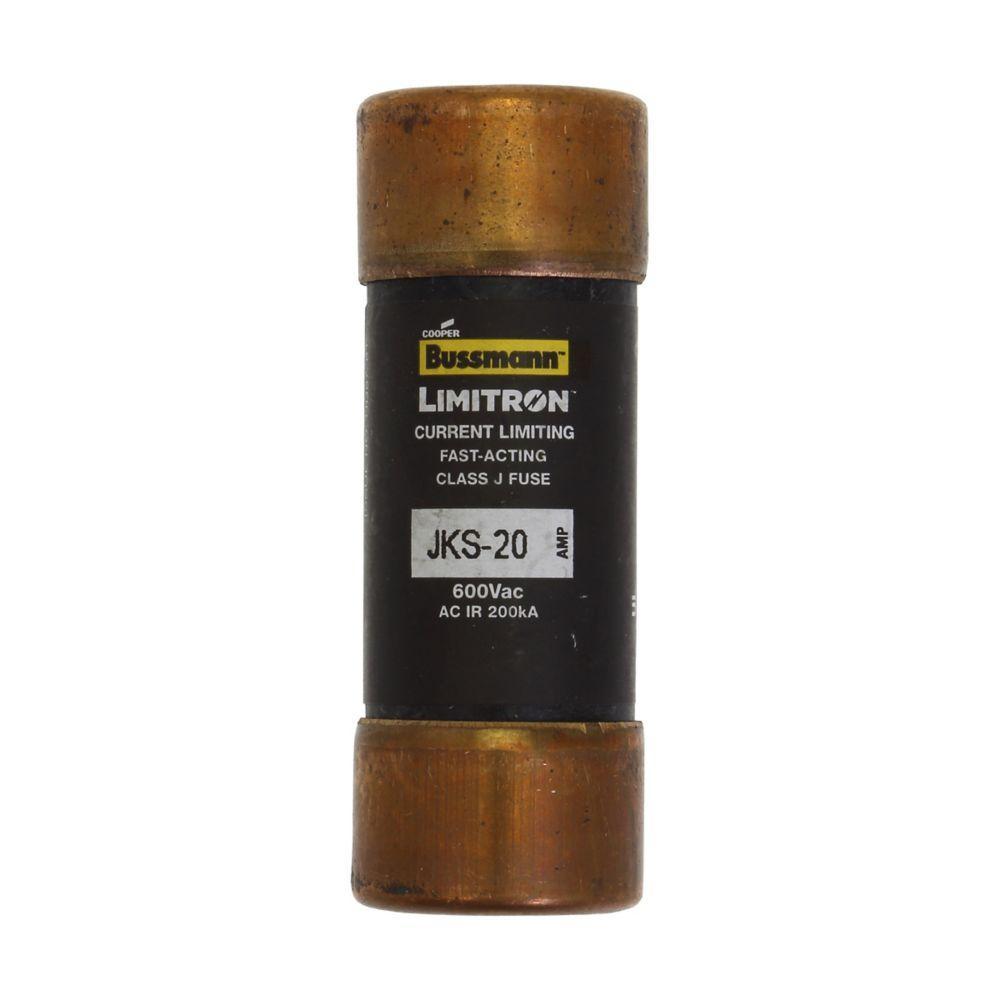

Bussmann JKS-20 Fast Acting Fuse
Part Number # JKS-20
SKU # 2354842
$82.36 / Each
Typical price:$162.40 / Each
Bussmann JKS-20 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | JKS-20 |
| SKU #: | 2354842 |
| Amperage Rating: | 20, 20 A |
| Body Type: | Cylindrical |
| Class: | J |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200, 200 kAIC |
| Rejection/Non-Rejection: | Non-Rejection |
| Series: | JKS |
| Terminal Type: | Ferrule, Ferrule End |
| Type: | Current Limiting, Current Limiting Fast Acting |
| Country of origin: | MX |
| Material: | Melamine |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121626 |
| UPC: | 00051712630207 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$82.36 / Each
Typical price:$162.40 / Each
Quantity:
- Bussmann Limitron Fuse, Current Limiting Fast Acting, Series: JKS, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 20 A, 600 V, 200 kAIC Interrupt, Class: J, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Single Element, Melamine, 0.81 in Dia x 2.25 in L Body Size
JKS-20 Application
Industrial Facilities and Factories, Safety and Security Systems, Power Panelboards and Machinery Disconnect ApplicationsJKS-20 Item Features
- Provides component short circuit protection in compliance with NEC 110-10 where protection devices shall clear a fault without extensive damage to the circuit components
- High interrupt rating helps meet the requirements of future system expansion and the increases in available utility short circuit current
- Fuses can be selectively coordinated with ease
- Current limitation for non-inductive circuits provides class J current limiting response to maximum ground fault and short circuit conditions
- Economical solutions for high fault circuits
- Advanced protection
- 200 kA interrupt rating provides high ratings at all circuit locations
- Protects low interrupting capacity circuit breakers, limits the short circuit current to meet the interrupting capacity requirements of existing equipment
- Well suited for lighting and heating circuits and other non-inductive loads
- https://www.youtube.com/watch?v=YMvqUyoETXk
JKS-20 Standards
CE Certified|CSA C22.2 File No.53787|RoHS Compliant|UL 248-8 File No.E4273 Guide JDDZSKU #2354842Part Number #JKS-20UNSPSC39121626UPC00051712630207
