Part Number # JKS-200
SKU # 2241551
JKS-200

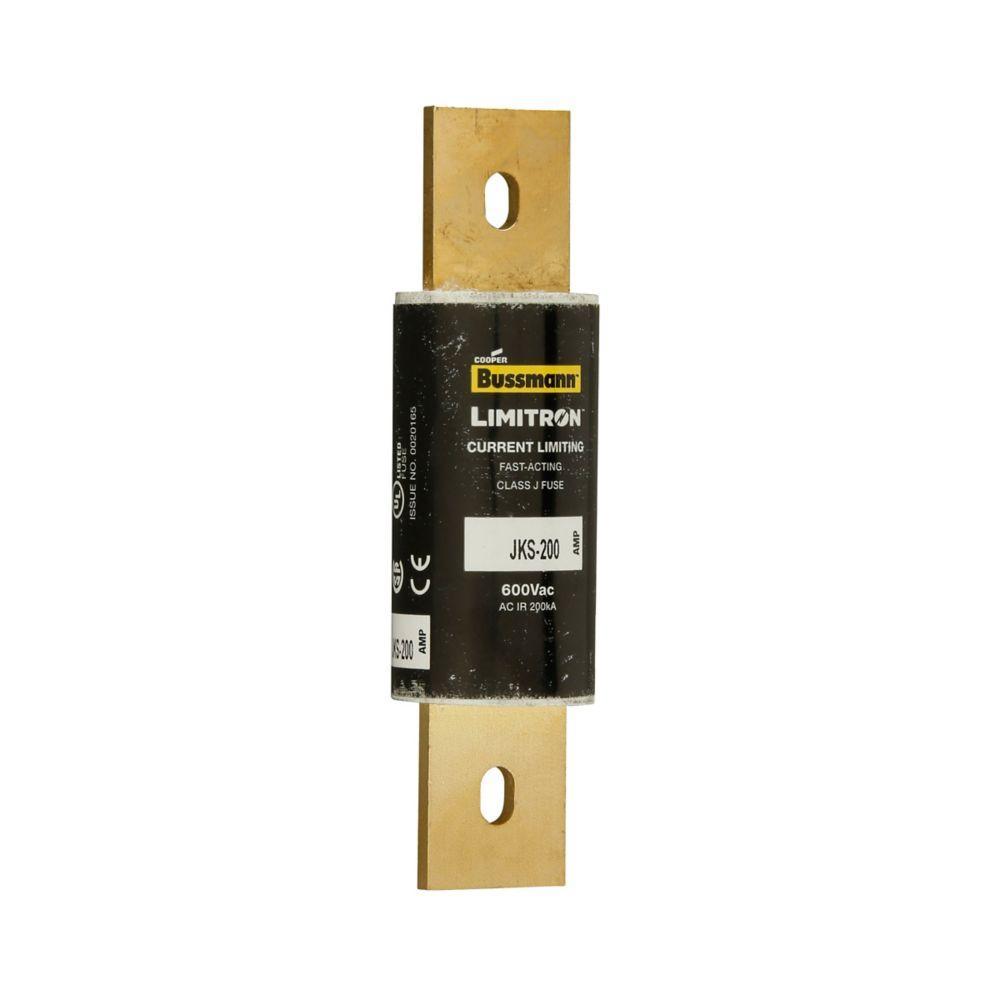

Bussmann JKS-200 Fast Acting Fuse
Part Number # JKS-200
SKU # 2241551
Bussmann JKS-200 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | JKS-200 |
| SKU #: | 2241551 |
| Amperage Rating: | 200 A |
| Class: | J |
| Interrupt Rating: | 200 kAIC |
| Series: | JKS |
| Type: | Current Limiting Fast Acting |
| UNSPSC: | 39121626 |
| UPC: | 00051712632003 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann JKS-200 Fast Acting Fuse
Brand: Bussmann
Part Number: JKS-200
Bussmann Limitron Fuse, Current Limiting Fast Acting, Series: JKS, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 200 A, 600 V, 200 kAIC Interrupt, Class: J, Bolted Blade End Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine, 1-1/2 in Dia x 5-3/4 in L Body Size
Additional Description: BUSS-JKS-200 (N) LIMITRON FAST ACTING FUSE CLASS J NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann Series Class J fuse, JKS, fast-acting, current limiting fuse, 200 A, rejection style fuse, interrupting rating of 200kA at 600Vac
JKS-200 Application
Industrial Facilities and Factories, Safety and Security Systems, Power Panelboards and Machinery Disconnect ApplicationsJKS-200 Item Features
- Provides component short circuit protection in compliance with NEC 110-10 where protection devices shall clear a fault without extensive damage to the circuit components
- High interrupt rating helps meet the requirements of future system expansion and the increases in available utility short circuit current
- Fuses can be selectively coordinated with ease
- Current limitation for non-inductive circuits provides class J current limiting response to maximum ground fault and short circuit conditions
- Economical solutions for high fault circuits
- Advanced protection
- 200 kA interrupt rating provides high ratings at all circuit locations
- Protects low interrupting capacity circuit breakers, limits the short circuit current to meet the interrupting capacity requirements of existing equipment
- Well suited for lighting and heating circuits and other non-inductive loads
- https://www.youtube.com/watch?v=YMvqUyoETXk
JKS-200 Standards
CE Certified|CSA C22.2 File No.53787|RoHS Compliant|UL 248-8 File No.E4273 Guide JDDZSKU #2241551Part Number #JKS-200UNSPSC39121626UPC00051712632003
Image provided may only be a representation of final product and may include optional equipment
