Brand: Bussmann

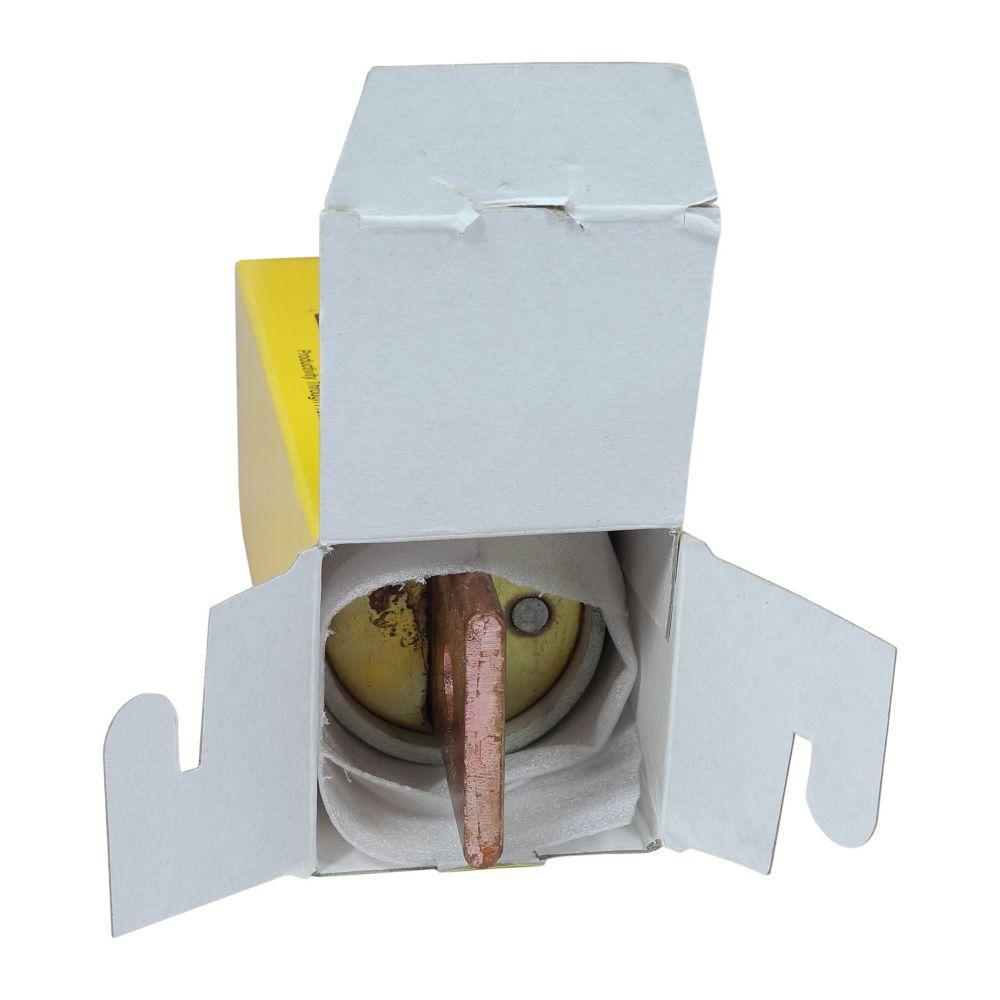

Bussmann JKS-250 Fast Acting Fuse
Part Number # JKS-250
SKU # 2334066
$986.84 / Each
Bussmann JKS-250 Key Features
Brand: Bussmann
Part Number # JKS-250
SKU #2334066
Amperage Rating: 250, 250 A
Body Type: Cartridge
Class: J
Indicating/Non-Indicating: Non-Indicating
Interrupt Rating: 200, 200 kAIC
Rejection/Non-Rejection: Non-Rejection
Series: JKS
Terminal Type: Bolted Blade End, Knife Blade
Type: Current Limiting, Current Limiting Fast Acting
Voltage Rating: 600, 600 V
Country of origin: MX
Material: Melamine
Mounting type: Holder
Manufacturer Name: Eaton
UNSPSC: 39121626
UPC: 00051712632508
$986.84 / Each
Bussmann JKS-250 Fast Acting Fuse
Brand: Bussmann
Part Number: JKS-250
Bussmann Limitron Fuse, Current Limiting Fast Acting, Series: JKS, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 250 A, 600 V, 200 kAIC Interrupt, Class: J, Bolted Blade End Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine, 2 in Dia x 7.13 in L Body Size
Additional Description: BUSS-JKS-250 LIMITRON FAST ACTING FUSE CLASS J
Catalog Description: Eaton Bussmann Series Class J fuse, JKS, fast-acting, current limiting fuse, 250 A, rejection style fuse, interrupting rating of 200kA at 600Vac
JKS-250 Application
Industrial Facilities and Factories, Safety and Security Systems, Power Panelboards and Machinery Disconnect ApplicationsJKS-250 Item Features
- Provides component short circuit protection in compliance with NEC 110-10 where protection devices shall clear a fault without extensive damage to the circuit components
- High interrupt rating helps meet the requirements of future system expansion and the increases in available utility short circuit current
- Fuses can be selectively coordinated with ease
- Current limitation for non-inductive circuits provides class J current limiting response to maximum ground fault and short circuit conditions
- Economical solutions for high fault circuits
- Advanced protection
- 200 kA interrupt rating provides high ratings at all circuit locations
- Protects low interrupting capacity circuit breakers, limits the short circuit current to meet the interrupting capacity requirements of existing equipment
- Well suited for lighting and heating circuits and other non-inductive loads
- https://www.youtube.com/watch?v=YMvqUyoETXk
JKS-250 Standards
CE Certified|CSA C22.2 File No.53787|RoHS Compliant|UL 248-8 File No.E4273 Guide JDDZSKU #2334066Part Number #JKS-250UNSPSC39121626UPC00051712632508
