Bussmann JKS-5 Fast Acting Fuse
Part Number # JKS-5
SKU # 2233990
JKS-5
Bussmann JKS-5 Fast Acting Fuse
Part Number # JKS-5
SKU # 2233990
Bussmann JKS-5 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | JKS-5 |
| SKU #: | 2233990 |
| Body Type: | Cylindrical |
| Class: | J |
| Interrupt Rating: | 200 kAIC |
| Rejection/Non-Rejection: | Non-Rejection |
| Series: | JKS |
| Terminal Type: | Ferrule End |
| Type: | Current Limiting Fast Acting |
| Mounting type: | Holder |
| UNSPSC: | 39121626 |
| UPC: | 00051712630054 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann JKS-5 Fast Acting Fuse
Brand: Bussmann
Part Number: JKS-5
Bussmann Limitron Fuse, Current Limiting Fast Acting, Series: JKS, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 5 A, 600 V, 200 kAIC Interrupt, Class: J, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Single Element, Melamine, 0.81 in Dia x 2.25 in L Body Size
Additional Description: BUSS-JKS-5 LIMITRON FAST ACTING FUSE CLASS J
Catalog Description: Eaton Bussmann Series Class J fuse, JKS, fast-acting, current limiting fuse, 5 A, rejection style fuse, interrupting rating of 200kA at 600Vac
JKS-5 Application
Industrial Facilities and Factories, Safety and Security Systems, Power Panelboards and Machinery Disconnect ApplicationsJKS-5 Item Features
- Provides component short circuit protection in compliance with NEC 110-10 where protection devices shall clear a fault without extensive damage to the circuit components
- High interrupt rating helps meet the requirements of future system expansion and the increases in available utility short circuit current
- Fuses can be selectively coordinated with ease
- Current limitation for non-inductive circuits provides class J current limiting response to maximum ground fault and short circuit conditions
- Economical solutions for high fault circuits
- Advanced protection
- 200 kA interrupt rating provides high ratings at all circuit locations
- Protects low interrupting capacity circuit breakers, limits the short circuit current to meet the interrupting capacity requirements of existing equipment
- Well suited for lighting and heating circuits and other non-inductive loads
- https://www.youtube.com/watch?v=YMvqUyoETXk
JKS-5 Standards
CE Marked,RoHS CompliantSKU #2233990Part Number #JKS-5UNSPSC39121626UPC00051712630054

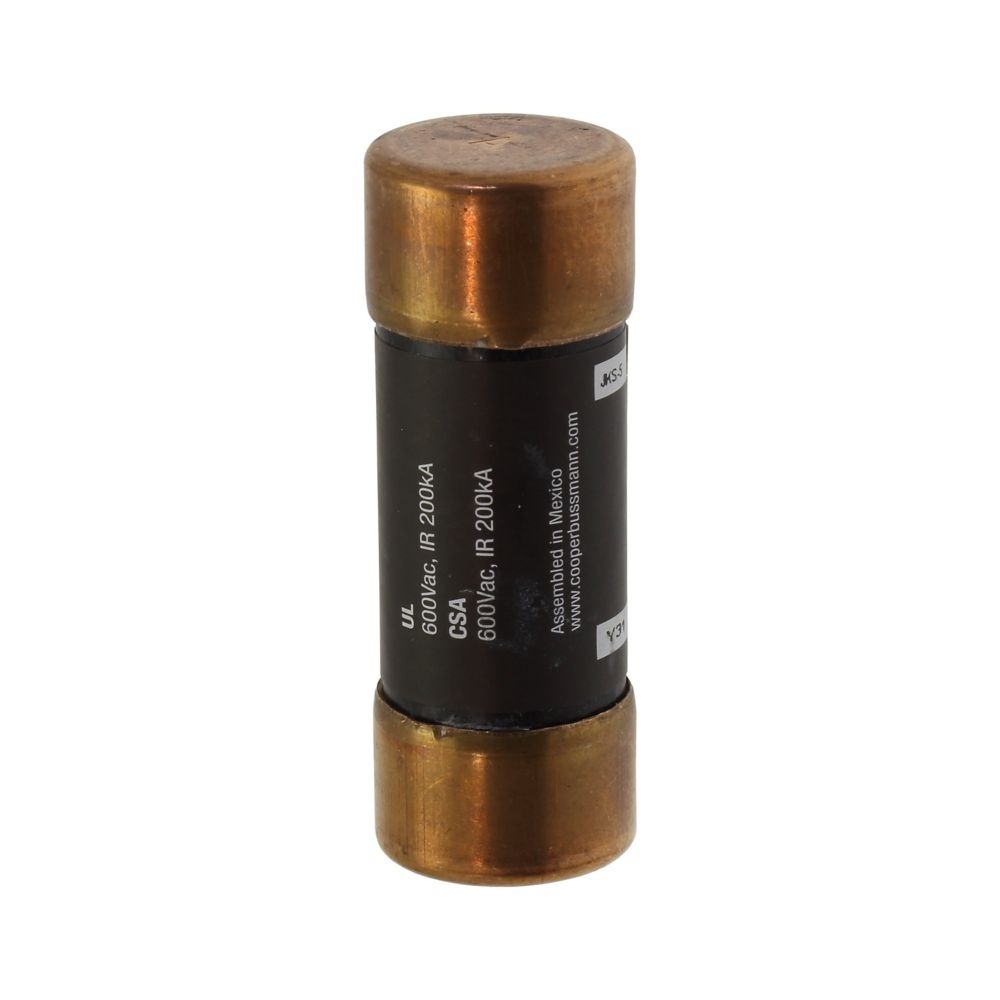

Image provided may only be a representation of final product and may include optional equipment
