Part Number # JM60030-1CR
SKU # 2306444
Image Disclaimers Message
JM60030-1CR

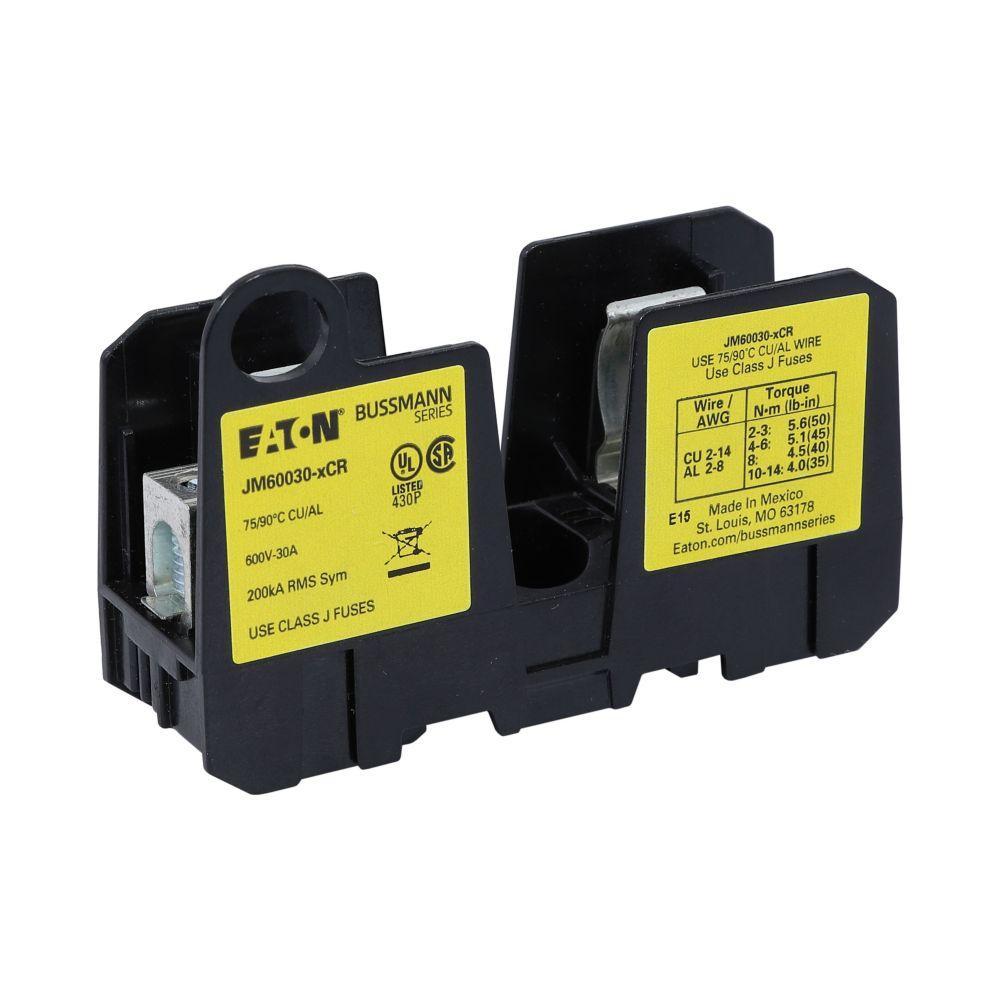

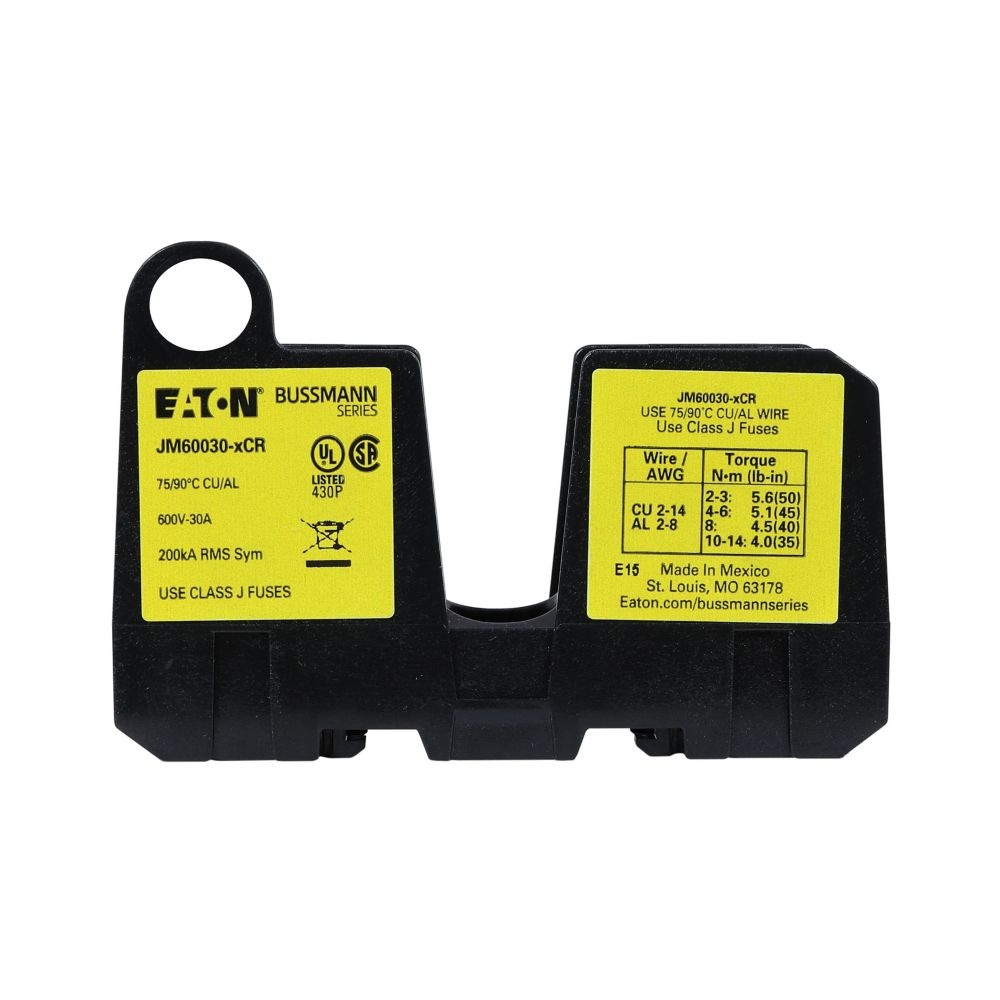

Bussmann JM60030-1CR Fuse Block
Part Number # JM60030-1CR
SKU # 2306444
$645.12 / 12Each
Typical price:$1311.84 / Each
Bussmann JM60030-1CR Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | JM60030-1CR |
| SKU #: | 2306444 |
| Amperage Rating: | 1/2 to 30, 1/2 to 30 A |
| Class: | J |
| Dimensions: | 4.3 in L x 1.1 in W x 2.3 in H |
| Fuse Diameter: | 0.81, 0.81 in |
| Fuse Length: | 2-1/4, 2-1/4 in |
| Number of Poles: | 1 |
| Series: | JM600 |
| Suitable For Use With: | Low-Peak LPJ, Limitron JKS and DFJ Ferrule Fuse, Low-Peak™ LPJ, Limitron™ JKS and DFJ Ferrule Fuse |
| Temperature Rating (Degrees F): | -40 to 120, -40 to 120 deg C |
| Wire Size: | 14 to 2 AWG, 8 to 2 AWG |
| Connection type: | Box Lug/Slot Screw |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Mounting type: | DIN Rail/Panel |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712514637 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$645.12 / 12Each
Typical price:$1311.84 / Each
Quantity:
- Bussmann Fuse Block, Series: JM600, 600 V AC, 1/2 to 30 A, 1 Pole, Class: J, Box Lug/Slot Screw, 14 to 2 AWG, 8 to 2 AWG Wire, DIN Rail/Panel Mount, 2-1/4 in Fuse Length, 0.81 in Fuse Dia, -40 to 120 deg C, For Use With: Low-Peak LPJ, Limitron JKS and DFJ Ferrule Fuse, Thermoplastic, 4.3 in L x 1.1 in W x 2.3 in H
JM60030-1CR Application
Any Panel or Electrical System ApplicationsJM60030-1CR Item Features
- To reduce inventory, assembly time and labor, modular 1-pole blocks snap together for tool less assembly of multiple poles at point of use
- DIN rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost
- Save panel space with the smallest width dimension on the market
- Easy circuit identification with available universal marker labels for blocks and covers
- 14 to 2 AWG copper, 8 to 2 AWG aluminum wire
- https://www.youtube.com/watch?v=YMvqUyoETXk
JM60030-1CR Standards
UL File No. E14853|Guide IZLT|CSA File No. 47235|Class 6225-01|CE CertifiedSKU #2306444Part Number #JM60030-1CRUNSPSC39121629UPC00051712514637
