Part Number # JM60030-1SR
SKU # 2339384
Image Disclaimers Message
JM60030-1SR

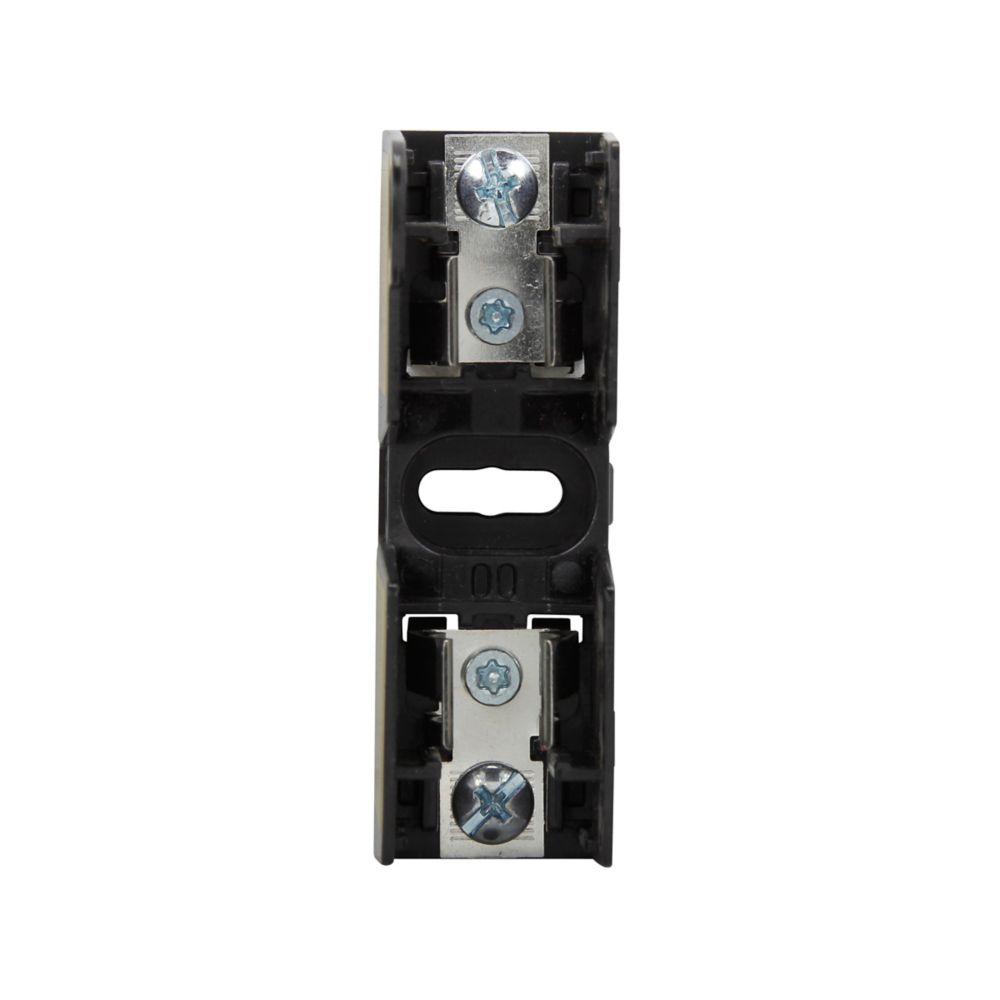

Bussmann JM60030-1SR Fuse Block
Part Number # JM60030-1SR
SKU # 2339384
$575.88 / 12Each
Typical price:$1170.96 / Each
Bussmann JM60030-1SR Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | JM60030-1SR |
| SKU #: | 2339384 |
| Amperage Rating: | 0 to 30 A, 0.1 to 30 |
| Class: | J |
| Dimensions: | 4.3 in L x 1.1 in H |
| Number of Poles: | 1 |
| Series: | JM Series |
| Suitable For Use With: | Low-Peak LPJ Series Time Delay Fuse, Low-Peak® LPJ Time Delay Fuse, Low-Peak™ LPJ Series Time Delay Fuse |
| Temperature Rating (Degrees F): | -40 to 120, -40 to 120 deg C |
| Type: | Ferrule Modular, Modular |
| Wire Size: | 32 to 10, 32 to 10 AWG |
| Connection type: | Philips Slot Screw, Phillips Slot Screw, Phillips® Slot Screw |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712514576 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$575.88 / 12Each
Typical price:$1170.96 / Each
Quantity:
- Bussmann Fuse Block, Modular, Series: JM Series, 600 V, 0 to 30 A, 1 Pole, Class: J, Phillips Slot Screw, 32 to 10 AWG Wire, DIN Rail Mount, -40 to 120 deg C, For Use With: Low-Peak LPJ Series Time Delay Fuse, Thermoplastic, 4.3 in L x 1.1 in H
JM60030-1SR Application
Electrical Assemblies, Panels and EOEMs ApplicationsJM60030-1SR Item Features
- To reduce inventory, assembly time and labor, modular 1-pole blocks snap together for toolless assembly of multiple poles at point of use
- DIN rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost
- Save panel space with the smallest width dimension on the market
- Easy circuit identification with available universal marker labels for blocks and covers
- https://www.youtube.com/watch?v=YMvqUyoETXk
JM60030-1SR Standards
CE Certified|CSA File No.47235/622501|RoHS Compliant|UL File No.E14853 Guide IZLTSKU #2339384Part Number #JM60030-1SRUNSPSC39121629UPC00051712514576
