Part Number # JM60030-3CR
SKU # 2305460
Image Disclaimers Message
JM60030-3CR

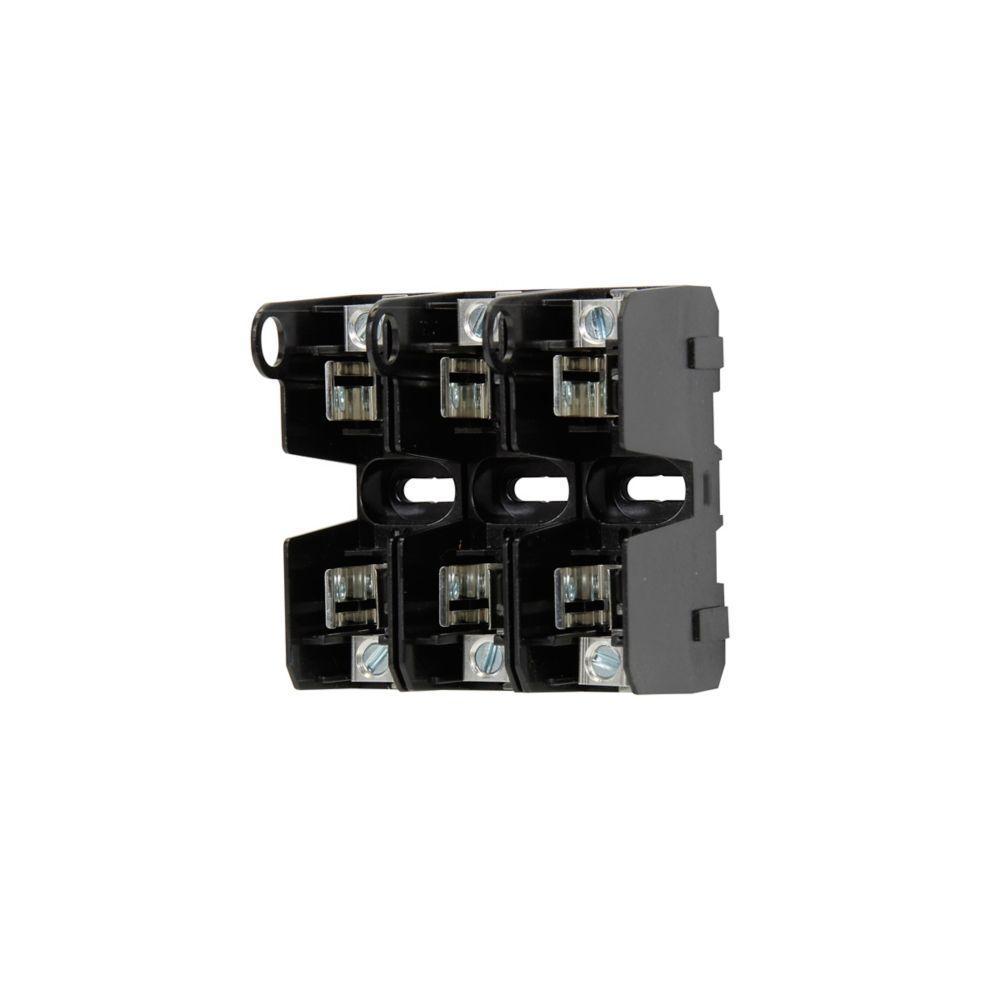

Bussmann JM60030-3CR Fuse Block
Part Number # JM60030-3CR
SKU # 2305460
$596.84 / 4Each
Typical price:$1213.72 / Each
Bussmann JM60030-3CR Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | JM60030-3CR |
| SKU #: | 2305460 |
| Amperage Rating: | 0 to 30, 0 to 30 A, 1/2 to 30 |
| Class: | J |
| Dimensions: | 4.3 in L x 3.3 in W x 2.3 in H |
| Fuse Diameter: | 0.81, 0.81 in |
| Fuse Length: | 2-1/4, 2-1/4 in |
| Number of Poles: | 3 |
| Series: | JM Series, JM600 |
| Suitable For Use With: | Low-Peak LPJ Series Time Delay, Limitron JKS, DFJ Series Ferrule Fuse, Low-Peak™ LPJ Series Time Delay, Limitron™ JKS, DFJ Series Ferrule Fuse, Low-Peak™ LPJ, Limitron™ JKS and DFJ Ferrule Fuse |
| Temperature Rating (Degrees F): | -40 to 120, -40 to 120 deg C |
| Type: | Modular |
| Wire Size: | 14 to 2 AWG Cu, 8 to 2 AWG Al, 14 to 2 AWG, 8 to 2 AWG |
| Connection type: | Box Lug/Slot Screw |
| Material: | Thermoplastic |
| Mounting type: | DIN Rail/Panel |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712514651 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$596.84 / 4Each
Typical price:$1213.72 / Each
Quantity:
- Bussmann Fuse Block, Modular, Series: JM Series, 600 V, 0 to 30 A, 3 Pole, Class: J, Box Lug/Slot Screw, 14 to 2 AWG Cu, 8 to 2 AWG Al Wire, DIN Rail/Panel Mount, 2-1/4 in Fuse Length, 0.81 in Fuse Dia, -40 to 120 deg C, For Use With: Low-Peak LPJ Series Time Delay, Limitron JKS, DFJ Series Ferrule Fuse, Thermoplastic, 4.3 in L x 3.3 in W x 2.3 in H
JM60030-3CR Application
Electrical Assemblies, Panels and EOEMs ApplicationsJM60030-3CR Item Features
- To reduce inventory, assembly time and labor, modular 1-pole blocks snap together for toolless assembly of multiple poles at point of use
- DIN rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost
- Save panel space with the smallest width dimension on the market
- Easy circuit identification with available universal marker labels for blocks and covers
- https://www.youtube.com/watch?v=YMvqUyoETXk
JM60030-3CR Standards
UL Listed ,Contact Manufacturer ,CSA Certified,RoHS Compliant,CE MarkedSKU #2305460Part Number #JM60030-3CRUNSPSC39121629UPC00051712514651
