Part Number # JM60060-1MW14
SKU # 2320481

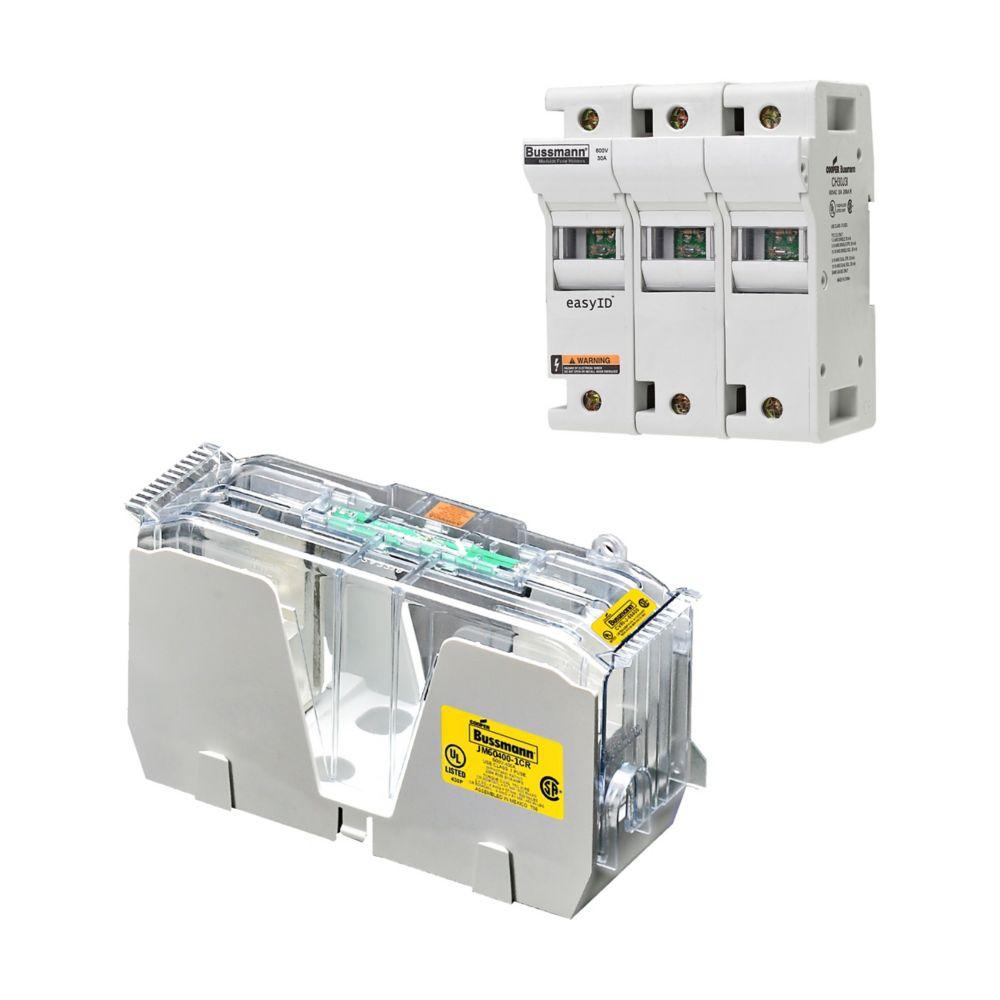

Image provided may only be a representation of
final product and may include optional equipment
JM60060-1MW14
Bussmann JM60060-1MW14 Modular Ferrule Fuse Block, 600 V, 60 A, 1 Pole
Part Number # JM60060-1MW14
SKU # 2320481
Bussmann JM60060-1MW14 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | JM60060-1MW14 |
| SKU #: | 2320481 |
| Amperage Rating: | 60 A |
| Class: | J |
| Dimensions: | 3.7 in L x 1.5 in W x 2.6 in H |
| Number of Poles: | 1 |
| Series: | JM Series |
| Temperature Rating (Degrees F): | -40 to 120 deg C |
| Type: | Modular Ferrule |
| Connection type: | Box/Load Side Lug |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Mounting type: | DIN Rail/Panel |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712620628 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann JM60060-1MW14 Modular Ferrule Fuse Block, 600 V, 60 A, 1 Pole
Brand: Bussmann
Part Number: JM60060-1MW14
Bussmann Fuse Block, Modular Ferrule, Series: JM Series, 600 V, 60 A, 1 Pole, Class: J, Box/Load Side Lug Connection, DIN Rail/Panel Mounting, -40 to 120 deg C, Thermoplastic, Black, 3.7 in L x 1.5 in W x 2.6 in H Dimensions
Additional Description: BUSS-JM60060-1MW14 (N) FUSE BLK, J 600V 60A 1P NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series JM modular fuse block, 60 A, 1P, 120°C, Class J, CVR(I)-J-60060, Black, Line: (1) 2-14 Cu, 2-8 Al, Load: (1) 8-14 Cu, (2) 12-14 Cu, (1) 8 Str Al, (1) 10 Sol Al, 200 kA, 75°C, Stranded, DIN rail, Panel, 600 V
JM60060-1MW14 Application
For Electrical Assemblies, Panels and EOEMs Applications, Panels and EOEMsJM60060-1MW14 Item Features
- To reduce inventory, assembly time and labor, modular single-pole blocks snap together for tool-less assembly of multiple poles at point of use
- DIN rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost
- Save panel space with the smallest width dimension on the market
- Standard clip reinforcing springs improve temperature rise performance while maintaining reliable surface contact between the fuse ferrule and clip over the blocks service life
- Multi-wire fuse
- https://www.youtube.com/watch?v=YMvqUyoETXk
JM60060-1MW14 Standards
RoHS Compliant|ARO|European Pressure Equipment Directive PED 97 /23 ECSKU #2320481Part Number #JM60060-1MW14UNSPSC39121629UPC00051712620628
