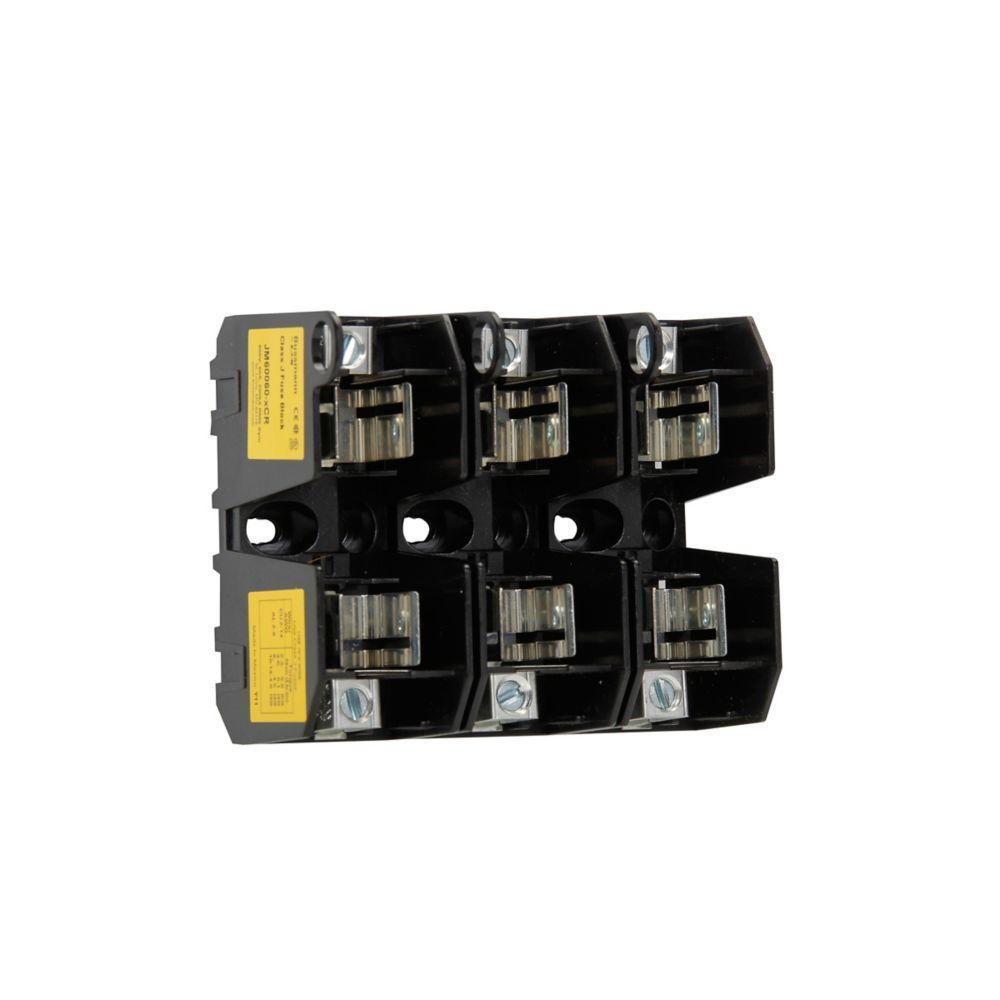

Bussmann JM60060-3CR Fuse Block
Part Number # JM60060-3CR
SKU # 2296884
$146.17 / Each
$323.09/Each
13 In Stock
Ships in 1 Business Day
Bussmann JM60060-3CR Key Features
Brand: Bussmann
Part Number # JM60060-3CR
SKU #2296884
Amperage Rating: 31 to 60, 35 to 60 A
Class: J
Dimensions: 4.7 in L x 4.5 in W x 2.6 in H
Fuse Diameter: 1.06, 1.06 in
Fuse Length: 2.38, 2.38 in
Number of Poles: 3
Series: JM Series, JM600
Suitable For Use With: Low-Peak LPJ Series Time Delay, Limitron JKS, DFJ Series Ferrule Fuse, Low-Peak™ LPJ Series Time Delay, Limitron™ JKS, DFJ Series Ferrule Fuse, Low-Peak™ LPJ, Limitron™ JKS and DFJ Ferrule Fuse
Temperature Rating (Degrees F): -40 to 120, -40 to 120 deg C
Type: Modular
Voltage Rating: 600, 600 V
Wire Size: 14 to 2 AWG Cu, 8 to 2 AWG Al, 14 to 2 AWG, 8 to 2 AWG
Connection type: Box Lug/Slot Screw
Material: Thermoplastic
Mounting type: DIN Rail/Panel
Manufacturer Name: Eaton
UNSPSC: 39121629
UPC: 00051712514682
$146.17 / Each
$323.09/Each
Bussmann JM60060-3CR Fuse Block
Brand: Bussmann
Part Number: JM60060-3CR
Bussmann Fuse Block, Modular, Series: JM Series, 600 V, 35 to 60 A, 3 Pole, Class: J, Box Lug/Slot Screw, 14 to 2 AWG Cu, 8 to 2 AWG Al Wire, DIN Rail/Panel Mount, 2.38 in Fuse Length, 1.06 in Fuse Dia, -40 to 120 deg C, For Use With: Low-Peak LPJ Series Time Delay, Limitron JKS, DFJ Series Ferrule Fuse, Thermoplastic, 4.7 in L x 4.5 in W x 2.6 in H
Additional Description: BUSS-JM60060-3CR Class J fuse block 600V 60A 3 pole pole
Catalog Description: Eaton Bussmann series JM modular fuse block, CR, 35-60 A, Three-pole, Class J, Box lug, 200 kAIC, 600 V
JM60060-3CR Application
Electrical Assemblies, Panels and EOEMs ApplicationsJM60060-3CR Item Features
- To reduce inventory, assembly time and labor, modular 1-pole blocks snap together for toolless assembly of multiple poles at point of use
- DIN rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost
- Save panel space with the smallest width dimension on the market
- Easy circuit identification with available universal marker labels for blocks and covers
- https://www.youtube.com/watch?v=YMvqUyoETXk
JM60060-3CR Standards
CE Certified|CSA File No.47235 Guide IZLT|RoHS Compliant|UL File No.E14853SKU #2296884Part Number #JM60060-3CRUNSPSC39121629UPC00051712514682
