Part Number # JM60100-3CR
SKU # 2247987
Image Disclaimers Message
Brand: Bussmann
JM60100-3CR

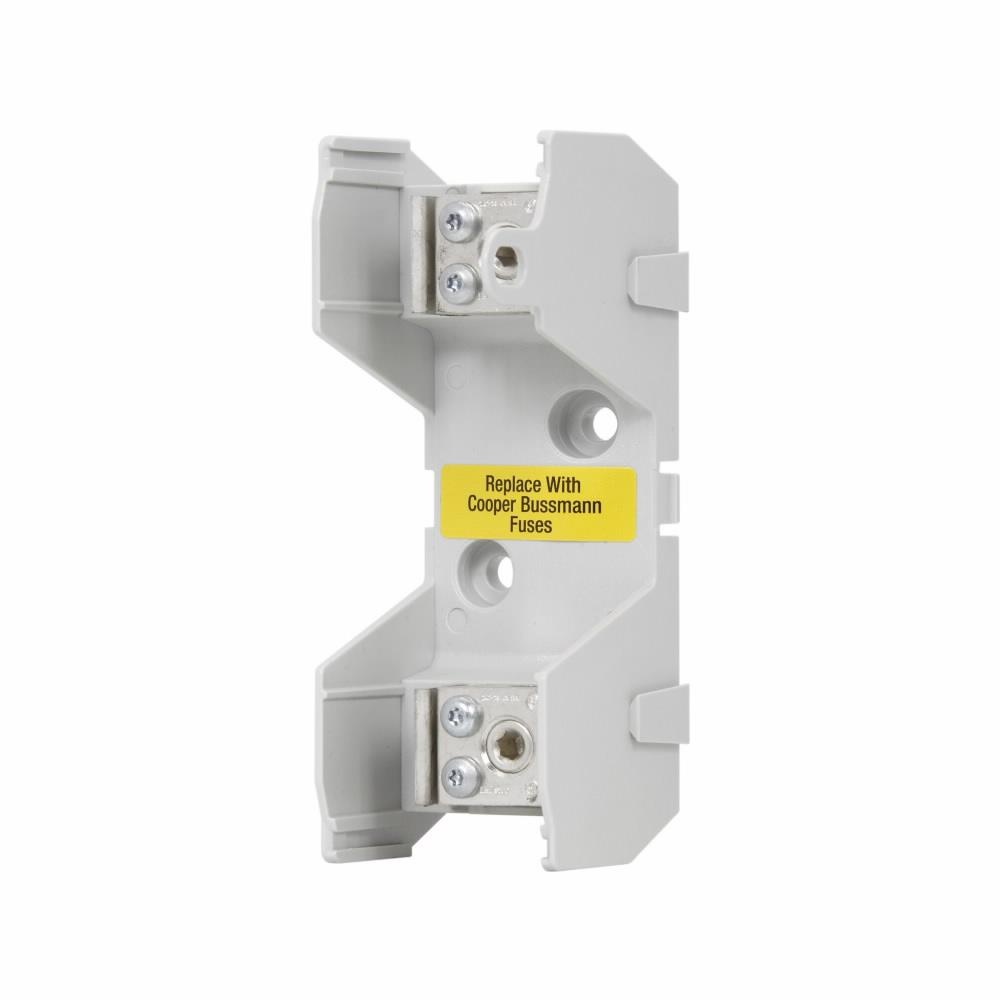

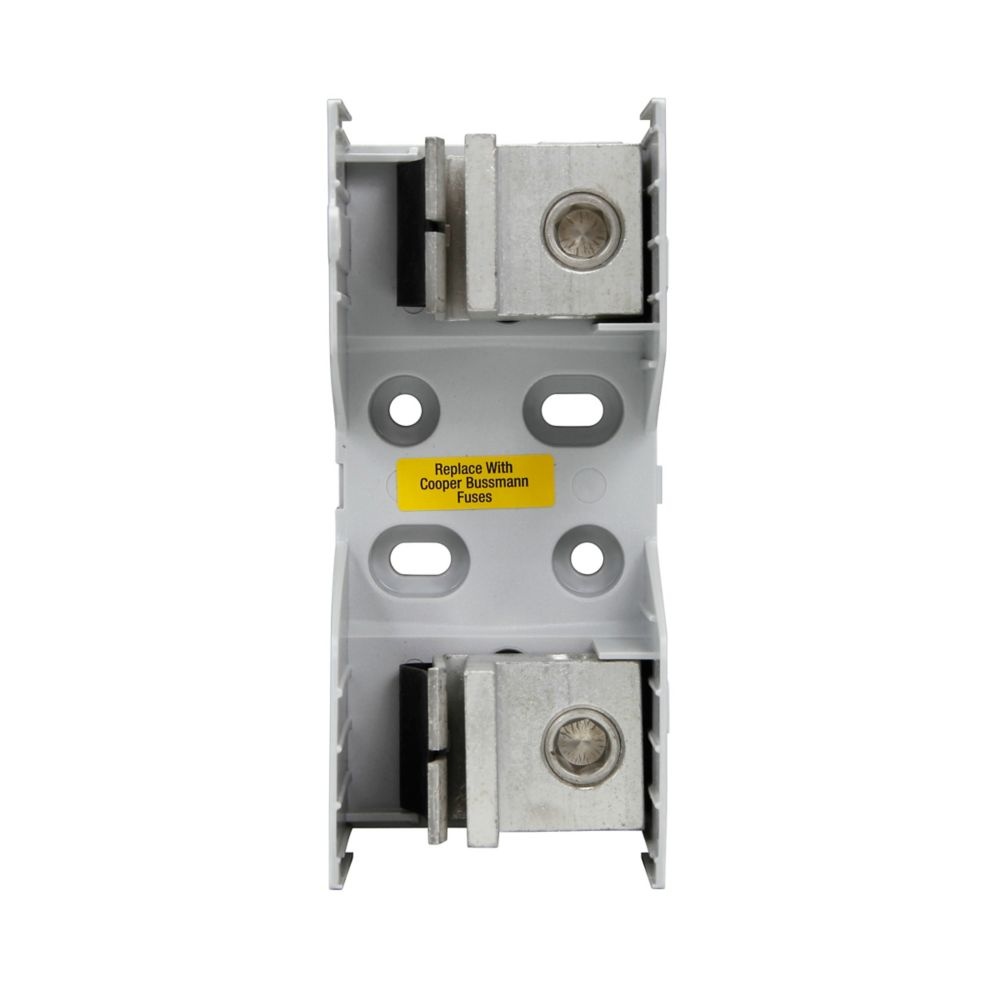

Bussmann JM60100-3CR Fuse Block
Part Number # JM60100-3CR
SKU # 2247987
$446.34 / 2Each
Typical price:$907.64 / Each
Bussmann JM60100-3CR Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | JM60100-3CR |
| SKU #: | 2247987 |
| Amperage Rating: | 70 to 100, 70 to 100 A |
| Class: | J |
| Dimensions: | 5.5 in L x 6 in W x 2.8 in H, 6 in L x 6 in W x 2.8 in H |
| Fuse Diameter: | 1.13 |
| Fuse Length: | 4.63 |
| Number of Poles: | 3 |
| Series: | JM600 |
| Suitable For Use With: | Knife Blade Cartridge Fuse, Low-Peak™ LPJ, Limitron™ JKS and DFJ Knife Blade Fuse |
| Temperature Rating (Degrees F): | -40 to 120, -40 to 120 deg C |
| Wire Size: | 1 to 3 AWG, 4 to 6 AWG, 8 AWG, 14 to 1/0 |
| Connection type: | Box Lug |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Mounting type: | Hole, Panel |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712391269 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$446.34 / 2Each
Typical price:$907.64 / Each
Quantity:
- Bussmann Fuse Block, 600 V AC, 70 to 100 A, 3 Poles, Class: J, 1 to 3 AWG, 4 to 6 AWG, 8 AWG Wire, Hole Mount, -40 to 120 deg C, For Use With: Knife Blade Cartridge Fuse, Thermoplastic, 6 in L x 6 in W x 2.8 in H
JM60100-3CR Application
Electrical Assemblies, Panels and EOEMs ApplicationsJM60100-3CR Item Features
- Integral dovetails allow assembly of multiple poles at point-of-use for greater application flexibility
- Up to four mounting holes per pole increase installation flexibility
- Standard phase barriers between poles for additional safety
- Design meets UL creep and clearance requirements for industrial power circuits (UL 508 and UL 845)
- 200 to 600 A blocks meet the higher UL creep and clearance requirements for power distribution standards (UL 98, UL 67, UL 489, UL 891 and UL 869A)
- Standard fuse clip reinforcing springs enhance electrical contact
- 1/0 to 3 AWG, (2) 4 to 6 AWG copper, 4 to 6 AWG, (2) 8 AWG copper, 8 AWG, (2) 10 to 14 AWG copper, 10 to 14 AWG copper, 10 to 12 AWG aluminum solid and stranded wire
- https://www.youtube.com/watch?v=YMvqUyoETXk
JM60100-3CR Standards
UL Listed|cULus File No. E14853|CSA Certified|UL94 V-0 Flammability RatingSKU #2247987Part Number #JM60100-3CRUNSPSC39121629UPC00051712391269
