Part Number # JM60200-2CR
SKU # 2327425
JM60200-2CR

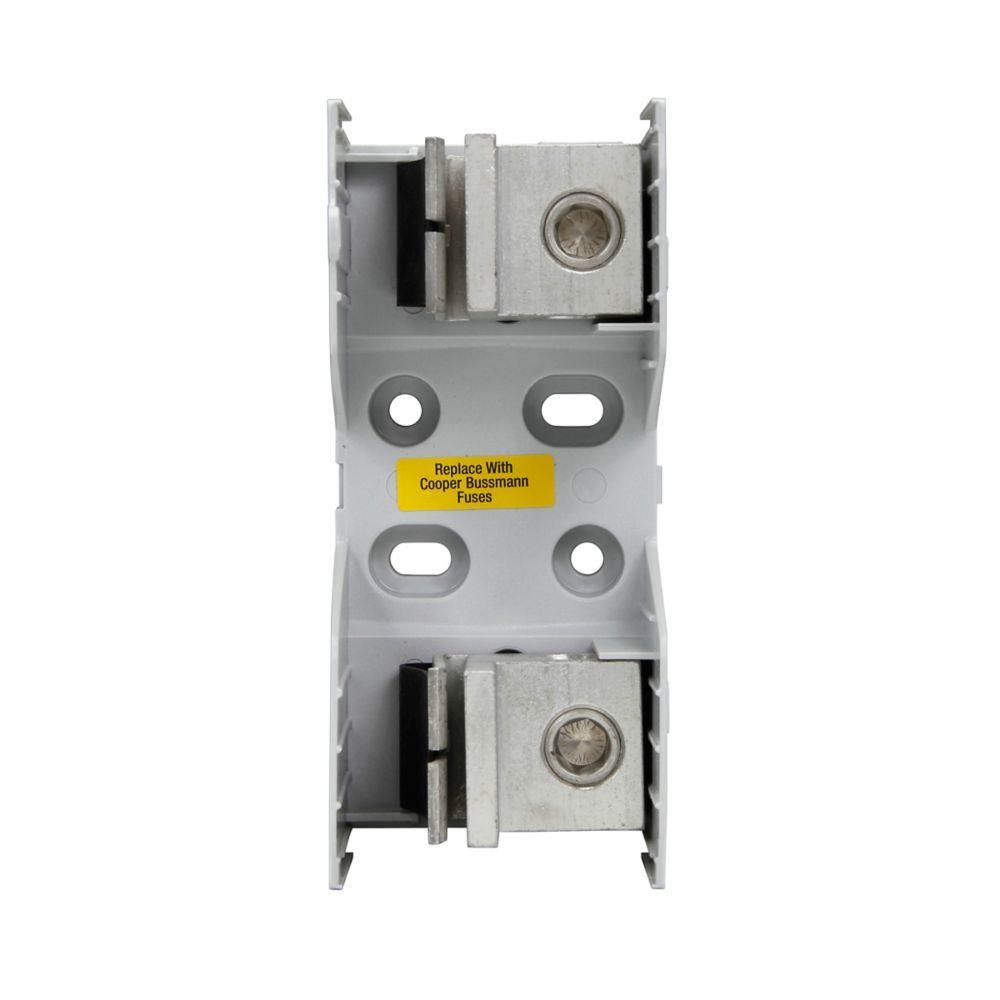

Bussmann JM60200-2CR Fuse Block
Part Number # JM60200-2CR
SKU # 2327425
Bussmann JM60200-2CR Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | JM60200-2CR |
| SKU #: | 2327425 |
| Dimensions: | 7.3 in L x 5.3 in W x 3.8 in H |
| Type: | Modular |
| Wire Size: | 1 AWG to 250 kcmil, 2 to 6 AWG, (2) 2 to 6 AWG Cu Solid/Stranded, 1 to 3/0 AWG, 6 to 2 AWG Cu Fine Stranded |
| Mounting type: | Hole |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712387408 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann JM60200-2CR Fuse Block
Brand: Bussmann
Part Number: JM60200-2CR
Bussmann Fuse Block, Modular, Series: JM Series, 600 V, 110 to 200 A, 2 Pole, Class: J, Knife Blade End, 1 AWG to 250 kcmil, 2 to 6 AWG, (2) 2 to 6 AWG Cu Solid/Stranded, 1 to 3/0 AWG, 6 to 2 AWG Cu Fine Stranded Wire, Hole Mount, -40 to 120 deg C, For Use With: Knife Blade Cartridge Fuse, Thermoplastic, 7.3 in L x 5.3 in W x 3.8 in H
Additional Description: BUSS-JM60200-2CR (N) 200 amp class J fuse holder 600V 2 pole NON-CANCELABLE, NON-RETURNABLE 2 pol
Catalog Description: Eaton Bussmann series JM modular fuse block, CR, 110-200 A, Two-pole, Class J, 200 kA, Knife blade end x knife blade end, 200 kAIC, 600 V
JM60200-2CR Application
Electrical Assemblies, Panels and EOEMs ApplicationsJM60200-2CR Item Features
- Integral dovetails allow assembly of multiple poles at point-of-use for greater application flexibility
- Up to four mounting holes per pole increase installation flexibility
- Standard phase barriers between poles for additional safety
- Design meets UL creep and clearance requirements for industrial power circuits
- 200 to 600 A blocks meet the higher UL creep and clearance requirements for power distribution standards
- Standard fuse clip reinforcing springs enhance electrical contact
- https://www.youtube.com/watch?v=YMvqUyoETXk
JM60200-2CR Standards
UL Listed ,CSA Certified ,Contact Manufacturer,RoHS Compliant,CE MarkedSKU #2327425Part Number #JM60200-2CRUNSPSC39121629UPC00051712387408
Image provided may only be a representation of final product and may include optional equipment
