Brand: Bussmann

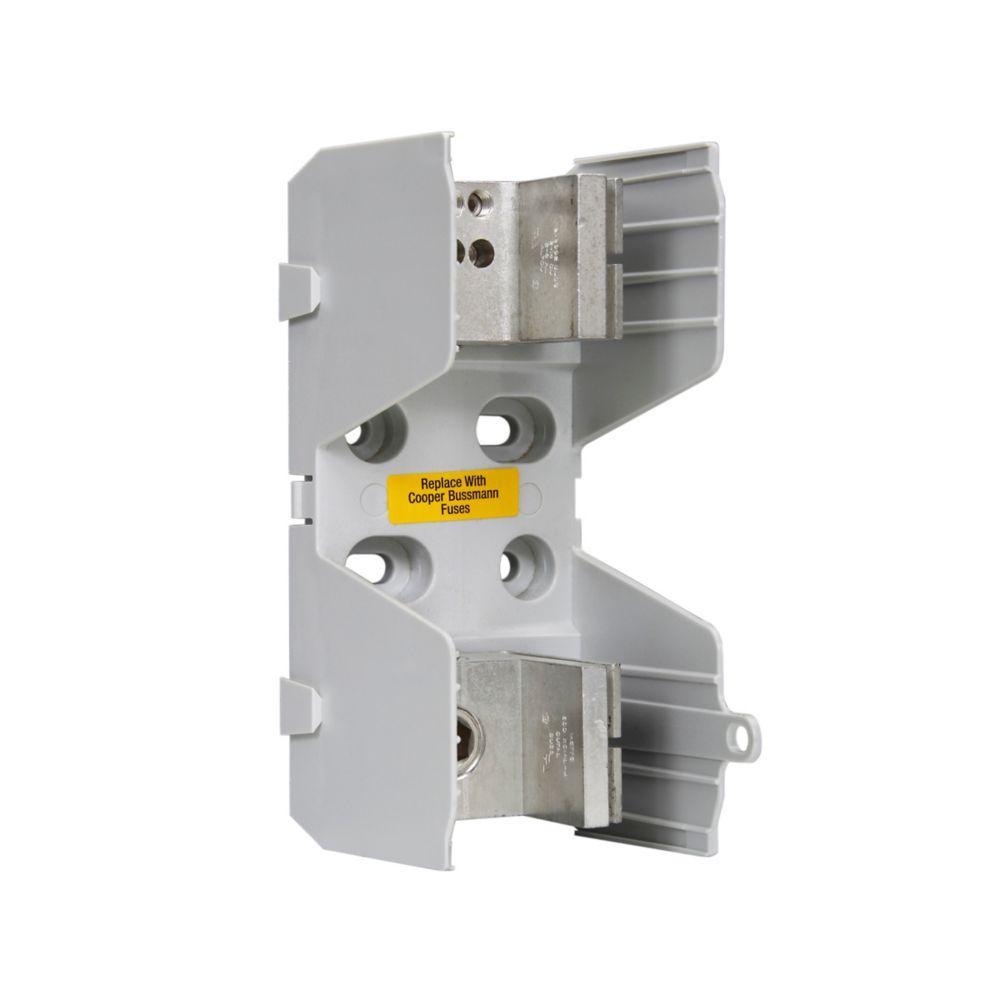

Bussmann JM60400-1MW16 Fuse Block
Part Number # JM60400-1MW16
SKU # 2320416
$626.03 / Each
$1273.03/Each
Bussmann JM60400-1MW16 Key Features
Brand: Bussmann
Part Number # JM60400-1MW16
SKU #2320416
Amperage Rating: 225 to 400, 225 to 400 A
Class: J
Dimensions: 8 in L x 3.5 in W x 4.8 in H
Fuse Diameter: 2
Fuse Length: 7.13
Number of Poles: 1
Series: JM Series, JM600
Suitable For Use With: Low-Peak Limitron DFJ Series Drive Cartridge Fuse, Low-Peak™ LPJ, Limitron™ JKS and DFJ Knife Blade Fuse, Low-Peak™ Limitron™ DFJ Series Drive Cartridge Fuse, Low-Peak™, Limitron™ and DFJ Drive Cartridge Fuse
Temperature Rating (Degrees F): -40 to 120, -40 to 120 deg C
Type: Modular
Voltage Rating: 600, 600 V
Wire Size: (1) 4 AWG to 600 kcmil Cu/Al Line, (6) 14 to 2 AWG Cu, 8 to 2 AWG Al, (12) 14 to 8 AWG Cu, 8 AWG Al Load, 4 AWG to 600 kcmil
Color: Gray
Connection type: Lug
Country of origin: MX
Material: Thermoplastic
Mounting type: Panel, Surface
Manufacturer Name: Eaton
UNSPSC: 39121629
UPC: 00051712491136
$626.03 / Each
$1273.03/Each
- Bussmann Fuse Block, Modular, Series: JM Series, 600 V, 225 to 400 A, 1 Pole, Class: J, (1) 4 AWG to 600 kcmil Cu/Al Line, (6) 14 to 2 AWG Cu, 8 to 2 AWG Al, (12) 14 to 8 AWG Cu, 8 AWG Al Load Wire, Surface Mount, -40 to 120 deg C, For Use With: Low-Peak Limitron DFJ Series Drive Cartridge Fuse, Thermoplastic, 8 in L x 3.5 in W x 4.8 in H
JM60400-1MW16 Application
Power Distribution, Electrical Assemblies, Panels and EOEMs ApplicationsJM60400-1MW16 Item Features
- Combination power distribution block and fuse block reduces wire connections and total panel components, using 50% less panel space and reducing installation time and labor by 33%
- A 200 kA withstand rating helps achieve a higher assembly short circuit current rating (SCCR) for compliance with NEC sections 110.10/409.110(4)/409.22/440.4(B)/670.3(A)(4)/670.5
- https://www.youtube.com/watch?v=YMvqUyoETXk
JM60400-1MW16 Standards
CSA File No.47235/6225-01|RoHS Compliant|UL File No.E14853 Guide IZLT2|UL 94 V-0 Flammability RatingSKU #2320416Part Number #JM60400-1MW16UNSPSC39121629UPC00051712491136
