Part Number # JM60400-2CR
SKU # 2416946
Image Disclaimers Message
JM60400-2CR

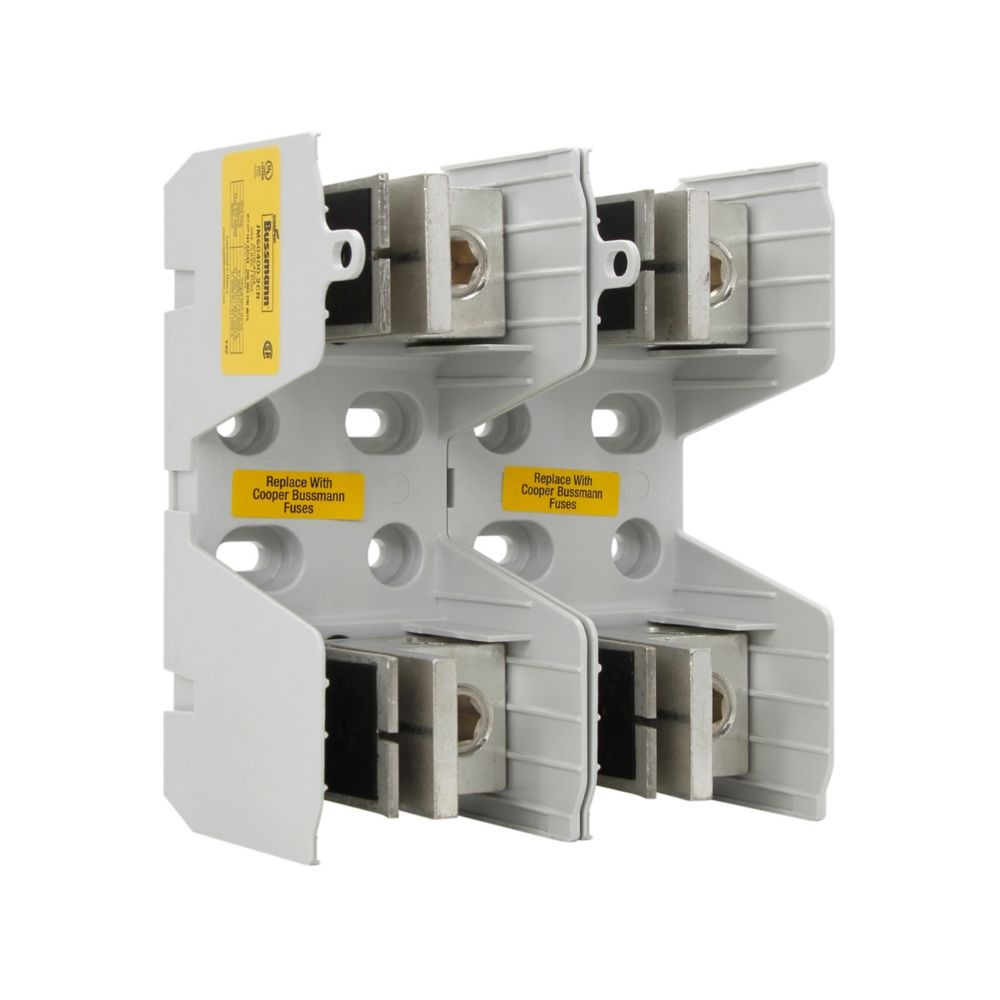

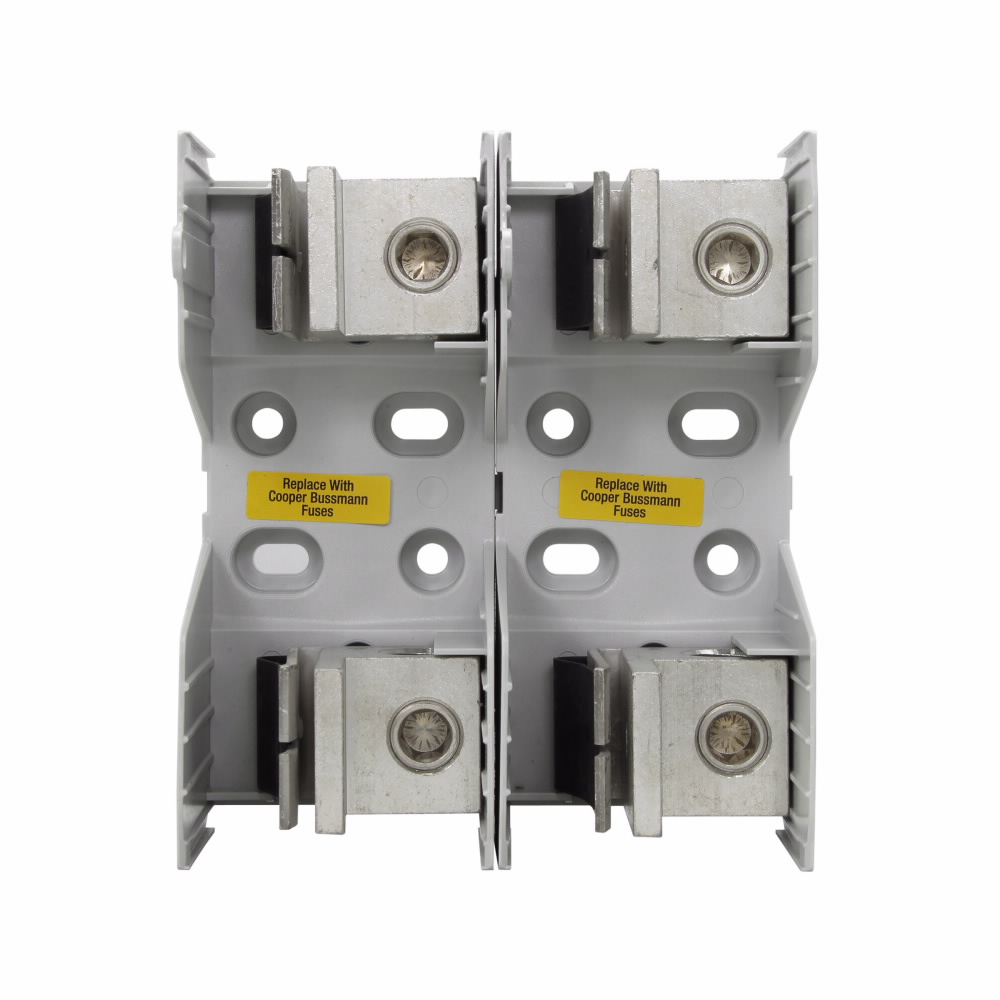

Bussmann JM60400-2CR Edison Fuse Block
Part Number # JM60400-2CR
SKU # 2416946
$1303.47 / Each
Typical price:$2650.61 / Each
Bussmann JM60400-2CR Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | JM60400-2CR |
| SKU #: | 2416946 |
| Amperage Rating: | 225 to 400 A, 400 A |
| Class: | J |
| Dimensions: | 7.9 in L x 7.1 in W, 8.7 in L x 7 in W x 4.9 in H |
| Number of Poles: | 2 |
| Series: | JM Series |
| Suitable For Use With: | Knife Blade Cartridge Fuse |
| Temperature Rating (Degrees F): | -40 to 120 deg C |
| Type: | Knife Blade, Modular |
| Wire Size: | 4 AWG to 500 kcmil, 600 kcmil, (2) 4 to 3/0 AWG Al Solid/Stranded |
| Connection type: | Knife Blade End |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Mounting type: | DIN Rail/Panel, Hole |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712387040 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1303.47 / Each
Typical price:$2650.61 / Each
Quantity:
- Bussmann Fuse Block, Modular, Series: JM Series, 600 V, 225 to 400 A, 2 Pole, Class: J, Knife Blade End, 600 kcmil, (2) 4 to 3/0 AWG Al Solid/Stranded Wire, Hole Mount, -40 to 120 deg C, For Use With: Knife Blade Cartridge Fuse, Thermoplastic, 8.7 in L x 7 in W x 4.9 in H
JM60400-2CR Application
Electrical Assemblies, Panels and EOEMs ApplicationsJM60400-2CR Item Features
- Integral dovetails allow assembly of multiple poles at point-of-use for greater application flexibility
- Up to four mounting holes per pole increase installation flexibility
- Standard phase barriers between poles for additional safety
- Design meets UL creep and clearance requirements for industrial power circuits
- 200 to 600 A blocks meet the higher UL creep and clearance requirements for power distribution standards
- Standard fuse clip reinforcing springs enhance electrical contact
- https://www.youtube.com/watch?v=YMvqUyoETXk
JM60400-2CR Standards
CSA Certified|cULus File No.E14853|RoHS Compliant|UL 94-V-0 Flammability RatingSKU #2416946Part Number #JM60400-2CRUNSPSC39121629UPC00051712387040
