JM60400-2MW16

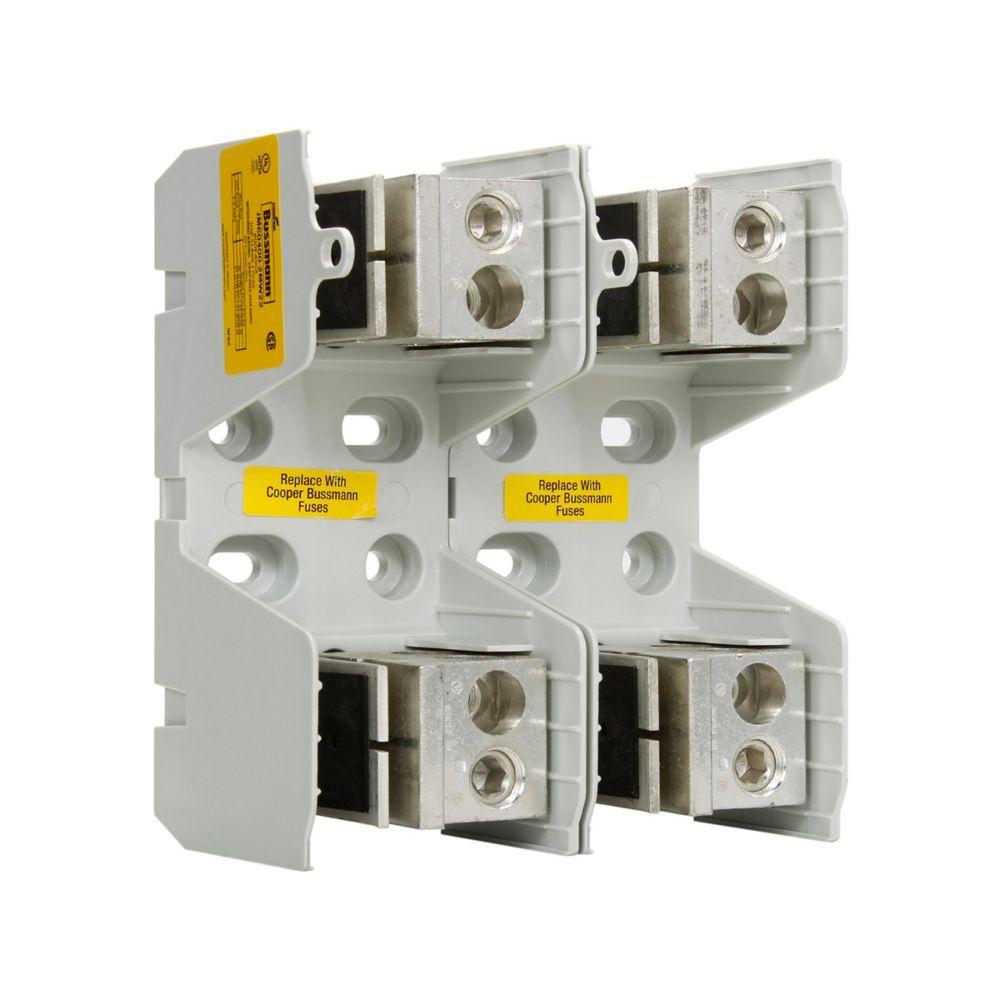

Bussmann JM60400-2MW16 Fuse Block
Part Number # JM60400-2MW16
SKU # 2320417
$1448.77 / Each
Typical price:$2946.08 / Each
Bussmann JM60400-2MW16 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | JM60400-2MW16 |
| SKU #: | 2320417 |
| Amperage Rating: | 225 to 400, 225 to 400 A |
| Class: | J |
| Dimensions: | 8 in L x 4.8 in W x 3.5 in H |
| Number of Poles: | 2 |
| Series: | JM Series |
| Temperature Rating (Degrees F): | -40 to 120, -40 to 120 deg C |
| Type: | Modular, Power Distribution |
| Wire Size: | 4 AWG to 600 kcmil, 14 to 2 AWG, 8 to 2 AWG, 14 to 8 AWG, 8 AWG |
| Color: | Gray |
| Connection type: | Wired |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Mounting type: | DIN Rail/Panel |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712491143 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1448.77 / Each
Typical price:$2946.08 / Each
Quantity:
- Bussmann Fuse Block, Modular, Series: JM Series, 600 V, 225 to 400 A, 2 Pole, Class: J, Wired, 4 AWG to 600 kcmil, 14 to 2 AWG, 8 to 2 AWG, 14 to 8 AWG, 8 AWG Wire, DIN Rail/Panel Mount, -40 to 120 deg C, Thermoplastic, Gray, 8 in L x 4.8 in W x 3.5 in H
JM60400-2MW16 Application
Electrical Assemblies, Panels and EOEMs ApplicationsJM60400-2MW16 Item Features
- Combination power distribution block and fuse block reduces wire connections and total panel components, using up to 57% less panel space and reducing installation time and labor by an average of 33% when compared with traditional fuse block/power distribution block solutions
- A 200 kA withstand rating helps achieve a higher assembly short circuit current rating (SCCR) for compliance with NEC sections 110.10/409.110(4)/409.22/440.4(B)/670.3(A)(4)/670.5
- To reduce inventory, assembly time and labor, modular 1-pole blocks snap together for toolless assembly of multiple poles at point of use
- DIN rail and panel mount versatility allows one product to be used for multiple applications without incurring additional inventory cost
- (1) 4 AWG to 600 kcmil copper/aluminum line side, (6) 14 to 2 AWG copper, 8 to 2 AWG aluminum, (12) 14 to 8 AWG copper, 8 AWG aluminum load side wire
- https://www.youtube.com/watch?v=YMvqUyoETXk
JM60400-2MW16 Standards
Contact Manufacturer ,UL Listed ,CSA Certified,RoHS Compliant,CE MarkedSKU #2320417Part Number #JM60400-2MW16UNSPSC39121629UPC00051712491143
