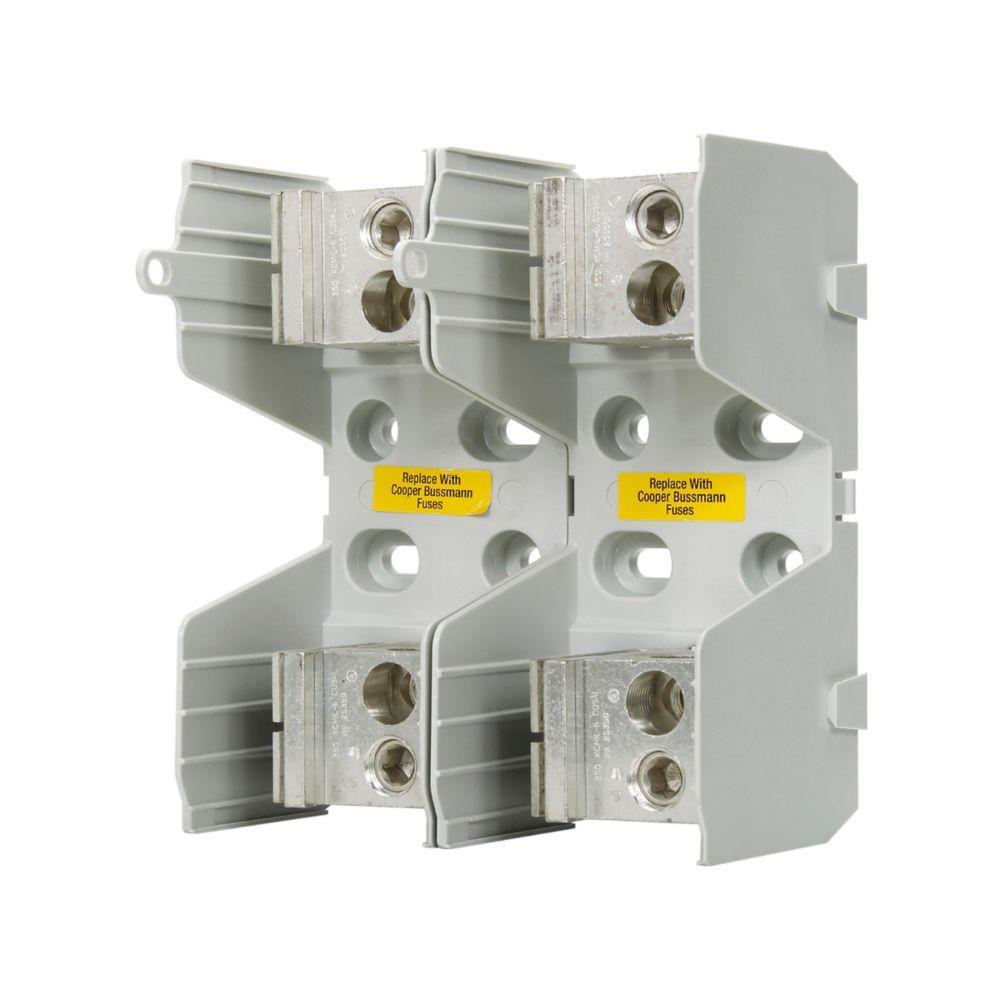

Bussmann JM60400-2MW26 Fuse Block
Part Number # JM60400-2MW26
SKU # 2320419
$1481.51 / Each
$3012.66/Each
Bussmann JM60400-2MW26 Key Features
Brand: Bussmann
Part Number # JM60400-2MW26
SKU #2320419
Amperage Rating: 225 to 400, 225 to 400 A
Class: J
Dimensions: 8 in L x 4.8 in W x 3.5 in H
Number of Poles: 2
Series: JM Series
Temperature Rating (Degrees F): -40 to 120, -40 to 120 deg C
Type: Modular, Power Distribution
Voltage Rating: 600, 600 V
Wire Size: 6 AWG to 350 kcmil, 14 to 2 AWG, 8 to 2 AWG, 14 to 8 AWG, 8 AWG
Color: Gray
Connection type: Wired
Country of origin: MX
Material: Thermoplastic
Mounting type: DIN Rail/Panel
Manufacturer Name: Eaton
UNSPSC: 39121629
UPC: 00051712491174
$1481.51 / Each
$3012.66/Each
- Bussmann Fuse Block, Modular, Series: JM Series, 600 V, 225 to 400 A, 2 Pole, Class: J, Wired, 6 AWG to 350 kcmil, 14 to 2 AWG, 8 to 2 AWG, 14 to 8 AWG, 8 AWG Wire, DIN Rail/Panel Mount, -40 to 120 deg C, Thermoplastic, Gray, 8 in L x 4.8 in W x 3.5 in H
JM60400-2MW26 Application
Electrical Assemblies, Panels and EOEMs ApplicationsJM60400-2MW26 Item Features
- Combination power distribution block and fuse block reduces wire connections and total panel components, using up to 57% less panel space and reducing installation time and labor by an average of 33% when compared with traditional fuse block/power distribution block solutions
- A 200 kA withstand rating helps achieve a higher assembly short circuit current rating (SCCR) for compliance with NEC sections 110.10/409.110(4)/409.22/440.4(B)/670.3(A)(4)/670.5
- To reduce inventory, assembly time and labor, modular 1-pole blocks snap together for toolless assembly of multiple poles at point of use
- DIN rail and panel mount versatility allows one product to be used for multiple applications without incurring additional inventory cost
- (2) 6 AWG to 350 kcmil copper/aluminum line side, (6) 14 to 2 AWG copper, 8 to 2 AWG aluminum, (12) 14 to 8 AWG copper, 8 AWG aluminum load side wire
- https://www.youtube.com/watch?v=YMvqUyoETXk
JM60400-2MW26 Standards
CSA File No.47235/622501|RoHS Compliant|UL File No.E14853 Guide EZLTSKU #2320419Part Number #JM60400-2MW26UNSPSC39121629UPC00051712491174
