Brand: Bussmann
JM60400-3MW26

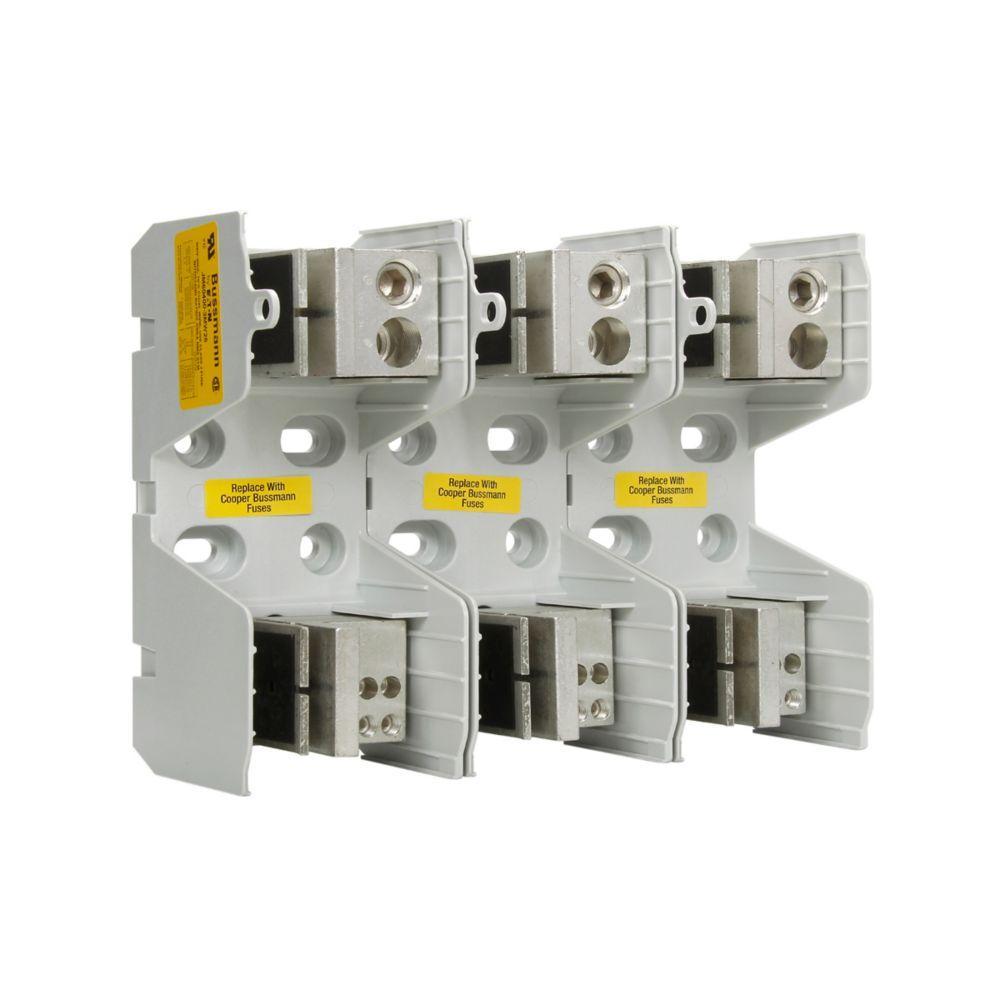

Bussmann JM60400-3MW26 Fuse Block
Part Number # JM60400-3MW26
SKU # 2320420
$2375.44 / Each
Typical price:$4830.46 / Each
Bussmann JM60400-3MW26 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | JM60400-3MW26 |
| SKU #: | 2320420 |
| Amperage Rating: | 225 to 400, 225 to 400 A |
| Class: | J |
| Dimensions: | 8 in L x 10.6 in W x 4.8 in H |
| Fuse Diameter: | 2 |
| Fuse Length: | 7.13 |
| Number of Poles: | 3 |
| Series: | JM Series, JM600 |
| Suitable For Use With: | Low-Peak Limitron DFJ Series Drive Cartridge Fuse, Low-Peak™ LPJ, Limitron™ JKS and DFJ Knife Blade Fuse, Low-Peak™ Limitron™ DFJ Series Drive Cartridge Fuse, Low-Peak™, Limitron™ and DFJ Drive Cartridge Fuse |
| Temperature Rating (Degrees F): | -40 to 120, -40 to 120 deg C |
| Type: | Modular |
| Wire Size: | (1) 1 AWG to 350 kcmil Cu/Al Line, (6) 14 to 2 AWG Cu, 8 to 2 AWG Al, (12) 14 to 8 AWG Cu, 8 AWG Al Load, 6 AWG to 350 kcmil |
| Color: | Gray |
| Connection type: | Lug |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Mounting type: | Panel, Surface |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712491181 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2375.44 / Each
Typical price:$4830.46 / Each
Quantity:
- Bussmann Fuse Block, Modular, Series: JM Series, 600 V, 225 to 400 A, 3 Pole, Class: J, (1) 1 AWG to 350 kcmil Cu/Al Line, (6) 14 to 2 AWG Cu, 8 to 2 AWG Al, (12) 14 to 8 AWG Cu, 8 AWG Al Load Wire, Surface Mount, -40 to 120 deg C, For Use With: Low-Peak Limitron DFJ Series Drive Cartridge Fuse, Thermoplastic, 8 in L x 10.6 in W x 4.8 in H
JM60400-3MW26 Application
Power Distribution, Electrical Assemblies, Panels and EOEMs ApplicationsJM60400-3MW26 Item Features
- Combination power distribution block and fuse block reduces wire connections and total panel components, using 50% less panel space and reducing installation time and labor by 33%
- A 200 kA withstand rating helps achieve a higher assembly short circuit current rating (SCCR) for compliance with NEC sections 110.10/409.110(4)/409.22/440.4(B)/670.3(A)(4)/670.5
- https://www.youtube.com/watch?v=YMvqUyoETXk
JM60400-3MW26 Standards
CSA File No.47235/6225-01|RoHS Compliant|UL File No.E14853 Guide IZLT2|UL 94 V-0 Flammability RatingSKU #2320420Part Number #JM60400-3MW26UNSPSC39121629UPC00051712491181
