Brand: Bussmann

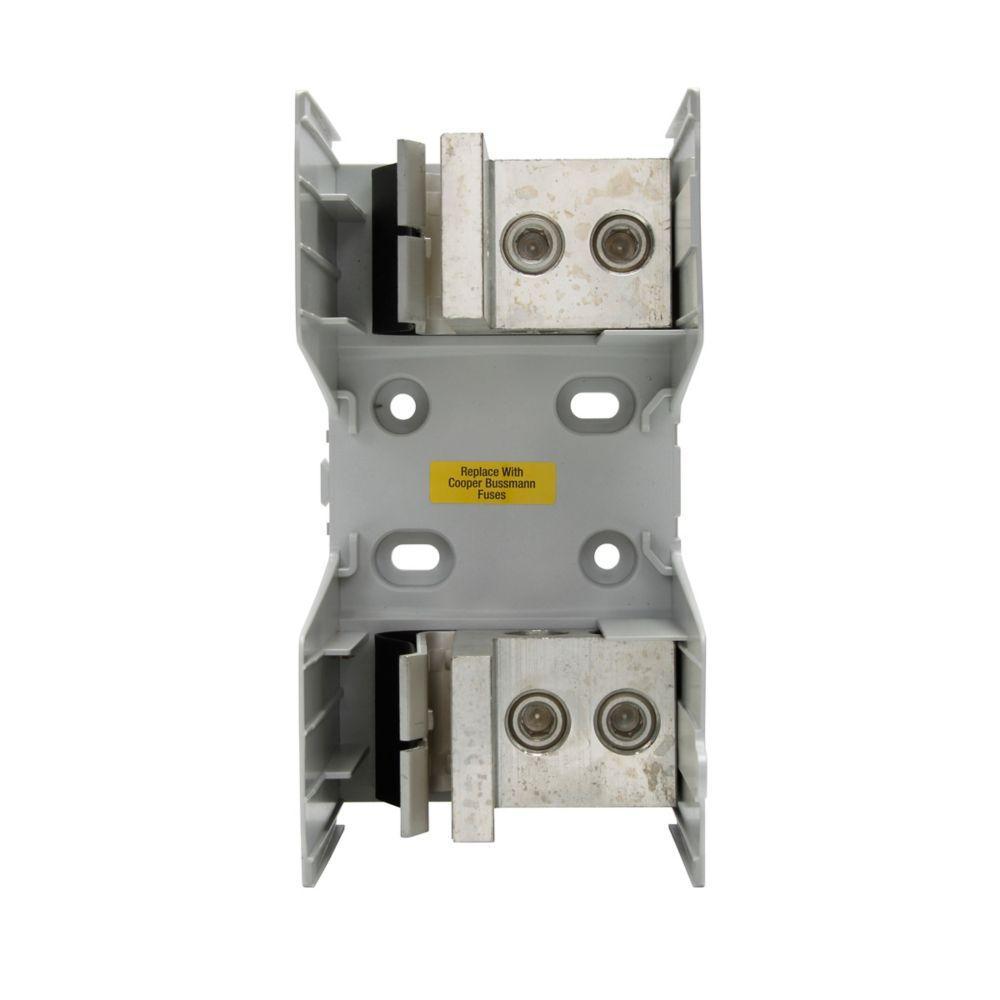

Bussmann JM60600-3CR Fuse Block
Part Number # JM60600-3CR
SKU # 2265786
$2823.67 / Each
Bussmann JM60600-3CR Key Features
Brand: Bussmann
Part Number # JM60600-3CR
SKU #2265786
Amperage Rating: 450 to 600, 450 to 600 A
Class: J
Dimensions: 9.25 in L x 6 in W x 14 in H, 9.3 in L x 14.3 in W x 6 in H
Fuse Diameter: 2-1/2
Fuse Length: 8
Number of Poles: 3
Series: JM Series, JM600
Suitable For Use With: Knife Blade Cartridge Fuse, Low-Peak™ LPJ, Limitron™ JKS and DFJ Knife Blade Fuse
Temperature Rating (Degrees F): -40 to 120, -40 to 120 deg C
Type: Modular
Voltage Rating: 600, 600 V
Wire Size: 4 AWG to 500 kcmil
Connection type: Box Lug, Knife Blade End
Material: Thermoplastic
Mounting type: Hole, Panel
Manufacturer Name: Eaton
UNSPSC: 39121629
UPC: 00051712391115
$2823.67 / Each
Bussmann JM60600-3CR Fuse Block
Brand: Bussmann
Part Number: JM60600-3CR
Bussmann Fuse Block, Modular, Series: JM Series, 600 V, 450 to 600 A, 3 Pole, Class: J, Knife Blade End, 4 AWG to 500 kcmil Wire, Hole Mount, -40 to 120 deg C, For Use With: Knife Blade Cartridge Fuse, Thermoplastic, 9.25 in L x 6 in W x 14 in H
Additional Description: BUSS-JM60600-3CR 600 amp class J fuse holder 600V 3 pole
Catalog Description: Eaton Bussmann series JM modular fuse block, CR, 450-600 A, Three-pole, Class J, Knife blade end x knife blade end, 200 kAIC, 600 V
JM60600-3CR Application
Electrical Assemblies, Panels and EOEMs ApplicationsJM60600-3CR Item Features
- Integral dovetails allow assembly of multiple poles at point-of-use for greater application flexibility
- Up to four mounting holes per pole increase installation flexibility
- Standard phase barriers between poles for additional safety
- Design meets UL creep and clearance requirements for industrial power circuits
- 200 to 600 A blocks meet the higher UL creep and clearance requirements for power distribution standards
- Standard fuse clip reinforcing springs enhance electrical contact
- https://www.youtube.com/watch?v=YMvqUyoETXk
JM60600-3CR Standards
CSA Certified|cULus File No.E14853|RoHS Compliant|UL 94-V-0 Flammability RatingSKU #2265786Part Number #JM60600-3CRUNSPSC39121629UPC00051712391115
