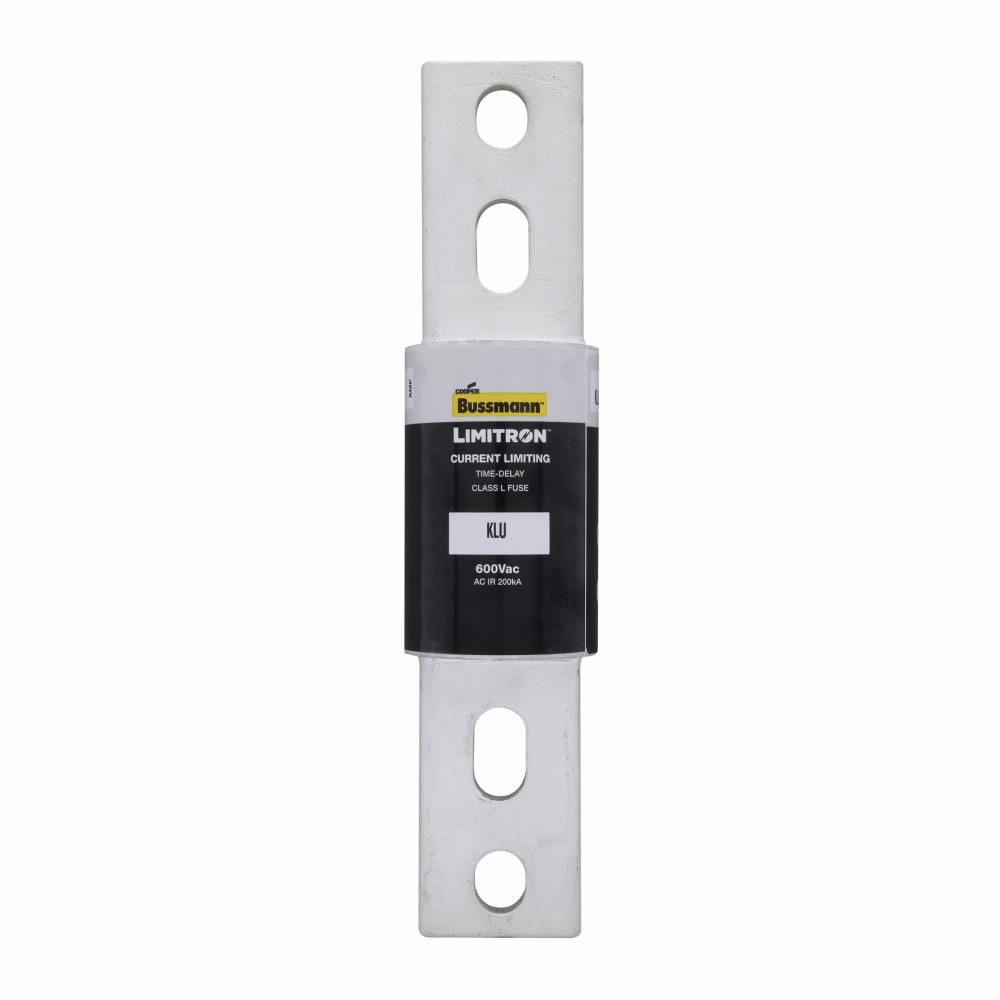

Bussmann KLU-1200 Limitron Fuse
Part Number # KLU-1200
SKU # 2408427
$1829.53 / Each
Bussmann KLU-1200 Key Features
Brand: Bussmann
Part Number # KLU-1200
SKU #2408427
Amperage Rating: 1200 A
Body Type: Cartridge
Class: L
Indicating/Non-Indicating: Non-Indicating
Interrupt Rating: 200 kAIC
Rejection/Non-Rejection: Non-Rejection
Response Time: 5 s at 500%
Series: KLU
Terminal Type: Bolted Blade End
Type: Current Limiting Time Delay
Voltage Rating: 600 V
Material: Fiberglass/Melamine
Mounting type: Bolted-On
Manufacturer Name: Eaton
UNSPSC: 39121626
UPC: 00051712135078
$1829.53 / Each
Bussmann KLU-1200 Limitron Fuse
Brand: Bussmann
Part Number: KLU-1200
Bussmann Limitron Fuse, Current Limiting Time Delay, Series: KLU, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 1200 A, 600 V, 200 kAIC Interrupt, Class: L, 5 s at 500% Response, Bolted Blade End Terminal, Bolted-On Mount, Cartridge Body, Dual Element, Fiberglass/Melamine, 2-1/2 in Dia x 10-3/4 in L Body Size
Additional Description: BUSS-KLU-1200 LIMITRON TIME DELAY FUSE
Catalog Description: Eaton Bussmann Series Class L fuse, KLU, fast-acting, current limiting fuse, 1200 A, bladable fuse, interrupting rating of 200 kA, 600 Vac
KLU-1200 Application
Industrial Facilities and Factories, Safety and Security Systems, Large Distribution Switchboards, Large Machinery Disconnects, Power Panelboards and General Purpose ApplicationsKLU-1200 Item Features
- Copper links result in a minimum 5 s time delay at 500% ampere rating
- Current limiting - provides component short circuit protection
- 200 kA interrupt rating complies with NEC section 110.9/230.65 in todays large capacity systems
- Selective coordination (blackout prevention)
- https://www.youtube.com/watch?v=YMvqUyoETXk
KLU-1200 Standards
CE Certified|CSA C22.2 File No.53787/248.1|NEC 110.9/230.65|RoHS Compliant|UL 248-10 File No.E4273 Guide JDDZSKU #2408427Part Number #KLU-1200UNSPSC39121626UPC00051712135078
