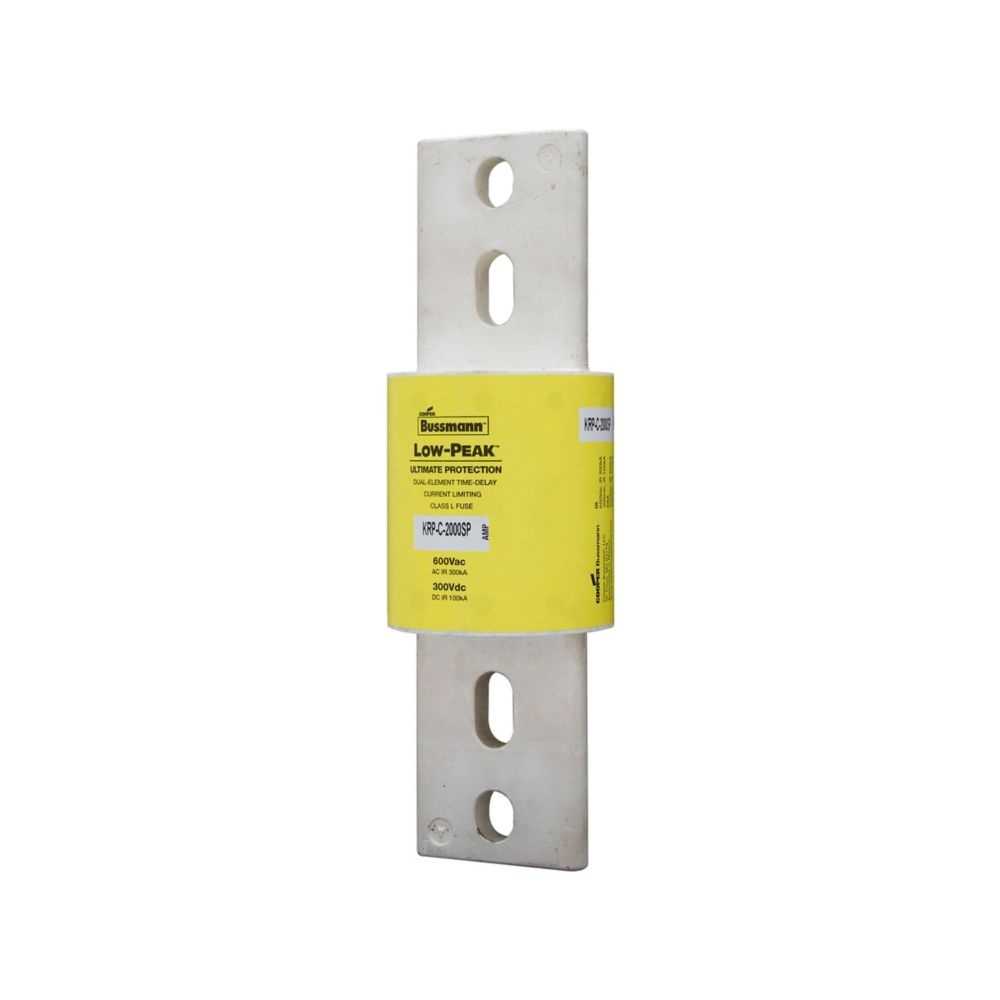

Bussmann KRP-C-2000SP Time Delay Fuse
Part Number # KRP-C-2000SP
SKU # 2290405
KRP-C-2000SP
Bussmann KRP-C-2000SP Time Delay Fuse
Part Number # KRP-C-2000SP
SKU # 2290405
Bussmann KRP-C-2000SP Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | KRP-C-2000SP |
| SKU #: | 2290405 |
| Amperage Rating: | 2000 A |
| Body Type: | Cartridge |
| Class: | L |
| Interrupt Rating: | 300/100 kAIC |
| Rejection/Non-Rejection: | Non-Rejection |
| Response Time: | 4 s at 500% |
| Series: | KRP-C |
| Terminal Type: | Bolted Blade End |
| Type: | Current Limiting Time Delay |
| Mounting type: | Bolted-On |
| UNSPSC: | 39121626 |
| UPC: | 00051712605205 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann KRP-C-2000SP Time Delay Fuse
Brand: Bussmann
Part Number: KRP-C-2000SP
Bussmann Low-Peak Fuse, Current Limiting Time Delay, Series: KRP-C, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 2000 A, 600 V AC/300 V DC, 300/100 kAIC Interrupt, Class: L, 4 s at 500% Response, Bolted Blade End Terminal, Bolted-On Mount, Cartridge Body, Dual Element, Melamine, 3-1/2 in Dia x 10-3/4 in L Body Size
Additional Description: BUSS-KRP-C-2000SP LOW-PEAK TIME-DELAY 300K
Catalog Description: Eaton Bussmann Series Class L fuse, KRP-C, time-delay, current limiting fuse, 2000 A, interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc
KRP-C-2000SP Application
Industrial Facilities and Factories, Safety and Security Systems, Large Distribution Switchboards, Large Machinery Disconnects and Power Panelboards ApplicationsKRP-C-2000SP Item Features
- Fast short circuit protection with time delay performance provide ultimate protection
- Consistent 2:1 ampacity ratios for all Low-Peak fuses make selective co-ordination easy
- Time delay for close sizing load
- Current limiting action of the fuse generally affords considerable reduction in bus bracing
- All purpose silver linked fuse for both overload and short circuit protection for high capacity systems
- O-ring seals maximize pressure build-up during current limiting action and ensure filter retention
- High grade silica sand filler accelerates response of fuse to short circuits by having quenching effect on the fuse arc
- 99.9% pure silver links provide low watt loss with low operating temperature on normal current levels and minimizes total clearing it fault energy left through
- Silver plated end bell
- https://www.youtube.com/watch?v=YMvqUyoETXk
KRP-C-2000SP Standards
CE Certified|CSA File No.53787/248.10|RoHS Compliant|UL File No.E4273 Guide JDDZSKU #2290405Part Number #KRP-C-2000SPUNSPSC39121626UPC00051712605205
Image provided may only be a representation of final product and may include optional equipment
