KTK-R-1-1/2

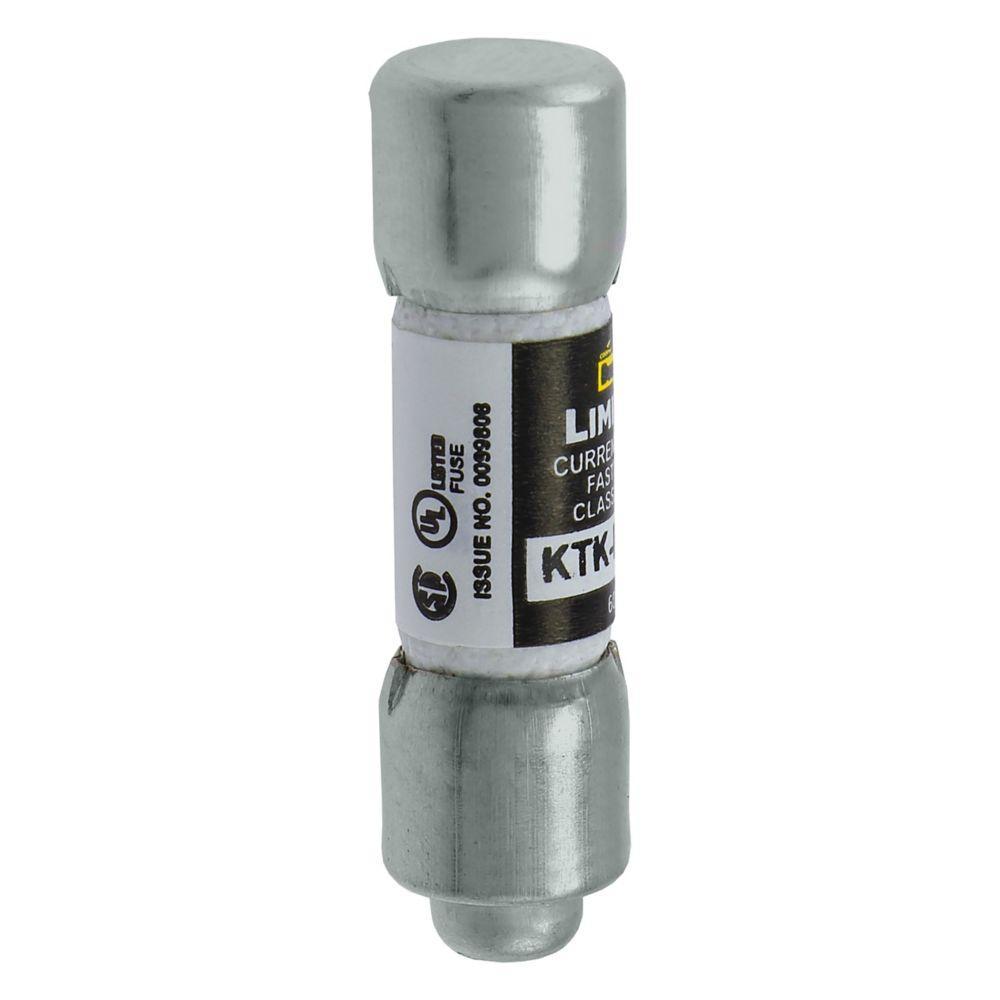

Bussmann KTK-R-1-1/2 Fast Acting Fuse
Part Number # KTK-R-1-1/2
SKU # 8059
Bussmann KTK-R-1-1/2 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | KTK-R-1-1/2 |
| SKU #: | 8059 |
| Body Type: | Cylindrical |
| Class: | CC |
| Interrupt Rating: | 200 kAIC |
| Rejection/Non-Rejection: | Rejection |
| Series: | KTK-R |
| Terminal Type: | Ferrule End |
| Type: | Current Limiting Fast Acting |
| Material: | Melamine Tube |
| Mounting type: | Holder |
| UNSPSC: | 39121606 |
| UPC: | 00051712420594 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann KTK-R-1-1/2 Fast Acting Fuse
Brand: Bussmann
Part Number: KTK-R-1-1/2
Bussmann Limitron Fuse, Current Limiting Fast Acting, Series: KTK-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 1.5 A, 600 V AC, 200 kAIC Interrupt, Class: cc, Ferrule End Terminal, Holder Mount, Cylindrical Body, Single Element, Melamine Tube, 13/32 in Dia x 1-1/2 in L Body Size
Additional Description: BUSS-KTK-R-1-1/2 CLASS CC FAST ACTING FUSE C C ACTI
Catalog Description: Eaton Bussmann Series Class CC fuse, KTK-R, fast-acting, dual-element current limiting fuse, 1.5 A, rejection style fuse, interrupting rating of 200kA at 600Vac
KTK-R-1-1/2 Application
Industrial Facilities and Factories, Safety and Security Systems, Isolated and In-Line Fuse Holders, Specialized Circuits and Branch Circuits ApplicationsKTK-R-1-1/2 Item Features
- Provides 10X better current limitation to help prevent equipment damage caused by short circuit events
- 200 kA AC rms symmetrical interrupt rating complies with NEC section 110.9 for todays large capacity systems
- Fast acting fuse helps prevent equipment damage caused by short circuit events
- Rejection type fuse fits both standard and rejection style holders
- Ideal for critical industrial or commercial applications that have specific current limitation requirements
- Nickel plated bronze end caps
- Class CC rejection feature with appropriate fuse block, prevents inserting lesser rated supplementary fuse
- https://www.youtube.com/watch?v=YMvqUyoETXk
KTK-R-1-1/2 Standards
CE Certified|CSA C22.2 File No.53787/248.4|RoHS Compliant|UL 248-14 File No.E19180 Guide JDYXSKU #8059Part Number #KTK-R-1-1/2UNSPSC39121606UPC00051712420594
