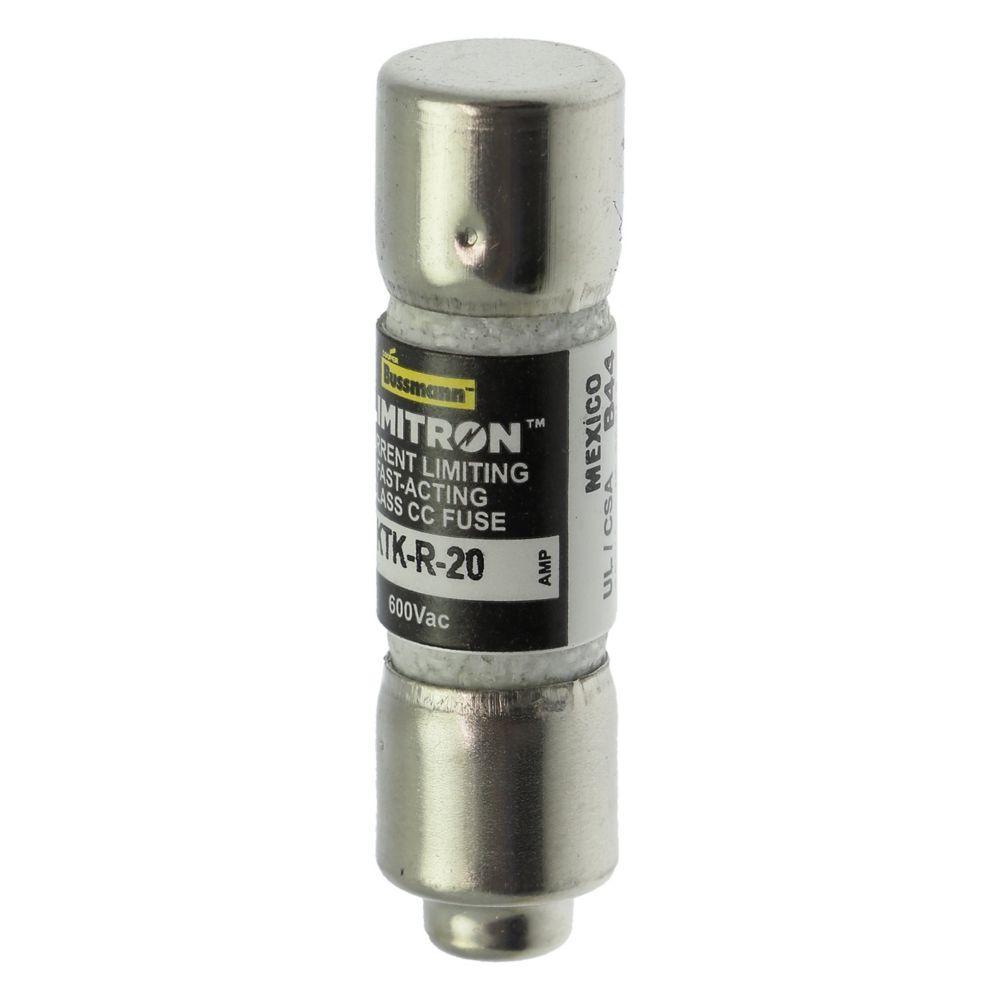

Bussmann KTK-R-20 Fast Acting Fuse
Part Number # KTK-R-20
SKU # 8065
$399.40 / 10Each
Bussmann KTK-R-20 Key Features
Brand: Bussmann
Part Number # KTK-R-20
SKU #8065
Amperage Rating: 20, 20 A
Body Type: Cylindrical
Class: CC
Indicating/Non-Indicating: Non-Indicating
Interrupt Rating: 200, 200 kAIC
Rejection/Non-Rejection: Rejection
Series: KTK-R
Terminal Type: Ferrule, Ferrule End
Type: Current Limiting Fast Acting
Voltage Rating: 600, 600 V
Country of origin: MX
Material: Melamine, Melamine Tube
Mounting type: Holder
Manufacturer Name: Eaton
UNSPSC: 39121606
UPC: 00051712420716
$399.40 / 10Each
Bussmann KTK-R-20 Fast Acting Fuse
Brand: Bussmann
Part Number: KTK-R-20
Bussmann Limitron Fuse, Current Limiting Fast Acting, Series: KTK-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 20 A, 600 V, 200 kAIC Interrupt, Class: CC, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Single Element, Melamine Tube, 13/32 in Dia x 1-1/2 in L Body Size
Additional Description: BUSS-KTK-R-20 CLASS CC FAST ACTING FUSE CLASS CC ACTING
Catalog Description: Eaton Bussmann Series Class CC fuse, KTK-R, fast-acting, dual-element current limiting fuse, 20 A, rejection style fuse, interrupting rating of 200kA at 600Vac
KTK-R-20 Application
Industrial Facilities and Factories, Safety and Security Systems, Branch Circuits, Specialized Circuits and Street Lighting ApplicationsKTK-R-20 Item Features
- Provides 10X better current limitation to help prevent equipment damage caused by short circuit events
- 200 kA AC RMS symmetrical interrupt rating complies with NEC section 110.9 for todays large capacity systems
- Fast acting fuse helps prevent equipment damage caused by short circuit events
- Rejection type fuse fits both standard and rejection style holders
- Ideal for critical industrial or commercial applications that have specific current limitation requirements
- Nickel plated bronze end caps
- Class CC rejection feature with appropriate fuse block, prevents inserting lesser rated supplementary fuse
- https://www.youtube.com/watch?v=YMvqUyoETXk
KTK-R-20 Standards
CE Certified|CSA C22.2|RoHS Compliant|UL 248-4SKU #8065Part Number #KTK-R-20UNSPSC39121606UPC00051712420716
