Part Number # KTK-R-3
SKU # 8067
KTK-R-3

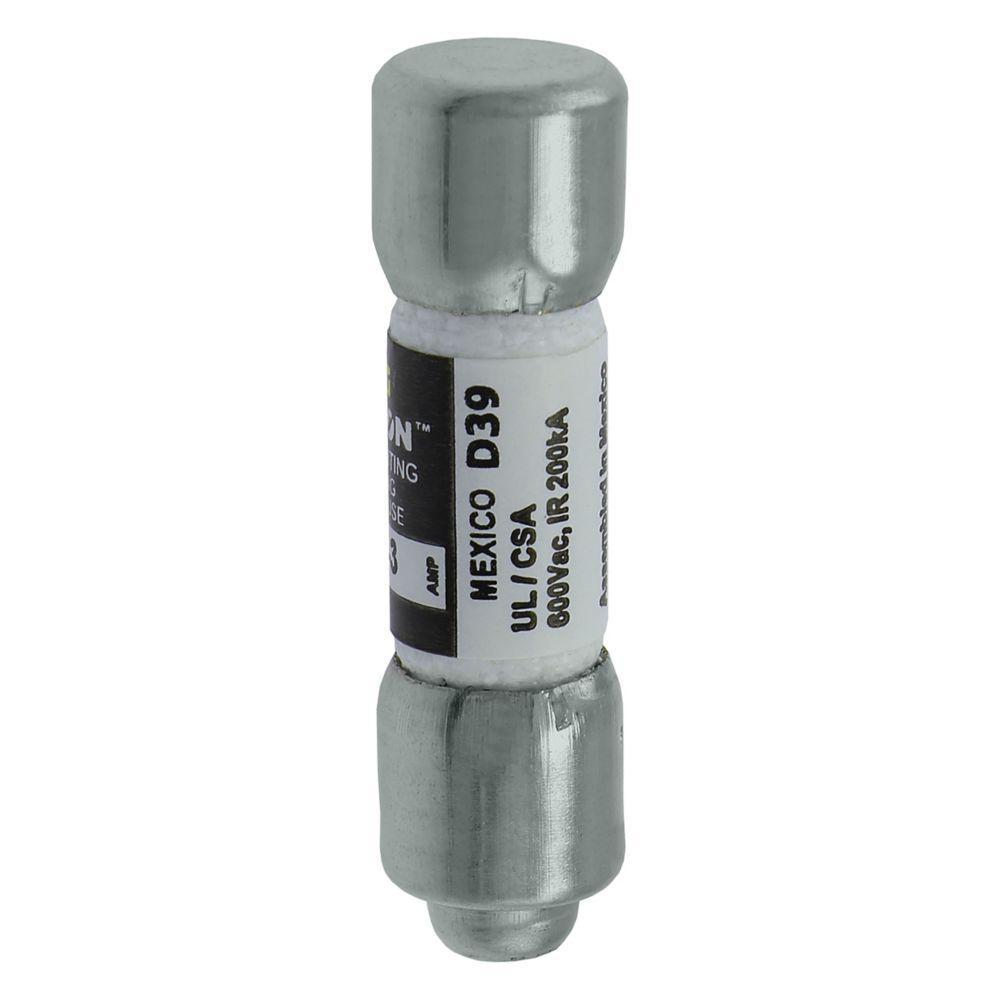

Bussmann KTK-R-3 Fast Acting Fuse
Part Number # KTK-R-3
SKU # 8067
Bussmann KTK-R-3 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | KTK-R-3 |
| SKU #: | 8067 |
| Amperage Rating: | 3 A |
| Class: | CC |
| Interrupt Rating: | 200 kA |
| Rejection/Non-Rejection: | Rejection |
| Series: | KTK-R |
| Type: | Fast Acting |
| Material: | Melamine |
| UNSPSC: | 39121606 |
| UPC: | 00051712420624 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann KTK-R-3 Fast Acting Fuse
Brand: Bussmann
Part Number: KTK-R-3
Bussmann Limitron Fuse, Fast Acting, Series: KTK-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 3 A, 600 V, 200 kA Interrupt, Class: CC, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Single Element, Melamine, 13/32 in Dia x 1-1/2 in L Body Size
Additional Description: BUSS-KTK-R-3 (N) CLASS CC FAST ACTING FUSE ACTING F
Catalog Description: Eaton Bussmann Series Class CC fuse, KTK-R, fast-acting, dual-element current limiting fuse, 3 A, rejection style fuse, interrupting rating of 200kA at 600Vac
KTK-R-3 Application
Specialized Circuits, Industrial Control, Isolated, In-Line Fuse Holders and Branch Circuits, Safety and Security SystemsKTK-R-3 Item Features
- Provides 10X better current limitation to help prevent equipment damage caused by short circuit events
- 200 kA VAC rms symmetrical interrupt rating complies with NEC section 110.9 for todays large capacity systems
- Fast acting fuse helps prevent equipment damage caused by short circuit events
- Rejection type fuse fits both standard and rejection style holders
- Ideal for critical industrial or commercial applications that have specific current limitation requirements
- Nickel plated bronze end caps
- Class CC rejection feature with appropriate fuse block, prevents inserting lesser rated supplementary fuse
- https://www.youtube.com/watch?v=YMvqUyoETXk
KTK-R-3 Standards
CE Certified|CSA C22.2 No. 248.4|CSA File No. 53787/1422-02|RoHS Compliant|UL 248-4|UL File No. E4273|UL Guide JDDZSKU #8067Part Number #KTK-R-3UNSPSC39121606UPC00051712420624
Image provided may only be a representation of final product and may include optional equipment
