- Provides 10X better current limitation to help prevent equipment damage caused by short circuit events
- 200 kA AC rms symmetrical interrupt rating complies with NEC section 110.9 for todays large capacity systems
- Fast acting fuse helps prevent equipment damage caused by short circuit events
- Rejection type fuse fits both standard and rejection style holders
- Ideal for critical industrial or commercial applications that have specific current limitation requirements
- Nickel plated bronze end caps
- Class CC rejection feature with appropriate fuse block, prevents inserting lesser rated supplementary fuse
- https://www.youtube.com/watch?v=YMvqUyoETXk
Specifications
Brand: Bussmann
Amperage Rating: 8, 8 A
Body Type: Cylindrical
Class: CC
Indicating/Non-Indicating: Non-Indicating
Interrupt Rating: 200, 200 kAIC
Rejection/Non-Rejection: Rejection
Series: KTK-R
Terminal Type: Ferrule, Ferrule End
Type: Current Limiting Fast Acting
Voltage Rating: 600, 600 V
Material: Melamine, Melamine Tube
Mounting type: Holder
Manufacturer Name: Eaton
UNSPSC: 39121606
UPC: 00051712420679

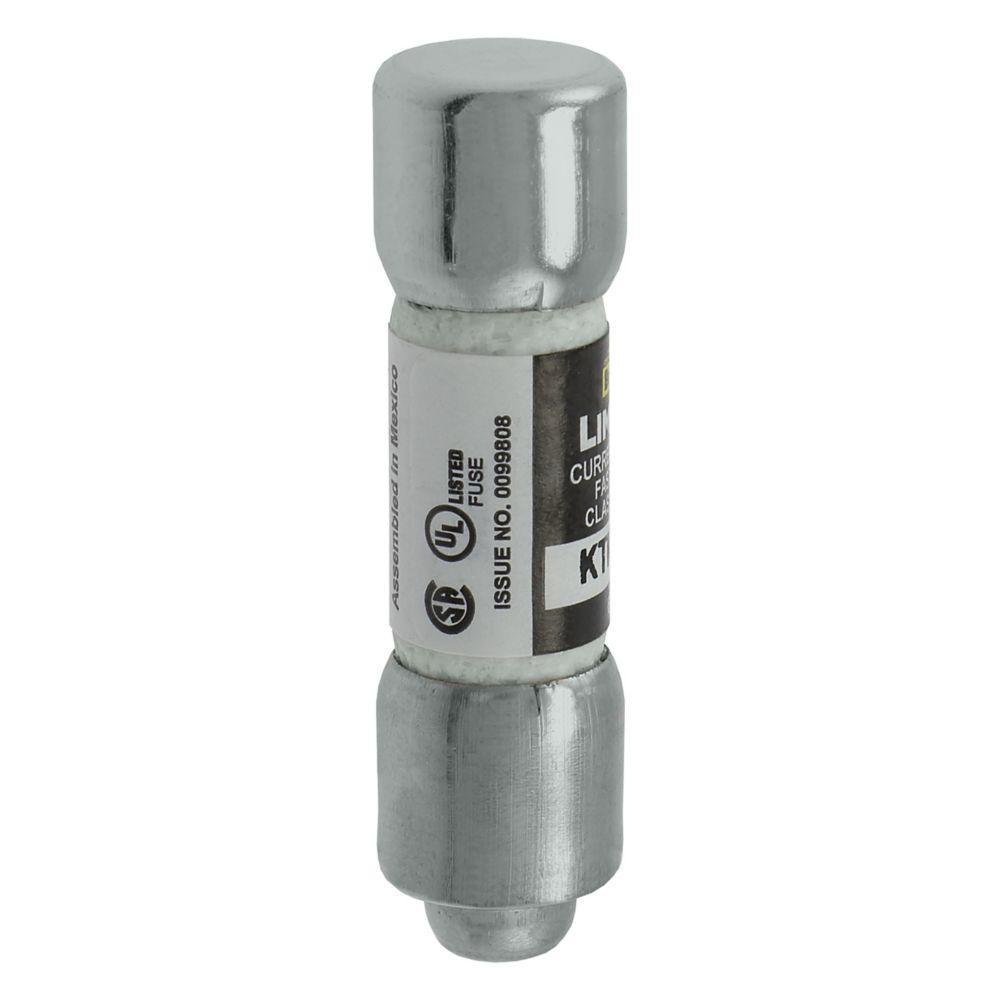

Bussmann KTK-R-8 Fast Acting Fuse
Bussmann Limitron Fuse, Current Limiting Fast Acting, Series: KTK-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 8 A, 600 V, 200 kAIC Interrupt, Class: CC, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Single Element, Melamine Tube, 13/32 in Dia x 1-1/2 in L Body Size
Additional Description: BUSS-KTK-R-8 CLASS CC FAST ACTING FUSE CLASS CC ACTING F
Catalog Description: Eaton Bussmann Series Class CC fuse, KTK-R, fast-acting, dual-element current limiting fuse, 8 Amp rejection style fuse, interrupting rating of 200kA at 600Vac
Item FeaturesIndustrial Facilities and Factories, Safety and Security Systems, Isolated and In-Line Fuse Holders, Specialized Circuits and Branch Circuits Applications
Item Features
Item FeaturesCE Certified|CSA C22.2 File No.53787/248.4|RoHS Compliant|UL 248-14 File No.E19180 Guide JDYX
