- Current limitation for non-inductive circuits provides class RK1 current limiting response to maximum ground fault and short circuit conditions
- 200 kA interrupt rating provides high ratings at all circuit locations
- Economical solutions for high fault circuits
- 70/30 brass end cap
- Melamine tube with silver fuse element
- https://www.youtube.com/watch?v=YMvqUyoETXk
Specifications
Brand: Bussmann
Amperage Rating: 250, 250 A
Body Type: Cartridge
Class: RK1
Indicating/Non-Indicating: Non-Indicating
Interrupt Rating: 200, 200 kAIC
Rejection/Non-Rejection: Rejection
Series: KTS-R
Terminal Type: Blade End
Type: Current Limiting Fast Acting Low Voltage
Voltage Rating: 600, 600 V
Material: Melamine Glass Tube
Mounting type: Holder
Manufacturer Name: Eaton
UNSPSC: 39121626
UPC: 00051712417228

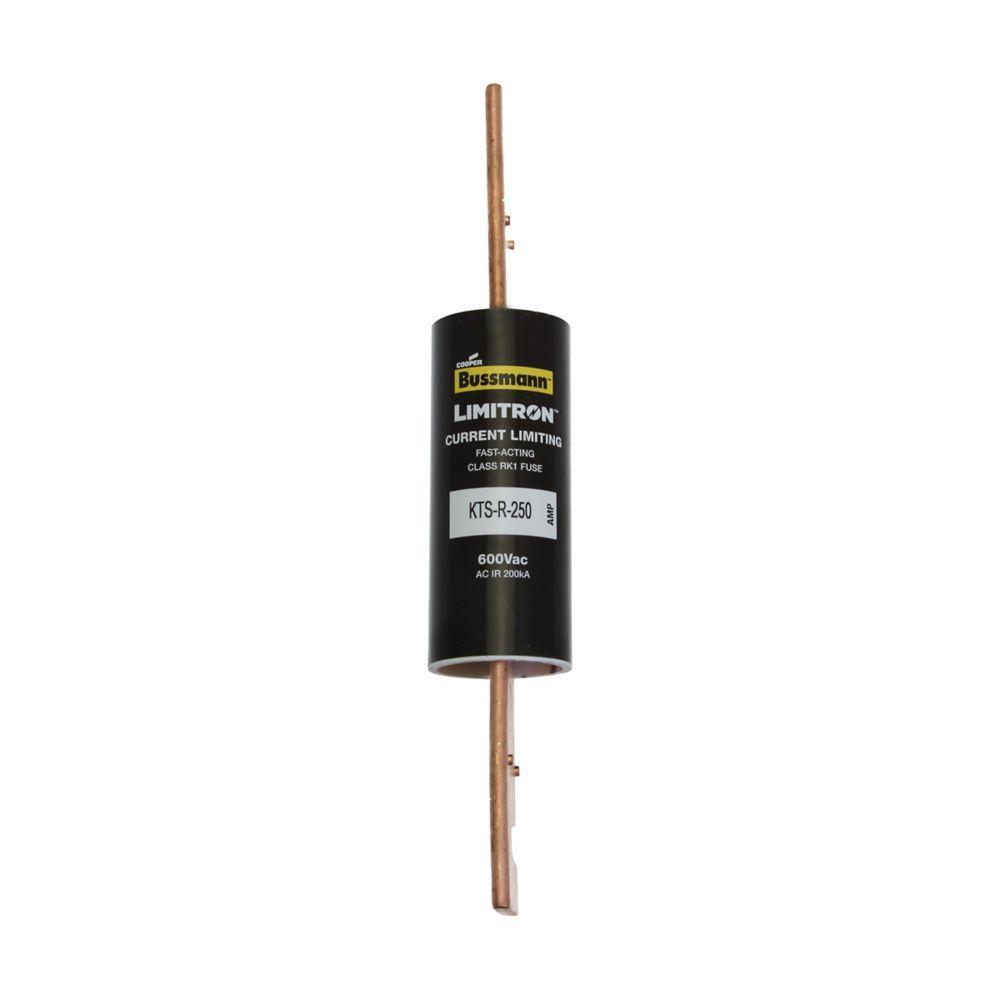

Bussmann KTS-R-250 Limitron Fuse
Bussmann Limitron Fuse, Current Limiting Fast Acting Low Voltage, Series: KTS-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 250 A, 600 V, 200 kAIC Interrupt, Class: RK1, Blade End Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine Glass Tube, 2 in Dia x 11.63 in L Body Size
Additional Description: BUSS-KTS-R-250 (N) LIMITRON FAST ACTING FUSE CLASS RK1 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann Series Class RK1 fuse, KTS-R, fast-acting, current limiting fuse, 250 A, rejection style fuse, interrupting rating of 200 kA at 600 Vac
Item FeaturesIndustrial Facilities and Factories, Safety and Security Systems and Panelboard Applications
Item Features
Item FeaturesCE Certified|CSA C22.2 File No.53787/248.12|UL 248-12 File No.E4273 Guide JDDZ
