Part Number # KTS-R-40
SKU # 2201310
KTS-R-40

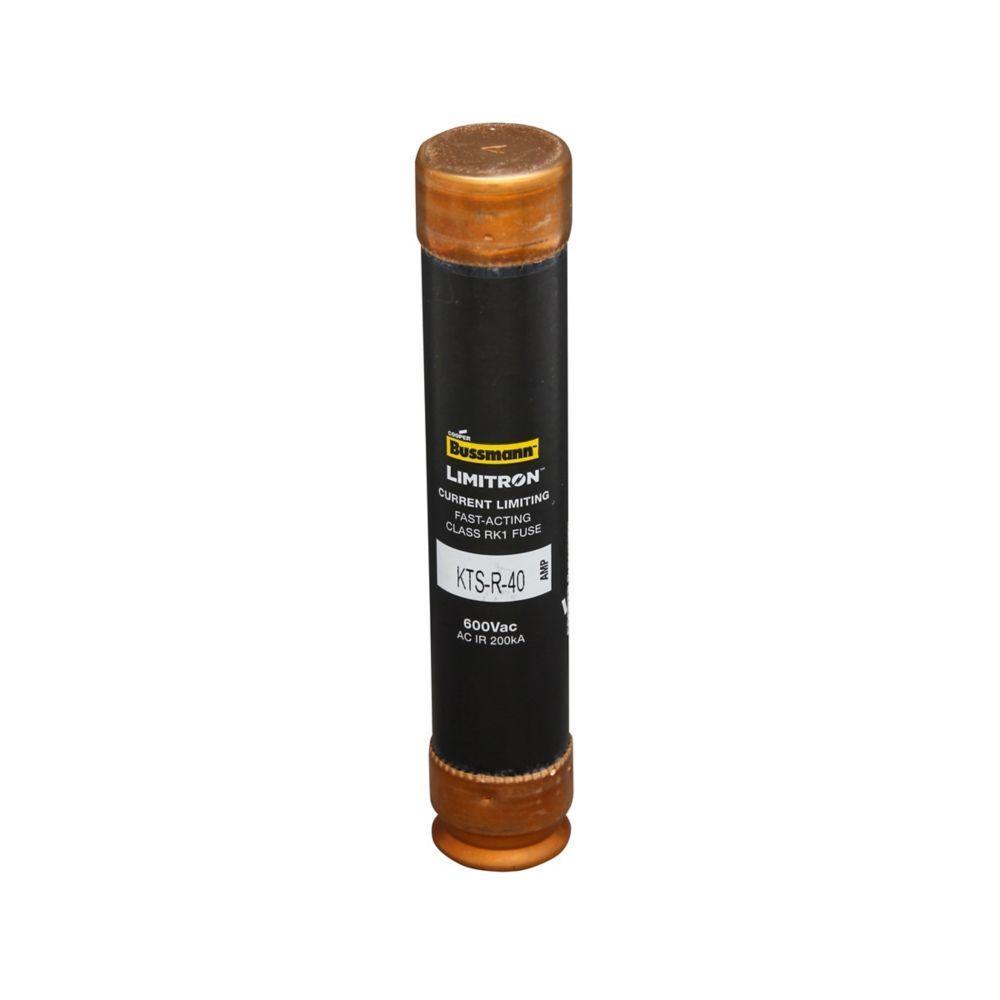

Bussmann KTS-R-40 Fast Acting Fuse
Part Number # KTS-R-40
SKU # 2201310
Bussmann KTS-R-40 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | KTS-R-40 |
| SKU #: | 2201310 |
| Amperage Rating: | 40, 40 A |
| Class: | RK1 |
| Interrupt Rating: | 200, 200 kAIC |
| Series: | KTS-R |
| Terminal Type: | Ferrule End |
| Type: | Current Limiting Fast Acting Low Voltage, Current Limiting Low Voltage |
| Material: | Melamine Glass Tube |
| UNSPSC: | 39121626 |
| UPC: | 00051712417099 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann KTS-R-40 Fast Acting Fuse
Brand: Bussmann
Part Number: KTS-R-40
Bussmann Limitron Fuse, Current Limiting Fast Acting Low Voltage, Series: KTS-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 40 A, 600 V, 200 kAIC Interrupt, Class: RK1, Ferrule End Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine Glass Tube, 1.06 in Dia x 5.5 in L Body Size
Additional Description: BUSS-KTS-R-40 (N) LIMITRON FAST ACTING FUSE CLASS RK1 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann Series Class RK1 fuse, KTS-R, fast-acting, current limiting fuse, 40 A, rejection style fuse, interrupting rating of 200 kA at 600 Vac
KTS-R-40 Application
Industrial Facilities and Factories, Safety and Security Systems and Panelboard ApplicationsKTS-R-40 Item Features
- Current limitation for non-inductive circuits provides class RK1 current limiting response to maximum ground fault and short circuit conditions
- 200 kA interrupt rating provides high ratings at all circuit locations
- Economical solutions for high fault circuits
- 70/30 brass end cap
- Melamine tube with silver fuse element
- https://www.youtube.com/watch?v=YMvqUyoETXk
KTS-R-40 Standards
CE Certified|CSA C22.2 File No.53787/248.12|UL 248-12 File No.E4273 Guide JDDZSKU #2201310Part Number #KTS-R-40UNSPSC39121626UPC00051712417099
Image provided may only be a representation of final product and may include optional equipment
