Part Number # KTU-1200
SKU # 2461217
KTU-1200
Bussmann KTU-1200
Part Number # KTU-1200
SKU # 2461217
Bussmann KTU-1200 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | KTU-1200 |
| SKU #: | 2461217 |
| Amperage Rating: | 1200 A |
| Body Type: | Cartridge |
| Class: | L |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200 kAIC |
| Rejection/Non-Rejection: | Non-Rejection |
| Series: | KTU |
| Terminal Type: | Bolted Blade End |
| Type: | Current Limiting Fast Acting |
| Country of origin: | MX |
| Material: | Melamine Glass Tube |
| Mounting type: | Bolted-On |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121626 |
| UPC: | 00051712613125 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann KTU-1200
Brand: Bussmann
Part Number: KTU-1200

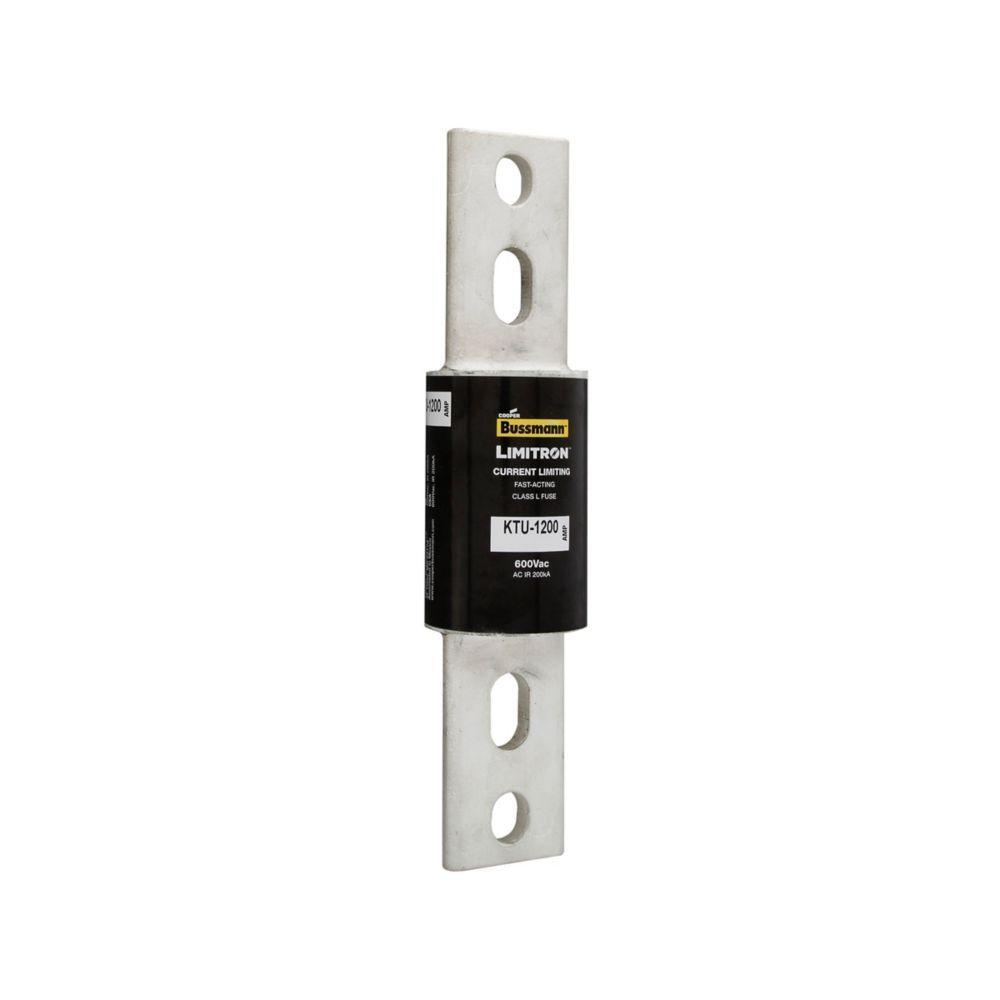

Bussmann Limitron™ Fuse, Current Limiting Fast Acting, Series: KTU, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 1200 A, 600 V, 200 kAIC Interrupt, Class: L, Bolted Blade End Terminal, Bolted-On Mount, Cartridge Body, Single Element, Melamine Glass Tube, 2-1/2 in Dia x 10-3/4 in L Body Size
Additional Description: BUSS-KTU-1200 (N) LIMITRON FAST ACTING FUSE CLASS L NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann Series Class L fuse, KTU, fast-acting, current limiting fuse, 1200 A, bladable fuse, interrupting rating of 200kA at 600Vac
KTU-1200 Application
Industrial Facilities and Factories, Safety and Security Systems, Large Distribution Switchboards and Power Panelboards ApplicationsKTU-1200 Item Features
- Provides 10X better current limitation to help prevent equipment damage caused by short circuit events
- Fast acting fuse helps prevent equipment damage caused by short circuit events
- O-ring seals maximize pressure build-up during current limiting action and ensure filter retention
- 99.9% pure silver links provide low watt loss with low operating temperature on normal current levels and minimizes total clearing it fault energy left through
- Ideal for critical industrial or commercial applications that have specific current limitation requirements
- Silver plated end bell
- https://www.youtube.com/watch?v=YMvqUyoETXk
KTU-1200 Standards
CE Marked,RoHS CompliantSKU #2461217Part Number #KTU-1200UNSPSC39121626UPC00051712613125
Image provided may only be a representation of final product and may include optional equipment
