Part Number # KTU-700
SKU # 2322760
KTU-700
Bussmann KTU-700 Fast Acting Fuse
Part Number # KTU-700
SKU # 2322760
Bussmann KTU-700 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | KTU-700 |
| SKU #: | 2322760 |
| Amperage Rating: | 700, 700 A |
| Class: | L |
| Interrupt Rating: | 200, 200 kA |
| Series: | KTU |
| Terminal Type: | Bolted Blade, Knife Blade |
| Type: | Fast Acting Current Limiting |
| Material: | Melamine Glass Tube |
| Mounting type: | Bolt-On, Bolted-On |
| UNSPSC: | 39121626 |
| UPC: | 00051712613033 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann KTU-700 Fast Acting Fuse
Brand: Bussmann
Part Number: KTU-700
Bussmann Limitron Fuse, Fast Acting Current Limiting, Series: KTU, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 700 A, 600 VAC, 200 kA Interrupt, Class: L, Bolted Blade Terminal, Bolted-On Mount, Cartridge Body, Single Element, Melamine Glass Tube, 2.5 in Dia x 8.63 in L Body Size
Additional Description: BUSS-KTU-700 (N) LIMITRON FAST ACTING FUSE CLASS L NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann Series Class L fuse, KTU, fast-acting, current limiting fuse, 750 A, bladable fuse, interrupting rating of 200kA at 600Vac
KTU-700 Application
Large Distribution Switchboards, Power Panelboards, Safety and Security SystemsKTU-700 Item Features
- Provides 10X better current limitation to help prevent equipment damage caused by short circuit events
- Fast acting fuse helps prevent equipment damage caused by short circuit events
- O-ring seals maximize pressure build-up during current-limiting action and ensure filter retention
- 99.9% pure silver links provide low watt loss with low operating temperature on normal current levels and minimizes total clearing it fault energy left through
- Ideal for critical industrial or commercial applications that have specific current limitation requirements
- Silver plate end bell
- https://www.youtube.com/watch?v=YMvqUyoETXk
KTU-700 Standards
RoHS Compliant,CE MarkedSKU #2322760Part Number #KTU-700UNSPSC39121626UPC00051712613033

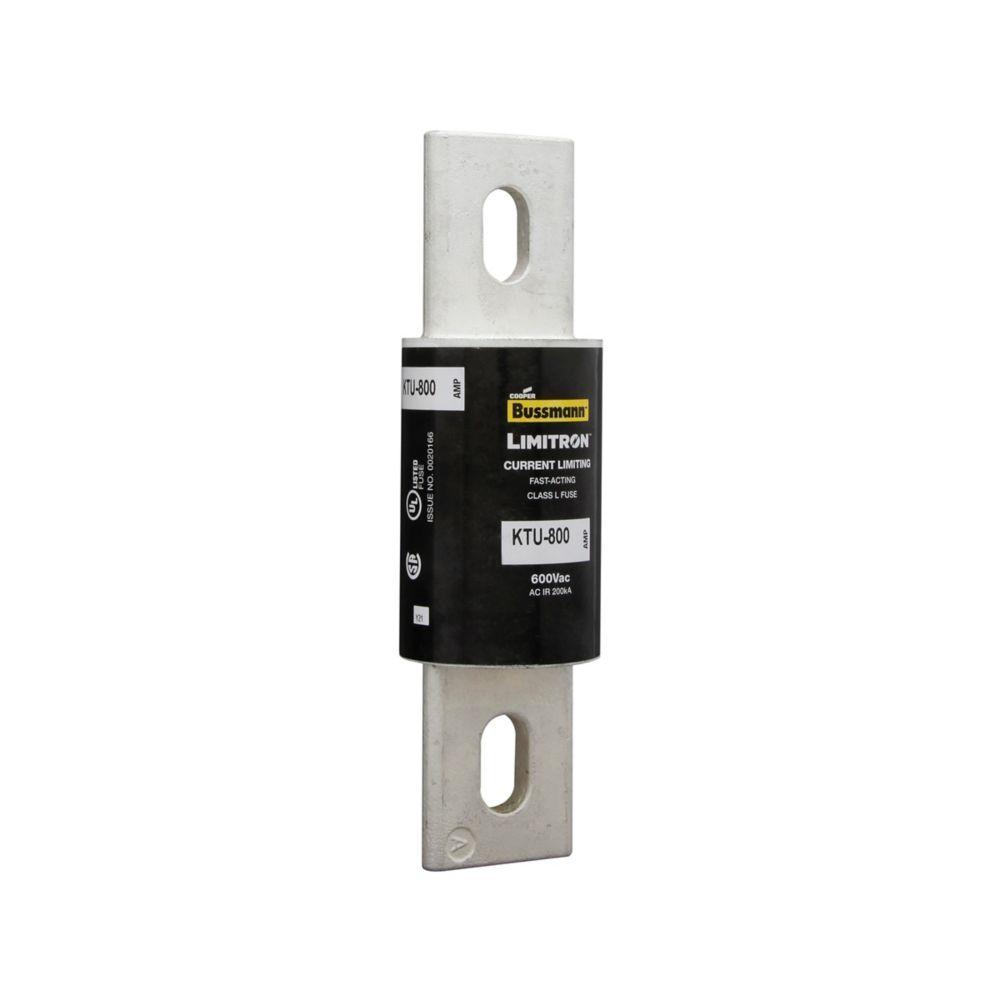

Image provided may only be a representation of final product and may include optional equipment
