Part #:LKS-30
SKU #: 2283148
$443.80/20EA
Key Features
Part #:LKS-30
SKU #: 2283148
Brand: Bussmann
Amperage Rating: 30, 30 A
Dimensions: 0.81 in Dia x 5 in L, 6.3 in L x 1.5 in W x 0.9 in H
Rated Breaking Capacity: 10000
Series: LKS
Suitable For Use With: Class H Fuse, RES-30 Class H 0.81 in Dia x 5 in L Fuse
$443.80/20EA
- Designed for easy replacement
- No multiple links to complicate replacement
- Buss super-lag renewable fuses with longer time lag than other class H fuses of this type can better sustain overloads without needlessly opening
- Super-lag fuses are used in circuits of industrial and commercial structures where maximum short circuit currents are of a low level (below 10 kA) and frequent outages dictate the economy of the "renewable" type fuse
- These fuses are generally sized at the amperage rating of non-inductive circuits and 300% for motor circuits
- https://www.youtube.com/watch?v=YMvqUyoETXk
Specifications
Brand: Bussmann
Amperage Rating: 30, 30 A
Dimensions: 0.81 in Dia x 5 in L, 6.3 in L x 1.5 in W x 0.9 in H
Rated Breaking Capacity: 10000
Series: LKS
Suitable For Use With: Class H Fuse, RES-30 Class H 0.81 in Dia x 5 in L Fuse
Type: Non-Current Limiting Renewable, Non-Current Limiting Renewable Super Lag
Voltage Rating: 600, 600 VAC
Mounting type: Stud
Manufacturer Name: Eaton
UNSPSC: 39121606
UPC: 00051712140300

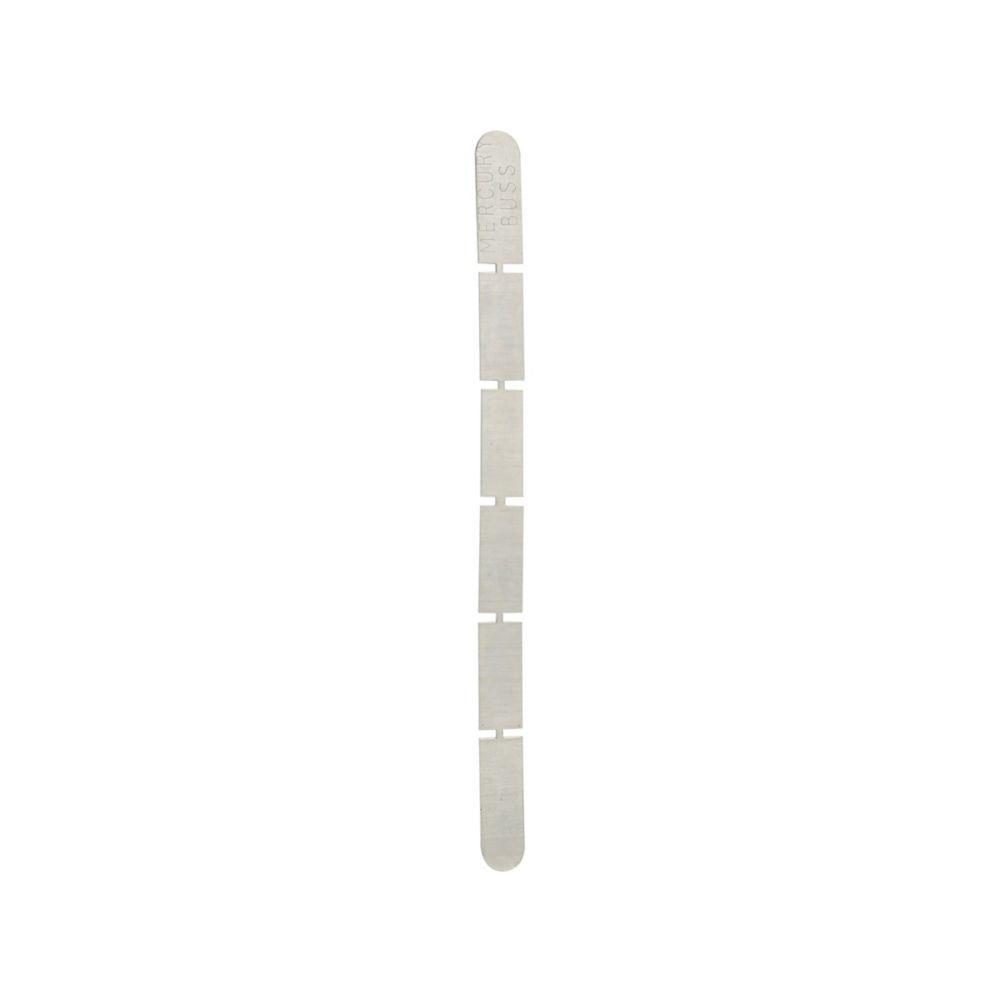

Bussmann LKS-30 Fuse Link
Bussmann Fuse Link, Non-Current Limiting Renewable Super Lag, Series: LKS, 600 VAC, 30 A, For Use With: Class H Fuse, 0.81 in Dia x 5 in L Dimensions
Additional Description: BUSS-LKS-30 SUPER LAG RENEWABLE LINK
Catalog Description: Eaton Bussmann series LKS fuse link, 600V, 30A, Class H, K5
Item Features
Item FeaturesIndustrial and Commercial Grade Structures
