LP-CC-2

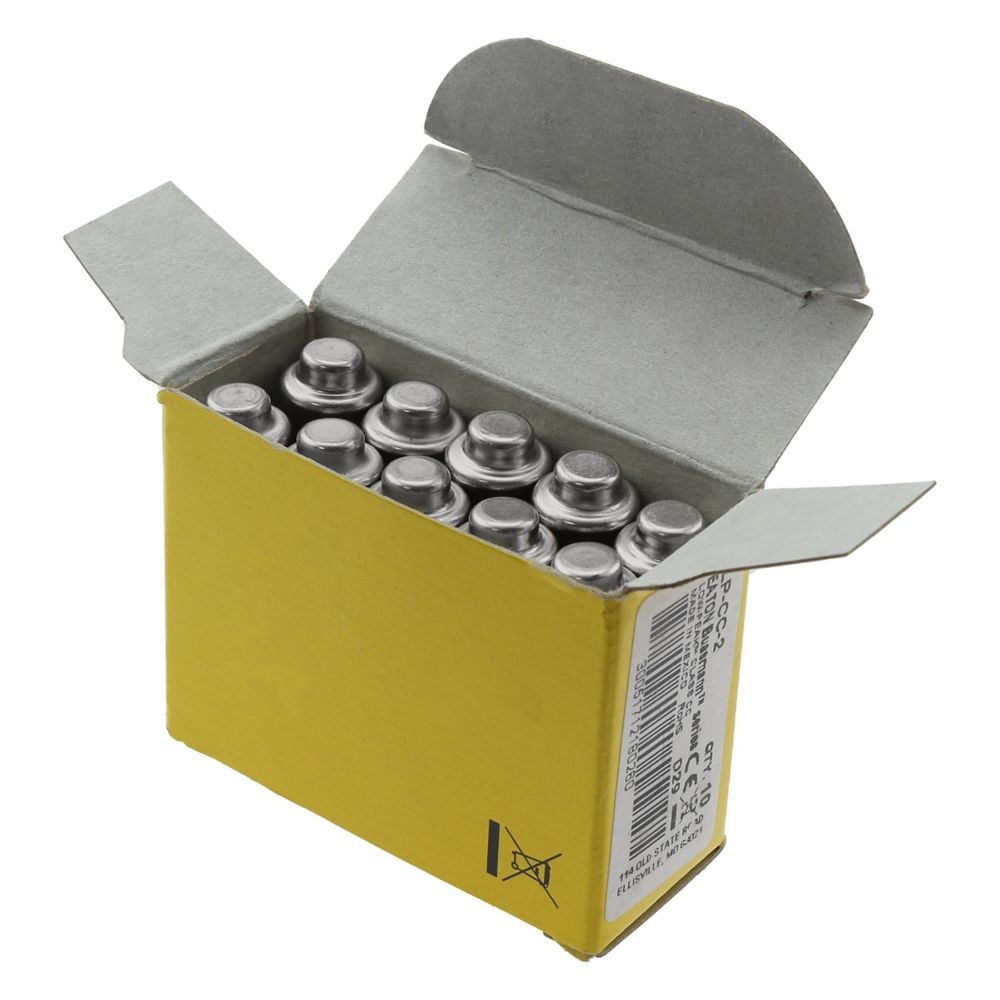

Bussmann LP-CC-2 Time Delay Fuse
Part Number # LP-CC-2
SKU # 8132
Bussmann LP-CC-2 Key Features
SKU # 8132
Part Number # LP-CC-2
Bussmann LP-CC-2 Time Delay Fuse
Brand: Bussmann
Part Number: LP-CC-2
Bussmann Low-Peak Time Delay Fuse, Current Limiting, Series: LP-CC, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 2 A, 600 VAC/300 VDC, 200 kA Interrupt, Class: CC, 12 s at 200% Response, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine, Yellow, 13/32 in Dia x 1-1/2 in L Body Size
Additional Description: BUSS-LP-CC-2 LOW PEAK CC TIME DELAY DELAY
Catalog Description: Eaton Bussmann Series Class CC fuse, LP-CC, time-delay, dual-element current limiting fuse, 2 A, rejection Style fuse, interrupting rating of 20 kA at 300 Vdc and 200 kA at 600 Vac
LP-CC-2 Application
Branch Circuits, Specialized Circuits, Industrial Control and Street Lighting (Isolated, In-Line Fuse Holder) Applications, Safety and Security SystemsLP-CC-2 Item Features
- Time delay coupled with Class CC current limiting response provides close sizing on small motor and relay circuits, and maximum component short circuit current rating protection
- 200 kA interrupting rating provides high ratings for control circuit locations
- Class CC rejection feature with appropriate fuse block, prevents inserting lesser rated supplementary fuse
- Inventory consolidation of 13/32 x 1-1/2 in supplementary fuses reduces SKU investment and minimizes potential for misapplying fuse
- Selective co-ordination ratio of 2:1 (within Low-Peak fuse family) prevents electrical shutdowns from extending beyond the failed circuit
- Finger-safe design with the Bussmann series Class CF CUBE Fuse
- https://www.youtube.com/watch?v=YMvqUyoETXk
LP-CC-2 Standards
CE Certified|CSA 1422-02/File No. 53787|RoHS Compliant|UL 248-4|UL File No. E4273|UL Guide JDDZSKU #8132Part Number #LP-CC-2UNSPSC39121606UPC00051712180269
