LP-CC-20

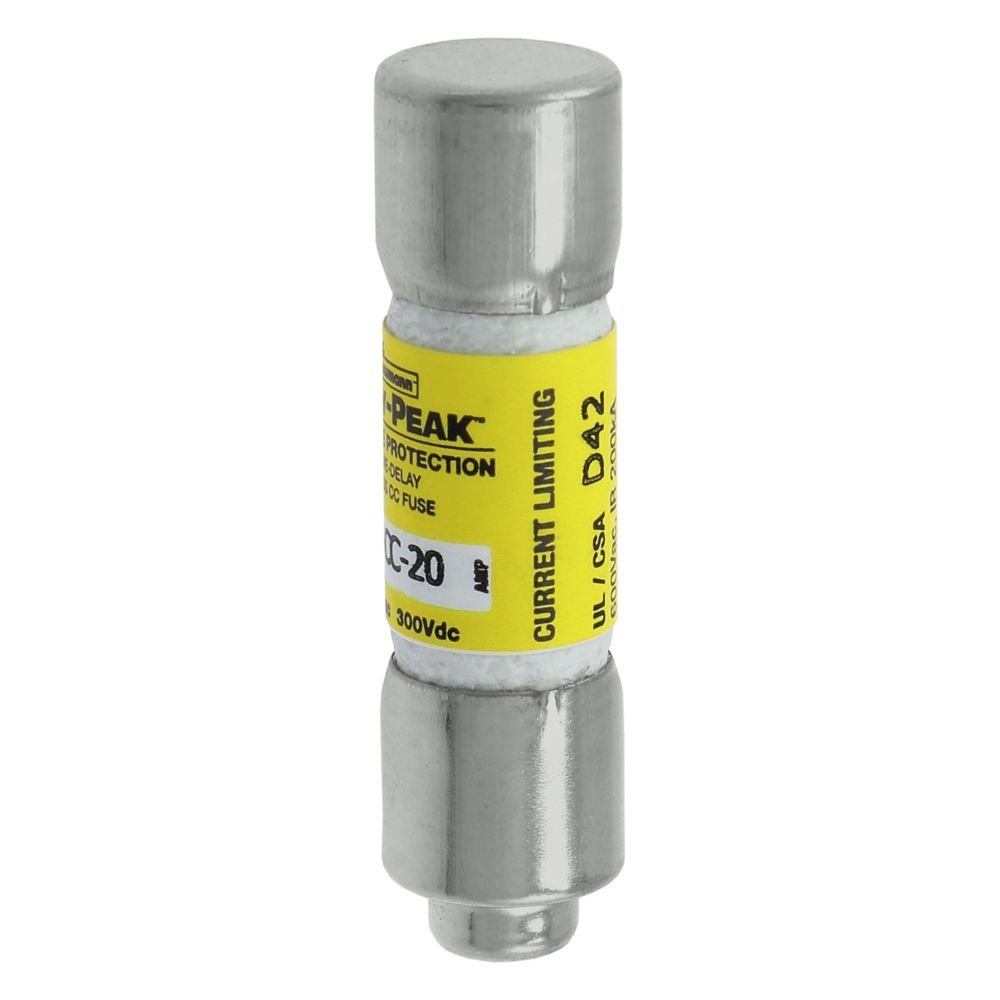

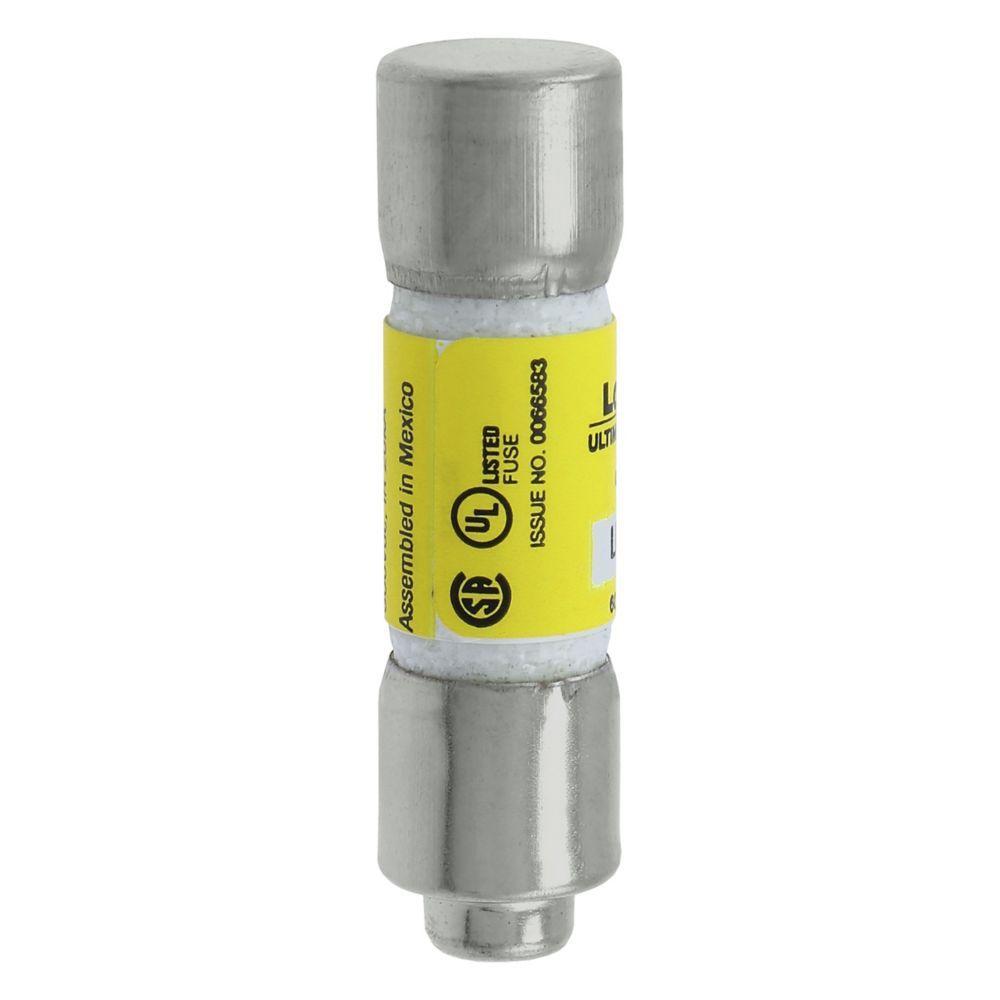

Bussmann LP-CC-20 Time Delay Fuse
Part Number # LP-CC-20
SKU # 8120
Bussmann LP-CC-20 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | LP-CC-20 |
| SKU #: | 8120 |
| Amperage Rating: | 20, 20 A |
| Body Type: | Cylindrical |
| Class: | CC |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200/20, 200/20 kAIC |
| Rejection/Non-Rejection: | Rejection |
| Response Time: | 12, 12 s at 200% |
| Series: | LP-CC |
| Terminal Type: | Ferrule, Ferrule End |
| Type: | Current Limiting, Current Limiting Time Delay |
| Material: | Melamine, Melamine Tube |
| Mounting type: | Holder |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121606 |
| UPC: | 00051712180276 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann LP-CC-20 Time Delay Fuse
Brand: Bussmann
Part Number: LP-CC-20
Bussmann Low-Peak Fuse, Current Limiting Time Delay, Series: LP-CC, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 20 A, 600 VAC/300 VDC, 200/20 kAIC Interrupt, Class: CC, 12 s at 200% Response, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine Tube, 13/32 in Dia x 1-1/2 in L Body Size
Additional Description: BUSS-LP-CC-20 LOW PEAK CC TIME DELAY DELA
Catalog Description: Eaton Bussmann Series Class CC fuse, LP-CC, time-delay, dual-element current limiting fuse, 20 A, rejection Style fuse, interrupting rating of 200 kA at 600 Vac and 20 kA at 300 Vdc
LP-CC-20 Application
Industrial Facilities and Factories, Safety and Security Systems, Branch Circuits, Specialized Circuits and Street Lighting ApplicationsLP-CC-20 Item Features
- https://www.youtube.com/watch?v=YMvqUyoETXk
LP-CC-20 Standards
CSA Certified ,UL Listed,RoHS Compliant,CE MarkedSKU #8120Part Number #LP-CC-20UNSPSC39121606UPC00051712180276
