LP-CC-6-1/4

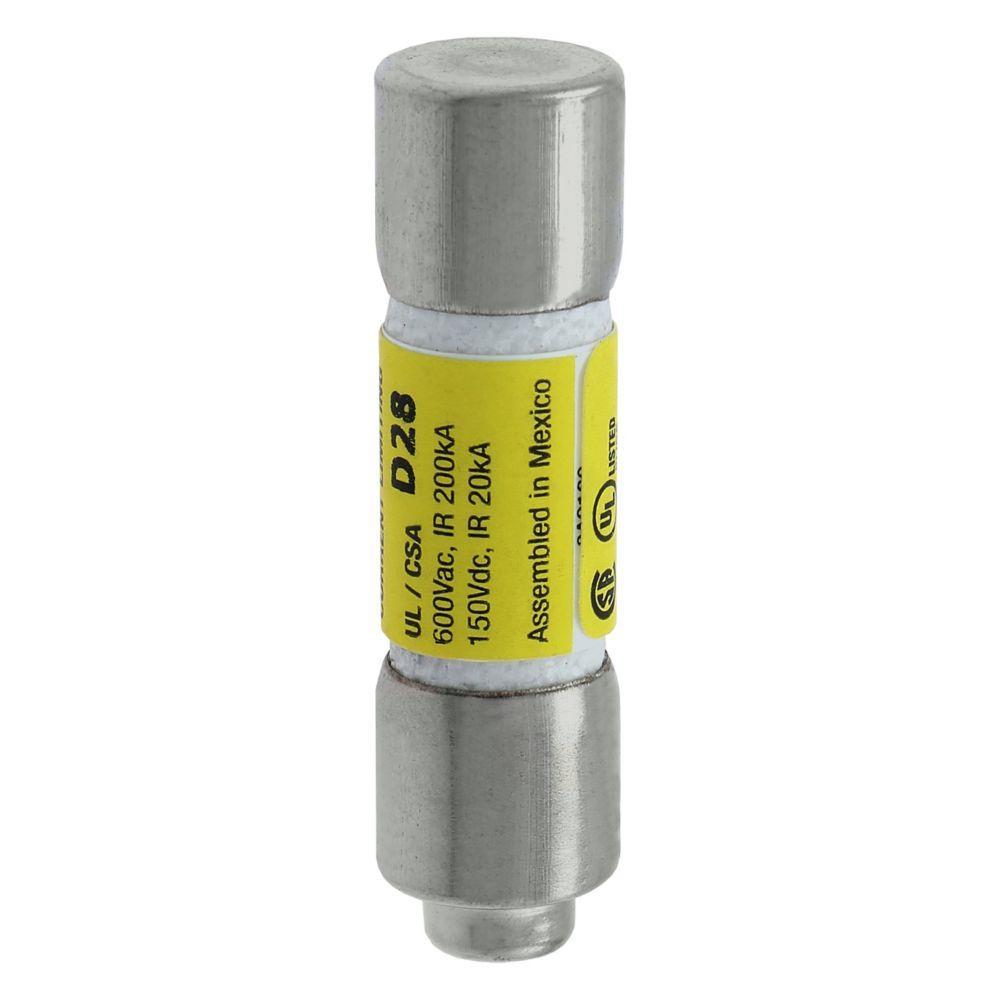

Bussmann LP-CC-6-1/4 Time Delay Fuse
Part Number # LP-CC-6-1/4
SKU # 8143
Bussmann LP-CC-6-1/4 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | LP-CC-6-1/4 |
| SKU #: | 8143 |
| Amperage Rating: | 6.25 A |
| Body Type: | Cartridge |
| Class: | CC |
| Interrupt Rating: | 200/20 kAIC |
| Rejection/Non-Rejection: | Rejection |
| Response Time: | 12 s at 200% |
| Series: | LP-CC |
| Terminal Type: | Ferrule End |
| Type: | Current Limiting Time Delay |
| Material: | Melamine Tube |
| Mounting type: | Holder |
| UNSPSC: | 39121606 |
| UPC: | 00051712180375 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann LP-CC-6-1/4 Time Delay Fuse
Brand: Bussmann
Part Number: LP-CC-6-1/4
Bussmann Low-Peak Fuse, Current Limiting Time Delay, Series: LP-CC, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 6.25 A, 600 V AC/150 V DC, 200/20 kAIC Interrupt, Class: CC, 12 s at 200% Response, Ferrule End Terminal, Holder Mount, Cartridge Body Type, Dual Element, Melamine Tube, 13/32 in Dia x 1-1/2 in L Body Size
Additional Description: BUSS-LP-CC-6-1/4 LOW PEAK CC TIME DELAY TIME D
Catalog Description: Eaton Bussmann Series Class CC fuse, LP-CC, time-delay, dual-element current limiting fuse, 6.25 A, rejection style fuse, interrupting rating of 20 kA at 150 Vdc and 200 kA at 600 Vac
LP-CC-6-1/4 Application
Industrial Facilities and Factories, Safety and Security Systems, Specialized Circuits, Isolated and In-Line Fuse Holder ApplicationsLP-CC-6-1/4 Item Features
- Fast short circuit protection and dual element, time delay performance provide ultimate protection
- Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak fuses
- Consistent 2:1 ampacity ratios for all Low-Peak fuses make selective co-ordination easy
- Time delay characteristic avoids unwanted fuse openings from surge currents while fast response speed under short circuit conditions provides a high degree of current limitation
- Current limitation protects downstream components against damaging thermal and magnetic effects of short circuit currents
- A superior, all purpose, space saving branch circuit fuse that meets most protection requirements up to 30 A
- Very compact with a physical size only 13/32 x 1-1/2 in with rejection tip
- Proper sizing can provide "no damage" type 2 co-ordinated protection for NEMA and IEC motor controllers
- Can be used where either a time delay or a fast acting fuse is needed, making selection easier and reducing spare fuse inventories for substantial cost reduction
- Superior protection for small horsepower motor circuit
- https://www.youtube.com/watch?v=YMvqUyoETXk
LP-CC-6-1/4 Standards
CE Certified|CSA File No.53787|NEC 110.9|RoHS Compliant|UL 248-4 File No.E4273 Guide JDDZSKU #8143Part Number #LP-CC-6-1/4UNSPSC39121606UPC00051712180375
