Part Number # LP-CC-7
SKU # 8145
LP-CC-7
Bussmann LP-CC-7 Time Delay Fuse
Part Number # LP-CC-7
SKU # 8145
Bussmann LP-CC-7 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | LP-CC-7 |
| SKU #: | 8145 |
| Amperage Rating: | 7, 7 A |
| Class: | CC |
| Interrupt Rating: | 20/200 |
| Response Time: | 12, 12 s at 200% |
| Series: | LP-CC |
| UNSPSC: | 39121606 |
| UPC: | 00051712180528 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann LP-CC-7 Time Delay Fuse
Brand: Bussmann
Part Number: LP-CC-7
Bussmann Low-Peak Time Delay Fuse, Current Limiting, Series: LP-CC, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 7 A, 600 VAC/150 VDC, 20/200 kA Interrupt, Class: CC, 12 s at 200% Response, Ferrule Terminal, Holder Mount, Cartridge Body Type, Dual Element, Melamine, 13/32 in Dia x 1-1/2 in L Body Size
Additional Description: BUSS-LP-CC-7 LOW PEAK CC TIME DELAY
Catalog Description: Eaton Bussmann Series Class CC fuse, LP-CC, time-delay, dual-element current limiting fuse, 7 A, rejection style fuse, interrupting rating of 20 kA at 150 Vdc and 200 kA at 600 Vac
LP-CC-7 Application
Specialized Circuits, Industrial Control, Isolated and In-Line Fuse Holder, Safety and Security SystemsLP-CC-7 Item Features
- 200 kA interrupting rating complies with NEC section 110.9 for todays large capacity systems
- Fast short circuit protection and dual element, time delay performance provide ultimate protection
- Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak fuses
- Consistent 2:1 ampacity ratios for all Low-Peak fuses make selective co-ordination easy
- Time delay characteristic avoids unwanted fuse openings from surge currents while fast response speed under short circuit conditions provides a high degree of current limitation
- Current limitation protects downstream components against damaging thermal and magnetic effects of short circuit currents
- A superior, all purpose, space saving branch circuit fuse that meets most protection requirements up to 30 A
- Very compact, with a physical size only 13/32 x 1-1/2 in with rejection tip
- Proper sizing can provide "no damage" type 2 motor starter protection for NEMA and IEC motor controllers
- Can be used where either a time delay or a fast acting fuse is needed, making selection easier and reducing spare fuse inventories for substantial cost reduction
- Superior protection for small horsepower motor circuit
- 12 s minimum at 200% of rated current response time
- 200 kA at 600 VAC rms symmetrical, 20 kA at 150 VDC interrupt rating
- https://www.youtube.com/watch?v=YMvqUyoETXk
LP-CC-7 Standards
UL Listed ,CSA Certified,CE Marked,RoHS CompliantSKU #8145Part Number #LP-CC-7UNSPSC39121606UPC00051712180528

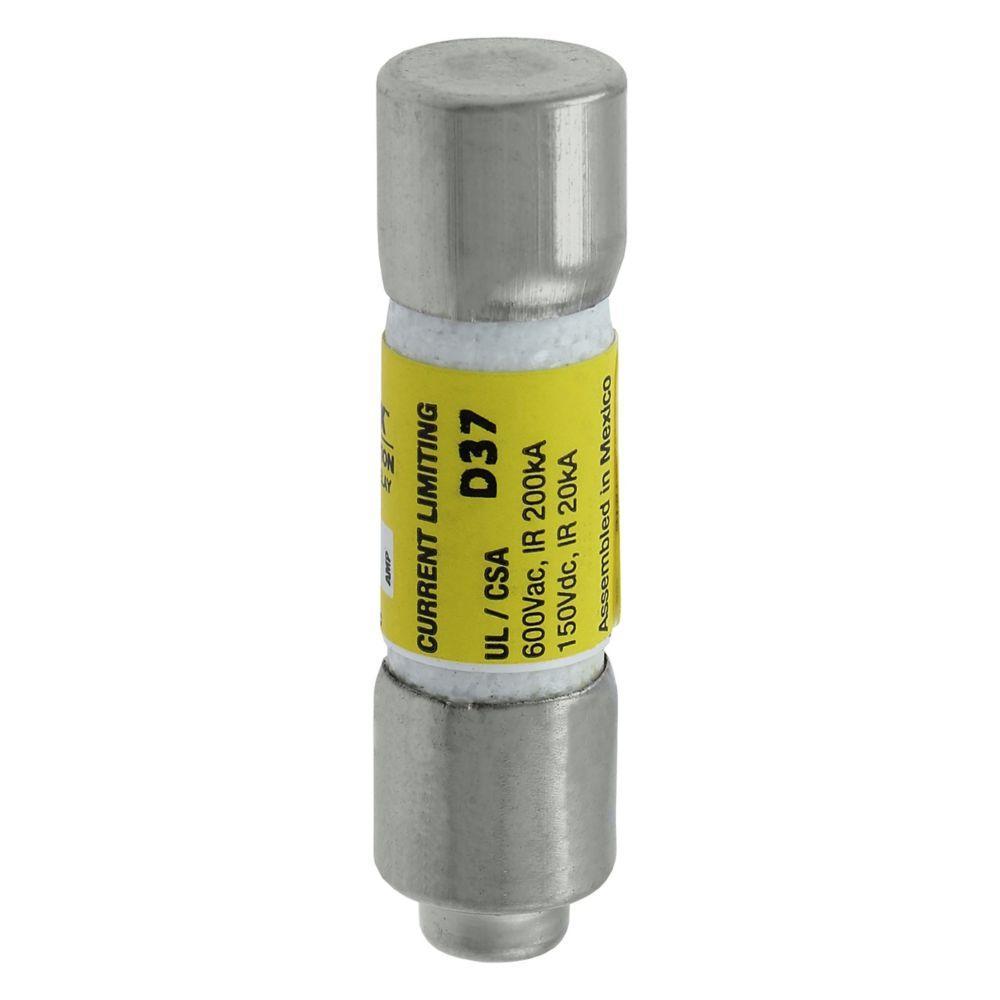

Image provided may only be a representation of final product and may include optional equipment
